中國電信與谷歌和華為Mate50蘋果iPhone14衛星通信通話SG5032VAN愛普生晶振X1G004261007100
谷歌或通過Android14大版本更新引入對衛星連接功能的支持,或許也是嘗試性的.畢竟谷歌只做平臺,具體的硬件和通信運營需要業界支持.
從華為在Mate50上搶先發布衛星通信功能這一動作來看,愛普生晶振似乎他們也判斷蘋果不會馬上推出衛星通信功能.
在衛星通信功能方面華為已經搶先一步推出了短報文功能,雖然不能打電話,也不能上網.但對于野外探險以及特殊需求的市場來說是非常有用的,對于衛星通信的發展也是一大進步.
如果蘋果在歐美推出衛星通信功能,而不在中國市場提供,那可能會影響其在中國市場的形象和地位.因此推測iPhone14仍然推出完善的衛星通話功能.

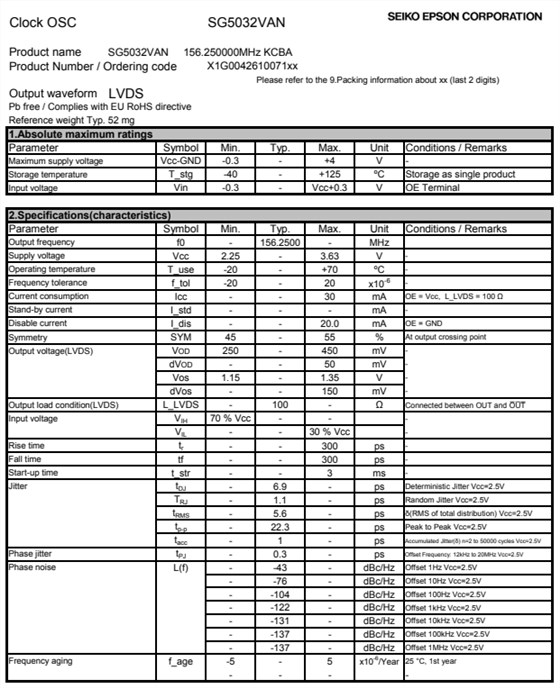

SG5032VAN愛普生晶振X1G004261007100,華為Mate50蘋果iPhone14衛星通信差分晶振
| 愛普生有源晶振編碼 | 型號 | 頻率 | 長X寬X高 | 輸出波 | 電源電壓 | 工作溫度 | 頻差 |
| X1G004261006900 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -20to70°C | +/-20ppm |
| X1G004261007100 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -20to70°C | +/-20ppm |
| X1G004261010200 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261010700 | SG5032VAN | 153.600000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261011400 | SG5032VAN | 78.125000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261011900 | SG5032VAN | 120.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012100 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012600 | SG5032VAN | 133.333300MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012800 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012900 | SG5032VAN | 135.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013100 | SG5032VAN | 322.265625MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013300 | SG5032VAN | 230.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261013500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013600 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013800 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -20to70°C | +/-20ppm |
| X1G004261014100 | SG5032VAN | 161.132812MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261014300 | SG5032VAN | 625.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004271000100 | SG5032EAN | 125.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271000400 | SG5032EAN | 100.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271001200 | SG5032EAN | 150.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271001300 | SG5032EAN | 155.520000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271001400 | SG5032EAN | 156.250000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271002000 | SG5032EAN | 125.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004271003300 | SG5032EAN | 156.250000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-30ppm |
對于蘋果公司來說,推出一項新的功能勢必是全球性的,或者說能在全球大部分范圍內都能使用的功能.因此具有上網功能的衛星通信服務或許離我們還有一段距離.
SG5032VAN愛普生晶振X1G004261007100,華為Mate50蘋果iPhone14衛星通信差分晶振
