不同顏色蘋果手機iPhone14系列維修碎屏價格與SG-8101CGA愛普生X1G005171008000

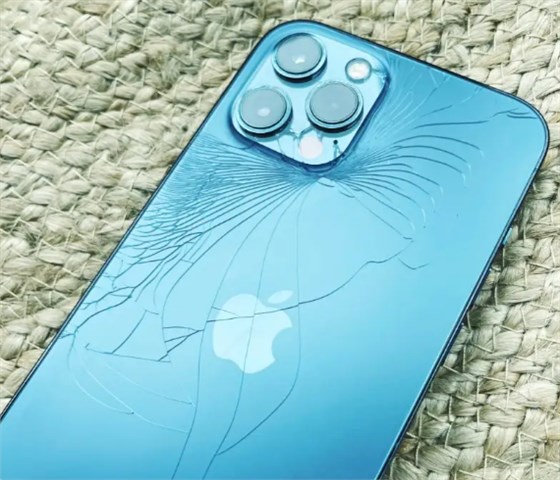

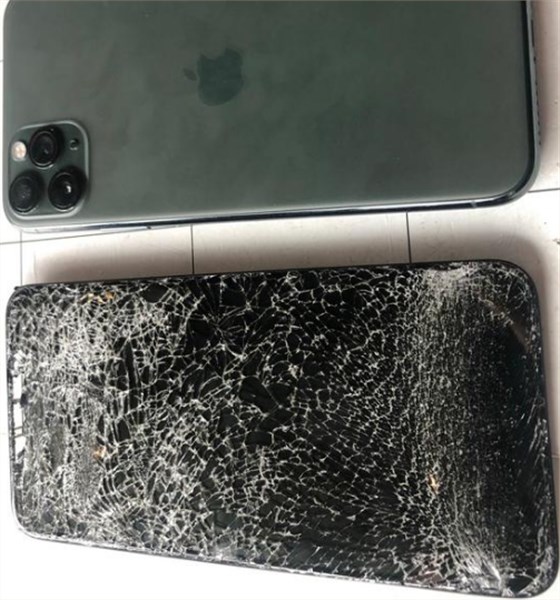

蘋果iPhone14/Pro系列的官方保外維修價格出爐了,由于可單獨拆卸iPhone14系列的玻璃背板維修價格比iPhone14Pro系列要便宜得多.iPhone14標準版：1298元iPhone14Plus：1548元iPhone14Pro：3598元iPhone14ProMax：3998元主板上、愛普生貼片晶振顯示屏下都加了散熱,拆解顯示取下屏幕就已經可以看到新iPhone的大部分內部組件,打眼一看大多數組件的布局看起來與iPhone13ProMax很相似.有一個大的L型電池,左邊是邏輯板,上面印有A16Bionic字樣.

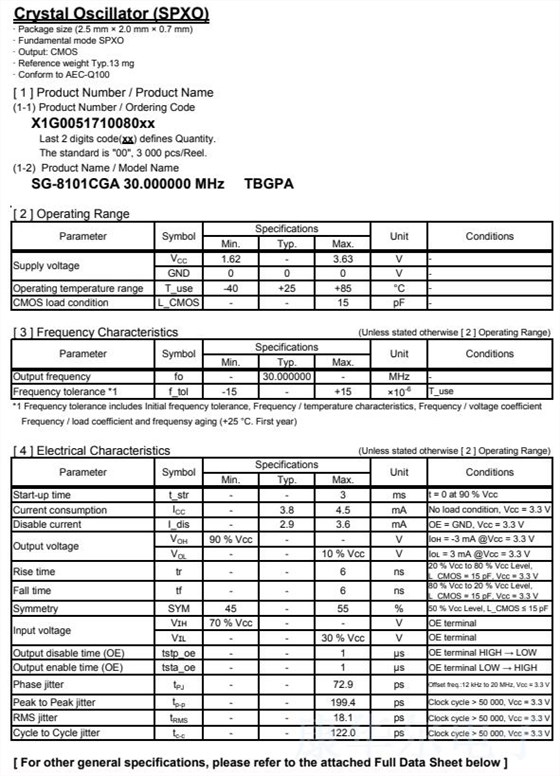

蘋果手機iPhone14有源晶振,SG-8101CGA愛普生X1G005171008000晶振

愛普生有源晶振編碼	型號	頻率	長X寬X高	輸出波	電源電壓	工作溫度	頻差	最大值
X1G005171007900	SG-8101CGA	135.700000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤8.2mA
X1G005171008000	SG-8101CGA	30.000000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to85°C	+/-15ppm	≤4.5mA
X1G005171008100	SG-8101CGA	24.576000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to125°C	+/-50ppm	≤4.5mA
X1G005171008200	SG-8101CGA	150.200000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤8.2mA
X1G005171008300	SG-8101CGA	150.800000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤8.2mA
X1G005171008400	SG-8101CGA	1.843200MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to125°C	+/-50ppm	≤3.6mA
X1G005171008500	SG-8101CGA	47.684000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤4.5mA
X1G005171008600	SG-8101CGA	9.900000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to125°C	+/-50ppm	≤3.6mA
X1G005171008700	SG-8101CGA	19.200000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤3.6mA
X1G005171008800	SG-8101CGA	140.500000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤8.2mA
X1G005171008900	SG-8101CGA	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to85°C	+/-15ppm	≤3.6mA
X1G005171009100	SG-8101CGA	88.200000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤6.1mA
X1G005171009200	SG-8101CGA	33.000000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤4.5mA
X1G005171009300	SG-8101CGA	27.000000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to125°C	+/-50ppm	≤4.5mA
X1G005171009400	SG-8101CGA	89.600000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤6.1mA
X1G005171009500	SG-8101CGA	58.100000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤5.3mA
X1G005171009600	SG-8101CGA	89.400000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤6.1mA
X1G005171009700	SG-8101CGA	26.000000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤4.5mA
X1G005171009800	SG-8101CGA	22.579200MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to125°C	+/-50ppm	≤4.5mA
X1G005171009900	SG-8101CGA	19.200000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to125°C	+/-50ppm	≤3.6mA
X1G005171010000	SG-8101CGA	18.000000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to125°C	+/-50ppm	≤3.6mA
X1G005171010100	SG-8101CGA	29.291200MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to125°C	+/-50ppm	≤4.5mA
X1G005171010200	SG-8101CGA	136.400000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤8.2mA
X1G005171010300	SG-8101CGA	66.000000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to105°C	+/-20ppm	≤5.3mA
X1G005171010400	SG-8101CGA	8.000000MHz	2.50x2.00x0.80mm	CMOS	1.620to3.630V	-40to125°C	+/-50ppm	≤3.6mA
