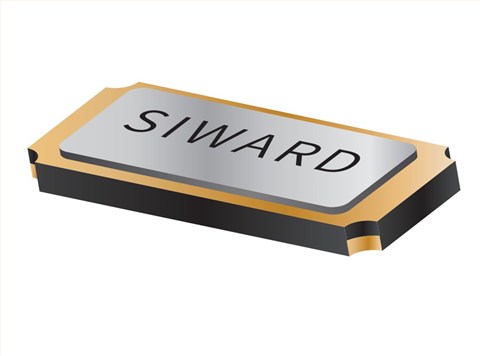

3215mm,XTL721-S999-286,32.768kHz,XTL72,Siward音叉晶振，臺灣Siward晶振，希華晶振，產品編碼為：XTL721-S999-286，型號：XTL72，頻率：32.768KHz，負載：12.5pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x1.5x0.9mm封裝，音叉表晶，兩腳貼片晶振，石英晶振，無源晶振，3215晶振，石英晶體諧振器，SMD晶振。具有超小型晶振，輕薄型晶振，高性能晶振，高可靠性晶振，高品質晶振，耐熱及耐環境等特點。被廣泛應用于：通訊設備晶振，無線藍牙晶振、DVBH、無線局域網晶振，數碼電子晶振，鐘表電子晶振，智能儀表晶振等應用。
3215mm,XTL721-S999-286,32.768kHz,XTL72,Siward音叉晶振，產品特點：
超薄/尺寸：3.2×1.5×0.9mm
采用真空密封件，可靠性高
良好的抗沖擊性和耐熱性

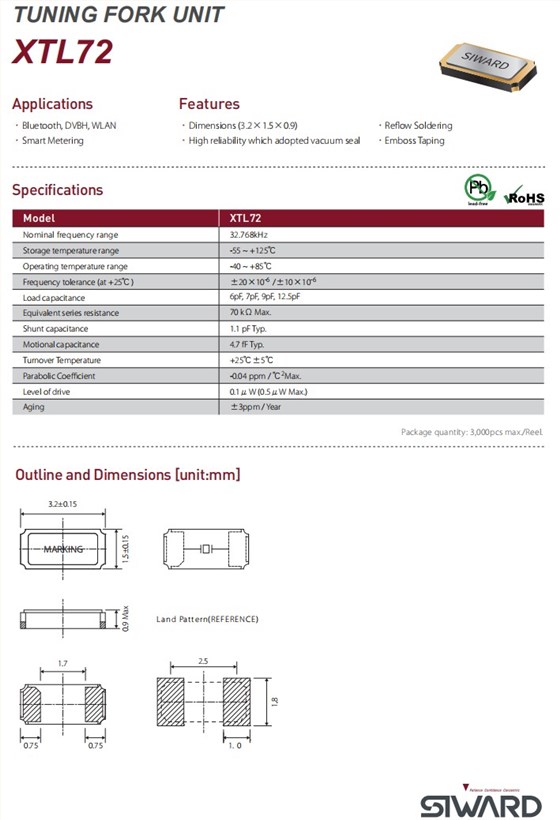

3215mm,XTL721-S999-286,32.768kHz,XTL72,Siward音叉晶振,參數表
| Model | XTL72 | |||||||||||||
| Nominal frequency range | 32.768kHz | |||||||||||||
| Storage temperature range | -55 ~ +125℃ | |||||||||||||
| Operating temperature range | -40 ~ +85℃ | |||||||||||||
| Frequency tolerance (at +25℃) | ±20×10-6/±10×10-6 | |||||||||||||
| Load capacitance | 6pF, 7pF, 9pF, 12.5pF | |||||||||||||
| Equivalent series resistance | 70 kΩMax. | |||||||||||||
| Shunt capacitance | 1.1 pF Typ. | |||||||||||||
| Motional capacitance | 4.7 fF Typ. | |||||||||||||
| Turnover Temperature | +25℃±5℃ | |||||||||||||
| Parabolic Coecient | -0.04 ppm /℃2Max. | |||||||||||||
| Level of drive | 0.1μW (0.5μW Max.) | |||||||||||||
| Aging |
±3ppm / Year |
|||||||||||||

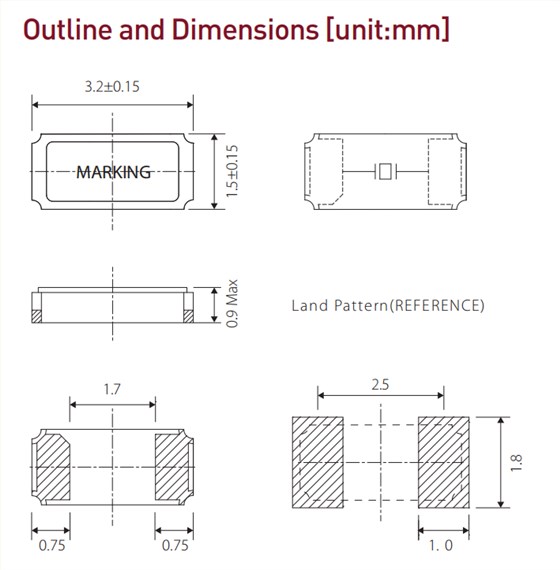

3215mm,XTL721-S999-286,32.768kHz,XTL72,Siward音叉晶振,尺寸圖
