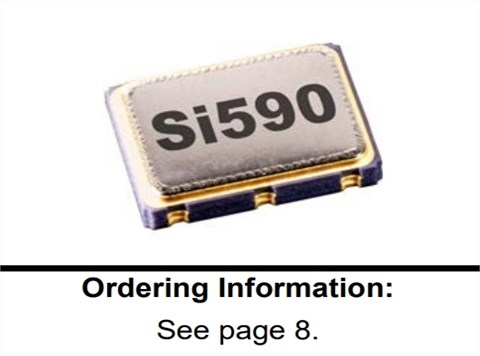

Si591網絡晶振,Silicon振蕩器,591BB300M000DG,3.3V,7050mm,300MHZ,歐美有源晶振,有源貼片振蕩器,六腳有源晶振,OSC貼片振蕩器,7050mm有源晶振,300MHZ晶體振蕩器,時鐘晶體振蕩器,尺寸7.0×5.0mm,頻率300MHZ,電壓3.3V,頻率穩定性±25ppm,無鉛晶振,高品質晶振,低電壓晶振,智能家居晶振,低損耗晶振,低相位晶振,低耗能晶振,測試設備晶振,網絡晶振,6G基站晶振,無線模塊晶振,多媒體設備晶振.

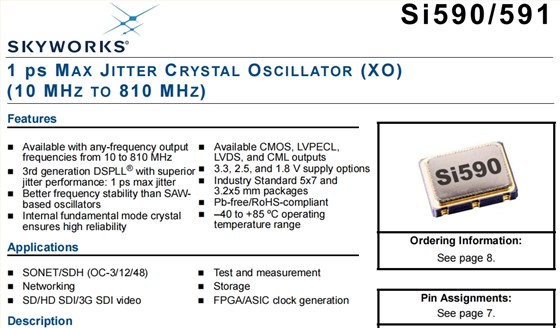

Si591網絡晶振,Silicon振蕩器,591BB300M000DG,3.3V,7050mm,300MHZ特點:
可用于任何頻率輸出頻率從10到810兆赫
具有卓越性能的第三代DSPLL®抖動性能：最大抖動1 ps
比基于SAW的時鐘晶體振蕩器具有更好的頻率穩定性.,內部基模晶體確保高可靠性
可用的CMOS、LVPECL、LVDS和CML輸出
3.3、2.5和1.8 V電源選項,行業標準5x7和3.2x5 mm包裝
無鉛/符合RoHS,–40至+85ºC運行溫度范圍
Si591網絡晶振,Silicon振蕩器,591BB300M000DG,3.3V,7050mm,300MHZ 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | |||||||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | |||||||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
— — — — |
110 100 90 80 |
125 110 100 90 |
mA | ||||||||||||||||||||
| Tristate mode | — | 60 | 75 | |||||||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x VDD | — | — | V | |||||||||||||||||||||
| VIL | — | — | 0.5 | |||||||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | ºC | |||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Nominal Frequency1,2 | fO | LVPECL/LVDS/CML |
|
— | 810 | MHz | ||||||||||||||||||||
| CMOS |
|
156.25 |
|
|||||||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||||||
| Total Stability | Note 3, second option code “D” | ±20 | ppm | |||||||||||||||||||||||
| Note 3, second option code “C” | ±30 | ppm | ||||||||||||||||||||||||
| Note 4, second option code “B” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Note 4, second option code “A” | — | — | ±100 | ppm | ||||||||||||||||||||||
| Temperature Stability | second option code “D” | — | — | ±7 | ppm | |||||||||||||||||||||
| second option code “C” | ±20 | ppm | ||||||||||||||||||||||||
| second option code “B” | ±25 | ppm | ||||||||||||||||||||||||
| second option code “A” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Powerup Time5 | tOSC | — | — | 10 | ms | |||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
| Nominal Frequency1,2 | fO | LVPECL/LVDS/CML | 10 | — | 810 | MHz | ||||||||||||||||||||
| CMOS | 10 | — | 160 | |||||||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||||||
| Total Stability | Note 3, second option code “D” | ±20 | ppm | |||||||||||||||||||||||
| Note 3, second option code “C” | ±30 | ppm | ||||||||||||||||||||||||
| Note 4, second option code “B” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Note 4, second option code “A” | — | — | ±100 | ppm | ||||||||||||||||||||||
| Temperature Stability | second option code “D” | — | — | ±7 | ppm | |||||||||||||||||||||
| second option code “C” | ±20 | ppm | ||||||||||||||||||||||||
| second option code “B” | ±25 | ppm | ||||||||||||||||||||||||
| second option code “A” | — | — | ±50 | ppm | ||||||||||||||||||||||
| Powerup Time5 | tOSC | — | — | 10 | ms | |||||||||||||||||||||

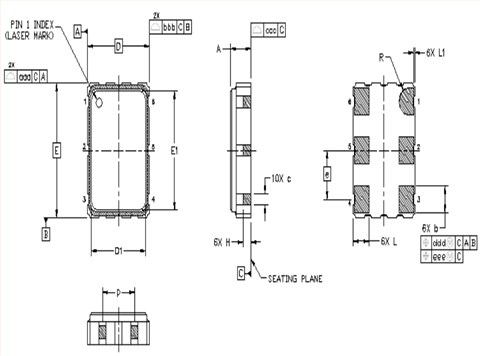

Si591網絡晶振,Silicon振蕩器,591BB300M000DG,3.3V,7050mm,300MHZ尺寸圖
| 原廠代碼 | 歐美晶振品牌 | 型號 | 頻率 | 電壓 | 頻率穩定度 |
| 511ABA000149AAG | Silicon振蕩器 | Si511 | 74.175824MHz | 3.3V | ±25ppm |
| 511FBA74M2500AAG | Silicon振蕩器 | Si511 | 74.25MHz | 2.5V | ±25ppm |
| 511BBA000149AAG | Silicon振蕩器 | Si511 | 74.175824MHz | 3.3V | ±25ppm |
| 511FBA155M520BAG | Silicon振蕩器 | Si511 | 155.52MHz | 2.5V | ±25ppm |
| 511ABA000110BAG | Silicon振蕩器 | Si511 | 148.35165MHz | 3.3V | ±25ppm |
| 511ABA148M500BAG | Silicon振蕩器 | Si511 | 148.5MHz | 3.3V | ±25ppm |
| 511ABA155M520BAG | Silicon振蕩器 | Si511 | 155.52MHz | 3.3V | ±25ppm |
| 511FBA155M520AAG | Silicon振蕩器 | Si511 | 155.52MHz | 2.5V | ±25ppm |
| 511ABA148M500AAG | Silicon振蕩器 | Si511 | 148.5MHz | 3.3V | ±25ppm |
| 511FBA148M500AAG | Silicon振蕩器 | Si511 | 148.5MHz | 2.5V | ±25ppm |
| 511FBA156M250AAG | Silicon振蕩器 | Si511 | 156.25MHz | 2.5V | ±25ppm |
| 511FBA212M500BAG | Silicon振蕩器 | Si511 | 212.5MHz | 2.5V | ±25ppm |
| 511ABA200M000BAG | Silicon振蕩器 | Si511 | 200MHz | 3.3V | ±25ppm |
| 511ABA212M500AAG | Silicon振蕩器 | Si511 | 212.5MHz | 3.3V | ±25ppm |
| 511SAA100M000AAG | Silicon振蕩器 | Si511 | 100MHz | 1.8V | ±50ppm |
| 511FBA125M000AAG | Silicon振蕩器 | Si511 | 125MHz | 2.5V | ±25ppm |
| 511ABA125M000BAG | Silicon振蕩器 | Si511 | 125MHz | 3.3V | ±25ppm |
| 511ABA100M000BAG | Silicon振蕩器 | Si511 | 100MHz | 3.3V | ±25ppm |
| 511BBA200M000AAG | Silicon振蕩器 | Si511 | 200MHz | 3.3V | ±25ppm |
| 511ABA74M2500BAG | Silicon振蕩器 | Si511 | 74.25MHz | 3.3V | ±25ppm |
| 511BBA74M2500AAG | Silicon振蕩器 | Si511 | 74.25MHz | 3.3V | ±25ppm |
| 511ABA106M250AAG | Silicon振蕩器 | Si511 | 106.25MHz | 3.3V | ±25ppm |
| 511BBA155M520BAG | Silicon振蕩器 | Si511 | 155.52MHz | 3.3V | ±25ppm |
| 511FBA000110BAG | Silicon振蕩器 | Si511 | 148.35165MHz | 2.5V | ±25ppm |
| 511ABA000110AAG | Silicon振蕩器 | Si511 | 148.35165MHz | 3.3V | ±25ppm |
| 511BBA000110AAG | Silicon振蕩器 | Si511 | 148.35165MHz | 3.3V | ±25ppm |
| 511FBA000110AAG | Silicon振蕩器 | Si511 | 148.35165MHz | 2.5V | ±25ppm |
| 511ABA212M500BAG | Silicon振蕩器 | Si511 | 212.5MHz | 3.3V | ±25ppm |
| 511BBA212M500BAG | Silicon振蕩器 | Si511 | 212.5MHz | 3.3V | ±25ppm |
| 511FBA212M500AAG | Silicon振蕩器 | Si511 | 212.5MHz | 2.5V | ±25ppm |
| 511BBA212M500AAG | Silicon振蕩器 | Si511 | 212.5MHz | 3.3V | ±25ppm |
| 511ABA200M000AAG | Silicon振蕩器 | Si511 | 200MHz | 3.3V | ±25ppm |
| 511SBA156M250BAG | Silicon振蕩器 | Si511 | 156.25MHz | 1.8V | ±50ppm |
| 511ABA100M000BAGR | Silicon振蕩器 | Si511 | 100MHz | 3.3V | ±25ppm |
| 511ABA125M000BAGR | Silicon振蕩器 | Si511 | 125MHz | 3.3V | ±25ppm |
| 511BBA100M000BAGR | Silicon振蕩器 | Si511 | 100MHz | 3.3V | ±25ppm |
| 511BBA125M000BAGR | Silicon振蕩器 | Si511 | 125MHz | 3.3V | ±25ppm |
| 511FBA100M000BAGR | Silicon振蕩器 | Si511 | 100MHz | 2.5V | ±25ppm |
| 511FBA125M000BAGR | Silicon振蕩器 | Si511 | 125MHz | 2.5V | ±25ppm |
| 511ABA106M250BAGR | Silicon振蕩器 | Si511 | 106.25MHz | 3.3V | ±25ppm |
| 511BBA106M250BAGR | Silicon振蕩器 | Si511 | 106.25MHz | 3.3V | ±25ppm |
| 511FBA106M250BAGR | Silicon振蕩器 | Si511 | 106.25MHz | 2.5V | ±25ppm |
| 511ABA000149BAGR | Silicon振蕩器 | Si511 | 74.175824MHz | 3.3V | ±25ppm |
| 511ABA74M2500BAGR | Silicon振蕩器 | Si511 | 74.25MHz | 3.3V | ±25ppm |
| 511BBA000149BAGR | Silicon振蕩器 | Si511 | 74.175824MHz | 3.3V | ±25ppm |
| 511BBA74M2500BAGR | Silicon振蕩器 | Si511 | 74.25MHz | 3.3V | ±25ppm |
| 511FBA000149BAGR | Silicon振蕩器 | Si511 | 74.175824MHz | 2.5V | ±25ppm |
| 511FBA74M2500BAGR | Silicon振蕩器 | Si511 | 74.25MHz | 2.5V | ±25ppm |
| 511ABA100M000AAGR | Silicon振蕩器 | Si511 | 100MHz | 3.3V | ±25ppm |
| 511ABA125M000AAGR | Silicon振蕩器 | Si511 | 125MHz | 3.3V | ±25ppm |
| 511BBA100M000AAGR | Silicon振蕩器 | Si511 | 100MHz | 3.3V | ±25ppm |
| 511BBA125M000AAGR | Silicon振蕩器 | Si511 | 125MHz | 3.3V | ±25ppm |
| 511FBA100M000AAGR | Silicon振蕩器 | Si511 | 100MHz | 2.5V | ±25ppm |
| 511FBA125M000AAGR | Silicon振蕩器 | Si511 | 125MHz | 2.5V | ±25ppm |
| 511ABA106M250AAGR | Silicon振蕩器 | Si511 | 106.25MHz | 3.3V | ±25ppm |
| 511BBA106M250AAGR | Silicon振蕩器 | Si511 | 106.25MHz | 3.3V | ±25ppm |
| 511FBA106M250AAGR | Silicon振蕩器 | Si511 | 106.25MHz | 2.5V | ±25ppm |
| 511ABA000149AAGR | Silicon振蕩器 | Si511 | 74.175824MHz | 3.3V | ±25ppm |
| 511ABA74M2500AAGR | Silicon振蕩器 | Si511 | 74.25MHz | 3.3V | ±25ppm |
| 511BBA000149AAGR | Silicon振蕩器 | Si511 | 74.175824MHz | 3.3V | ±25ppm |
| 511BBA74M2500AAGR | Silicon振蕩器 | Si511 | 74.25MHz | 3.3V | ±25ppm |
| 511FBA000149AAGR | Silicon振蕩器 | Si511 | 74.175824MHz | 2.5V | ±25ppm |
| 511FBA74M2500AAGR | Silicon振蕩器 | Si511 | 74.25MHz | 2.5V | ±25ppm |
| 511ABA156M250BAGR | Silicon振蕩器 | Si511 | 156.25MHz | 3.3V | ±25ppm |
| 511BBA156M250BAGR | Silicon振蕩器 | Si511 | 156.25MHz | 3.3V | ±25ppm |
| 511FBA156M250BAGR | Silicon振蕩器 | Si511 | 156.25MHz | 2.5V | ±25ppm |
| 511ABA155M520BAGR | Silicon振蕩器 | Si511 | 155.52MHz | 3.3V | ±25ppm |
| 511BBA155M520BAGR | Silicon振蕩器 | Si511 | 155.52MHz | 3.3V | ±25ppm |
| 511FBA148M500BAGR | Silicon振蕩器 | Si511 | 148.5MHz | 2.5V | ±25ppm |
| 511FBA155M520BAGR | Silicon振蕩器 | Si511 | 155.52MHz | 2.5V | ±25ppm |
| 511ABA000110BAGR | Silicon振蕩器 | Si511 | 148.35165MHz | 3.3V | ±25ppm |
| 511ABA148M500BAGR | Silicon振蕩器 | Si511 | 148.5MHz | 3.3V | ±25ppm |
| 511BBA000110BAGR | Silicon振蕩器 | Si511 | 148.35165MHz | 3.3V | ±25ppm |
| 511BBA148M500BAGR | Silicon振蕩器 | Si511 | 148.5MHz | 3.3V | ±25ppm |
| 511FBA000110BAGR | Silicon振蕩器 | Si511 | 148.35165MHz | 2.5V | ±25ppm |
| 511BBA156M250AAGR | Silicon振蕩器 | Si511 | 156.25MHz | 3.3V | ±25ppm |
| 511FBA156M250AAGR | Silicon振蕩器 | Si511 | 156.25MHz | 2.5V | ±25ppm |
| 511ABA155M520AAGR | Silicon振蕩器 | Si511 | 155.52MHz | 3.3V | ±25ppm |
| 511BBA155M520AAGR | Silicon振蕩器 | Si511 | 155.52MHz | 3.3V | ±25ppm |
| 511FBA155M520AAGR | Silicon振蕩器 | Si511 | 155.52MHz | 2.5V | ±25ppm |
| 511ABA000110AAGR | Silicon振蕩器 | Si511 | 148.35165MHz | 3.3V | ±25ppm |
| 511ABA148M500AAGR | Silicon振蕩器 | Si511 | 148.5MHz | 3.3V | ±25ppm |
| 511BBA000110AAGR | Silicon振蕩器 | Si511 | 148.35165MHz | 3.3V | ±25ppm |
| 511BBA148M500AAGR | Silicon振蕩器 | Si511 | 148.5MHz | 3.3V | ±25ppm |
| 511FBA000110AAGR | Silicon振蕩器 | Si511 | 148.35165MHz | 2.5V | ±25ppm |
| 511FBA148M500AAGR | Silicon振蕩器 | Si511 | 148.5MHz | 2.5V | ±25ppm |
| 511ABA25M0000BAGR | Silicon振蕩器 | Si511 | 25MHz | 3.3V | ±25ppm |
| 511ABA125M000AAG | Silicon振蕩器 | Si511 | 125MHz | 3.3V | ±25ppm |
| 511ABA200M000BAGR | Silicon振蕩器 | Si511 | 200MHz | 3.3V | ±25ppm |
| 511BBA200M000BAGR | Silicon振蕩器 | Si511 | 200MHz | 3.3V | ±25ppm |
| 511FBA200M000BAGR | Silicon振蕩器 | Si511 | 200MHz | 2.5V | ±25ppm |
| 511ABA212M500BAGR | Silicon Crystal | Si511 | 212.5MHz | 3.3V | ±25ppm |
| 511BBA212M500BAGR | Silicon振蕩器 | Si511 | 212.5MHz | 3.3V | ±25ppm |
| 511FBA212M500BAGR | Silicon振蕩器 | Si511 | 212.5MHz | 2.5V | ±25ppm |
| 511ABA200M000AAGR | Silicon振蕩器 | Si511 | 200MHz | 3.3V | ±25ppm |
| 511BBA200M000AAGR | Silicon振蕩器 | Si511 | 200MHz | 3.3V | ±25ppm |
| 511FBA200M000AAGR | Silicon振蕩器 | Si511 | 200MHz | 2.5V | ±25ppm |
| 511ABA212M500AAGR | Silicon振蕩器 | Si511 | 212.5MHz | 3.3V | ±25ppm |
| 511BBA212M500AAGR | Silicon振蕩器 | Si511 | 212.5MHz | 3.3V | ±25ppm |
| 511FBA212M500AAGR | Silicon振蕩器 | Si511 | 212.5MHz | 2.5V | ±25ppm |
