Skyworks無人機差分晶振,595NG250M000DGR,Si595壓控振蕩器，尺寸7.0x5.0mm，頻率250MHZ，輸出邏輯LVDS，電壓3.3V，頻率穩定性50ppm，歐美有源晶振，思佳訊壓控晶振，LVDS輸出晶振，差分晶體振蕩器，壓控差分晶振，VCXO壓控晶振，壓控晶體振蕩器，石英差分振蕩器，差分有源晶振，差分貼片振蕩器，貼片壓控振蕩器，有源壓控晶振，7050貼片差分晶振，超高頻差分振蕩器，高品質差分晶振，高可靠差分晶振，低電壓差分晶振，低耗能差分晶振，低功耗差分晶振，低損耗差分晶振，低相位差分晶振，低相噪差分晶振，低抖動差分晶振，網絡差分晶振，無人機差分晶振，物聯網差分晶振，小型設備差分晶振，娛樂設備差分晶振，航空航天差分晶振，安防應用差分晶振，具有超高的頻率選擇空間。
差分晶振產品非常適合用于SONET/SDH，網絡，SD/HD SDI/3G SDI視頻，光纖接入，時鐘恢復和抖動清除PLL，FPGA/ASIC時鐘生成等領域。Skyworks無人機差分晶振,595NG250M000DGR,Si595壓控振蕩器.
Skyworks無人機差分晶振,595NG250M000DGR,Si595壓控振蕩器 參數表
Parameter
Symbol
Test Condition
Min
Typ
Max
Units
Supply Voltage1
VDD
3.3 V option
2.97
3.3
3.63
V
2.5 V option
2.25
2.5
2.75
1.8 V option
1.71
1.8
1.89
Supply Current
IDD
Output enabled
LVPECL
CML
LVDS
CMOS
120
110
100
90
135
120
110
100
mA
Tristate mode
60
75
Output Enable (OE)2
VIH
0.75 x VDD
V
VIL
0.5
Operating Temperature Range
TA
–40
85
°C
Parameter
Symbol
Test Condition
Min
Typ
Max
Units
Control Voltage Tuning Slope1,2,3
KV
10 to 90% of VDD
45
95
125
185
380
ppm/V
Control Voltage Linearity4
LVC
BSL
–5
±1
+5
%
Incremental
–10
±5
+10
Modulation Bandwidth
BW
9.3
10.0
10.7
kHz
VCInput Impedance
ZVC
500
kΩ
VCInput Capacitance
CVC
50
pF
Nominal Control Voltage
VCNOM
@ fO
VDD/2
V
Control Voltage Tuning Range
VC
0
VDD
V
Parameter
Symbol
Test Condition
Min
Typ
Max
Units
Nominal Frequency1,2,3
fO
LVDS/CML/LVPECL
250
MHz
CMOS
10
160
Temperature Stability1,4
TA= –40 to +85 ºC
–20
–50
+20
+50
ppm
Absolute Pull Range1,4
APR
±10
±370
ppm
Power up Time5
tOSC
10
ms
Parameter
Symbol
Test Condition
Min
Typ
Max
Units
LVPECL Output Option1
VO
mid-level
VDD– 1.42
VDD– 1.25
V
VOD
swing (diff)
1.1
1.9
VPP
VSE
swing (single-ended)
0.55
0.95
VPP
LVDS Output Option2
VO
mid-level
1.125
1.20
1.275
V
VOD
swing (diff)
0.5
0.7
0.9
VPP
CML Output Option2
VO
2.5/3.3 V option mid-level
—
VDD– 1.30
—
V
1.8 V option mid-level
—
VDD– 0.36
—
VOD
2.5/3.3 V option swing (diff)
1.10
1.50
1.90
VPP
1.8 V option swing (diff)
0.35
0.425
0.50
CMOS Output Option3
VOH
0.8 x VDD
—
VDD
V
VOL
—
—
0.4
Rise/Fall time (20/80%)
tR,tF
LVPECL/LVDS/CML
—
—
350
ps
CMOS with CL= 15 pF
—
2
—
ns
Symmetry (duty cycle)
SYM
LVPECL:VDD– 1.3 V (diff)
LVDS:1.25 V (diff)
CMOS:VDD/2
45
—
55
%

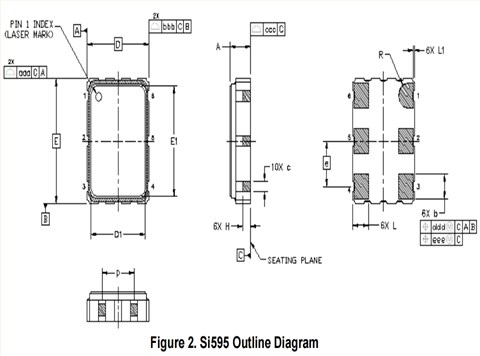

Skyworks無人機差分晶振,595NG250M000DGR,Si595壓控振蕩器 尺寸圖

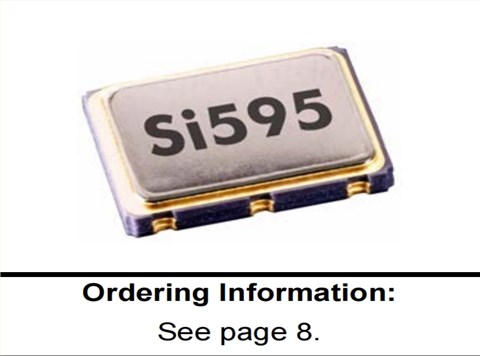

Skyworks無人機差分晶振,595NG250M000DGR,Si595壓控振蕩器

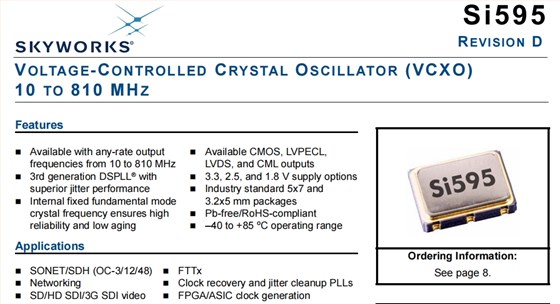

產品特點：
可用于任何速率輸出頻率從10到810兆赫
第三代DSPLL®卓越的抖動性能
內部固定基本模式晶體頻率確保高可靠性和低老化
可用的CMOS、LVPECL、差分晶振LVDS和CML輸出
3.3、2.5和1.8 V電源選項
行業標準5x7和3.2x5 mm包裝
無鉛/符合RoHS
–40至+85ºC工作范圍
| Mfr Part # | 歐美晶振 | Description | Series | Frequency | Output |
| 595AC196M608DG | Skyworks有源晶振 | XTAL OSC VCXO 196.6080MHZ LVPECL | Si595 | 196.608 MHz | LVPECL |
| 595AF000244DG | Skyworks有源晶振 | XTAL OSC VCXO 244.0000KHZ LVPECL | Si595 | 244 kHz | LVPECL |
| 595AF000343DG | Skyworks有源晶振 | XTAL OSC VCXO 343.0000KHZ LVPECL | Si595 | 343 kHz | LVPECL |
| 595AF140M000DG | Skyworks有源晶振 | XTAL OSC VCXO 140.0000MHZ LVPECL | Si595 | 140 MHz | LVPECL |
| 595AF148M500DG | Skyworks有源晶振 | XTAL OSC VCXO 148.5000MHZ LVPECL | Si595 | 148.5 MHz | LVPECL |
| 595AF155M520DG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
| 595AF208M000DG | Skyworks有源晶振 | XTAL OSC VCXO 208.0000MHZ LVPECL | Si595 | 208 MHz | LVPECL |
| 595AG000172DG | Skyworks有源晶振 | XTAL OSC VCXO 172.0000KHZ LVPECL | Si595 | 172 kHz | LVPECL |
| 595AG000244DG | Skyworks有源晶振 | XTAL OSC VCXO 244.0000KHZ LVPECL | Si595 | 244 kHz | LVPECL |
| 595AG148M500DG | Skyworks有源晶振 | XTAL OSC VCXO 148.5000MHZ LVPECL | Si595 | 148.5 MHz | LVPECL |
| 595AG155M520DG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
| 595BC148M500DG | Skyworks有源晶振 | XTAL OSC VCXO 148.5000MHZ LVDS | Si595 | 148.5 MHz | LVDS |
| 595BG148M352DG | Skyworks有源晶振 | XTAL OSC VCXO 148.3520MHZ LVDS | Si595 | 148.352 MHz | LVDS |
| 595BG148M500DG | Skyworks有源晶振 | XTAL OSC VCXO 148.5000MHZ LVDS | Si595 | 148.5 MHz | LVDS |
| 595EG160M000DG | Skyworks有源晶振 | XTAL OSC VCXO 160.0000MHZ LVPECL | Si595 | 160 MHz | LVPECL |
| 595MG139M264DG | Skyworks有源晶振 | XTAL OSC VCXO 139.2640MHZ LVPECL | Si595 | 139.264 MHz | LVPECL |
| 595MG155M520DG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
| 595BC000178DG | Skyworks有源晶振 | XTAL OSCILLATOR | Si595 | 148.3516 MHz | LVDS |
| 595FG148M500DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si595 | 148.5 MHz | LVDS |
| 595FS000244DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si595 | 148.351648 MHz | LVDS |
| 595BA125M000DG | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVDS | Si595 | 125 MHz | LVDS |
| 595BA125M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 125.0000MHZ LVDS | Si595 | 125 MHz | LVDS |
| 595BG491M520DGR | Skyworks有源晶振 | XTAL OSC VCXO 491.5200MHZ LVDS | Si595 | 491.52 MHz | LVDS |
| 595BG500M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 500.0000MHZ LVDS | Si595 | 500 MHz | LVDS |
| 595NG250M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 250.0000MHZ LVDS | Si595 | 250 MHz | LVDS |
| 595AA155M520DGR | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
| 595AB148M500DGR | Skyworks有源晶振 | XTAL OSC VCXO 148.5000MHZ LVPECL | Si595 | 148.5 MHz | LVPECL |
| 595AB155M520DGR | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
| 595AD153M600DGR | Skyworks有源晶振 | XTAL OSC VCXO 153.6000MHZ LVPECL | Si595 | 153.6 MHz | LVPECL |
| 595AD170M240DGR | Skyworks有源晶振 | XTAL OSC VCXO 170.2400MHZ LVPECL | Si595 | 170.24 MHz | LVPECL |
| 595AD205M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 205.0000MHZ LVPECL | Si595 | 205 MHz | LVPECL |
| 595AD210M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 210.0000MHZ LVPECL | Si595 | 210 MHz | LVPECL |
| 595AE155M520DGR | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
| 595AE156M250DGR | Skyworks有源晶振 | XTAL OSC VCXO 156.2500MHZ LVPECL | Si595 | 156.25 MHz | LVPECL |
| 595AE192M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 192.0000MHZ LVPECL | Si595 | 192 MHz | LVPECL |
| 595BA148M425DGR | Skyworks有源晶振 | XTAL OSC VCXO 148.4250MHZ LVDS | Si595 | 148.425 MHz | LVDS |
| 595BD209M345DGR | Skyworks有源晶振 | XTAL OSC VCXO 209.3450MHZ LVDS | Si595 | 209.345 MHz | LVDS |
| 595EB155M520DGR | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
| 595FB212M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 212.0000MHZ LVDS | Si595 | 212 MHz | LVDS |
| 595MD161M525DGR | Skyworks有源晶振 | XTAL OSC VCXO 161.5250MHZ LVPECL | Si595 | 161.525 MHz | LVPECL |
| 595MD161M575DGR | Skyworks有源晶振 | XTAL OSC VCXO 161.5750MHZ LVPECL | Si595 | 161.575 MHz | LVPECL |
| 595ME155M520DGR | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
| 595AD147M900DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si595 | 147.9 MHz | LVPECL |
| 595AE160M000DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si595 | 160 MHz | LVPECL |
| 595BB000178DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si595 | 148.3516 MHz | LVDS |
| 595BB148M500DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si595 | 148.5 MHz | LVDS |
| 595AA155M520DG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
| 595AB148M500DG | Skyworks有源晶振 | XTAL OSC VCXO 148.5000MHZ LVPECL | Si595 | 148.5 MHz | LVPECL |
| 595AB155M520DG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
| 595AD153M600DG | Skyworks有源晶振 | XTAL OSC VCXO 153.6000MHZ LVPECL | Si595 | 153.6 MHz | LVPECL |
| 595AD170M240DG | Skyworks有源晶振 | XTAL OSC VCXO 170.2400MHZ LVPECL | Si595 | 170.24 MHz | LVPECL貼片差分晶振 |
| 595AD205M000DG | Skyworks有源晶振 | XTAL OSC VCXO 205.0000MHZ LVPECL | Si595 | 205 MHz | LVPECL |
| 595AD210M000DG | Skyworks有源晶振 | XTAL OSC VCXO 210.0000MHZ LVPECL | Si595 | 210 MHz | LVPECL |
| 595AE155M520DG | Skyworks有源晶振 | XTAL OSC VCXO 155.5200MHZ LVPECL | Si595 | 155.52 MHz | LVPECL |
