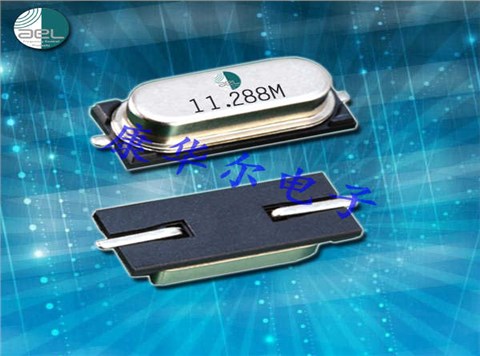

ELLS-12.000MHz-18-R60-A-4-F-T,AEL品牌晶振,SMD石英晶體，英國進口晶振，AEL晶振，艾爾晶振，型號：ELLS系列晶振，編碼為：ELLS-12.000MHz-18-R60-A-4-F-T，頻率為：12MHz，負載電容：18pF，頻率穩定性：±50ppm，頻率容差：±30ppm，工作溫度范圍：-10℃至+60℃，小體積晶振尺寸：12.3x4.6x4.3mm封裝，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振。具有小體積，輕薄型，高性能，高品質，高溫度等特點。被廣泛應用于：通訊設備晶振，汽車電子晶振，智能家居晶振，無線藍牙晶振，物聯網晶振，安防設備等應用。
ELLS-12.000MHz-18-R60-A-4-F-T,AEL品牌晶振,SMD石英晶體，產品特點：
•SMD石英晶體諧振器
•公差：±10ppm可用SMD晶振
•工作溫度：0°C至+70°C到-55°C至+125°C
ELLS-12.000MHz-18-R60-A-4-F-T,AEL品牌晶振,SMD石英晶體,參數表
| STANDARD SPECIFICATIONS | ||||||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||||||||||
|
Frequency Range Fundamental AT (Standard) 3rdOvertone (Standard) Fundamental AT or BT (see options) |
12.000 MHz 24.01 to 75.00 MHz 24.01 to 50.00 MHz |
|||||||||||||||||
| Operation Mode | Fundamental or 3rdOvertone | |||||||||||||||||
| Operating Temperature | 0°C to +70°C, see options | |||||||||||||||||
| Storage Temperature | -55°C to +125°C | |||||||||||||||||
| Frequency Tolerance @ 25°C | ± 50PPM, see options | |||||||||||||||||
|
Frequency Stability over the Operating Temperature (ref. to +25°C) |
± 50PPM, see options (For BT cut, ±100ppm max.at -10° C to +60° C only) |
|||||||||||||||||
|
Equivalent Series Resistance (ESR) 3.579545 ≤ F < 4.999 (Fund) 5.000 ≤ F < 5.999 (Fund) 6.000 ≤ F < 7.999 (Fund) 8.000 ≤ F < 8.999 (Fund) 9.000 ≤ F ≤ 9.999 (Fund) 10.000 ≤ F ≤ 15.999 (Fund) 16.000≤ F ≤ 50.000 (Fund) 24.01 ≤ F ≤ 31.999 (3rdO/T) 32.000≤ F ≤ 75.000 (3rdO/T) |
180Ω 120Ω 100Ω 80Ω 60Ω 50Ω 40Ω 100Ω 80Ω |
|||||||||||||||||
| Shunt Capacitance (C0) | 7.0 pF | |||||||||||||||||
| Load Capacitance (CL) |
18 pF, Standard (see options if other than STD) |
|||||||||||||||||
| Drive Level |
100 μWTyp 1000 μW |
|||||||||||||||||
| Aging (@25°C±3°C First year) | ±5ppm | |||||||||||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | |||||||||||||||||
| RoHS Compliant | Yes | |||||||||||||||||
| Pb Free | Yes | |||||||||||||||||
| MSL |
N/A |
|||||||||||||||||
ELLS-12.000MHz-18-R60-A-4-F-T,AEL品牌晶振,SMD石英晶體,尺寸圖
| 產品編碼 | 晶振廠家 | 型號 | 頻率 | 負載電容 |
| ELLS-10.000MHz-20-R60-J-Q-F-T | AEL晶振 | ELLS | 10 MHz | 20 pF |
| ELLS-12.000MHz-18-R60-A-4-F-T | AEL晶振 | ELLS | 12 MHz | 18 pF |
| ELLS-13.560MHz-10-R35-A4Y-F-T | AEL晶振 | ELLS | 13.56 MHz | 10 pF |
| ELLS-30.000MHz-10-R50-B1U-F-T | AEL晶振 | ELLS | 30 MHz | 10 pF |
| ELLS-4.000MHz-16-R120-A4-F-T | AEL晶振 | ELLS | 4 MHz | 16 pF |
| ELLS-4.000MHz-16-R120-B1X-F-T | AEL晶振 | ELLS | 4 MHz | 16 pF |
| ELLS-4.000MHz-30-R120-D4-F-T | AEL晶振 | ELLS | 4 MHz | 30 pF |
| ELLS-8.000MHz-16-R45-D4-F-T | AEL晶振 | ELLS | 8 MHz | 16 pF |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | ELM10 | 16 MHz | 8 pF |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | 24 MHz | 16 pF |
| ELM11-32.000MHz-10-R60-D1X-T | AEL晶振 | ELM11 | 32 MHz | 10 pF |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | 24 MHz | 6 pF |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | ELM3 | 12 MHz | 30 pF |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | ELM3 | 14 MHz | 30 pF |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | 24 MHz | 18 pF |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | ELM3 | 8.057 MHz | 18 pF |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL晶振 | ELM8 | 12 MHz | 10 pF |
| ELM8-12.5829MHz-16-R60-1U-T | AEL晶振 | ELM8 | 12.5829 MHz | 16 pF |
| ELM8-14.000MHz-16-R150-B1U-T | AEL晶振 | ELM8 | 14.8 MHz | 16 pF |
| ELM8-18.432MHz-16-R80-DQ-T | AEL晶振 | ELM8 | 18.432 MHz | 16 pF |
| ELM8-24.000MHz-10-R60-D1W-T | AEL晶振 | ELM8 | 24 MHz | 10 pF |
| ELM8-24.000MHz-18-R60-B1W-T | AEL晶振 | ELM8 | 24 MHz | 18 pF |
| ELM8-24.000MHz-9-R40-N1U-T | AEL晶振 | ELM8 | 24 MHz | 9 pF |
| ELM8-26.000MHz-18-R60-B1U-T | AEL晶振 | ELM8 | 26 MHz | 18 pF |
| ELM8-32.000MHz-16-R40-B1U-T | AEL晶振 | ELM8 | 32 MHz | 16 pF |
| ELM8-32.000MHz-9-R40-D1G-T | AEL晶振 | ELM8 | 32 MHz | 9 pF |
| ELS05-32.768kHz-9-T | AEL晶振 | ELS05 | 32.768 kHz | 9 pF |
| ELS06-32.768kHz-9-T | AEL晶振 | ELS06 | 32.768 kHz | 9 pF |
| ELS07-32.768kHz-6-T | AEL晶振 | ELS07 | 32.768 kHz | 6 pF |
| ELS07-32.768kHz-T | AEL晶振 | ELS07 | 32.768 kHz | 12.5 pF |
| ELS13-32.768kHz-7-T | AEL晶振 | ELS13 | 32.768 kHz | 7 pF |
| ELS13-32.768kHz-9-T | AEL晶振 | ELS13 | 32.768 kHz | 9 pF |
| ELS13-32.768kHz-T | AEL晶振 | ELS13 | 32.768 kHz | 12.5 pF |
| ELS25-32.768kHz-6-2-T | AEL晶振 | ELS25 | 32.768 kHz | 6 pF |
| ELS25-32.768kHz-T | AEL晶振 | ELS25 | 32.768 kHz | 12.5 pF |
