ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL鐘表電子晶振，英國進口晶振，AEL艾爾晶振，型號：ELS06系列，編碼為：ELS06-32.768kHz-9-T，頻率：32.768KHz，負載電容：9pF，工作溫度范圍：-40℃至+85℃，精度：±20ppm，小體積晶振尺寸：2.0x1.2x0.6mm，音叉表晶，兩腳貼片晶振，石英晶振，無源晶振，SMD晶振，石英晶體諧振器。具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點，應用于：移動通訊晶振，無線網絡晶振，智能儀表晶振，可穿戴設備晶振，鐘表電子晶振，數字顯示等應用。

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL鐘表電子晶振，產品特點：

•SMD音叉石英晶體
•公差：±20ppm，±10ppm可用
•工作溫度-40°C至+85°C、-40°C到+125°C和-55°C到+125°C可用

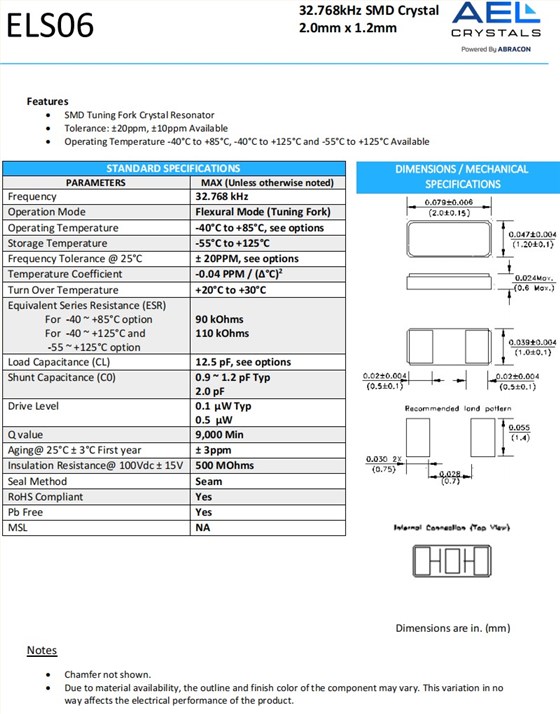

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL鐘表電子晶振,參數表

PARAMETERS			MAX (Unless otherwise noted)
Frequency			32.768 kHz
Operation Mode			Flexural Mode (Tuning Fork)
Operating Temperature			-40°C to +85°C, see options
Storage Temperature			-55°C to +125°C
Frequency Tolerance @ 25°C			± 20PPM, see options
Temperature Coefficient			-0.04 PPM / (?°C)2
Turn Over Temperature			+20°C to +30°C
Equivalent Series Resistance (ESR) For -40 ~ +85°C option For -40 ~ +125°C and -55 ~ +125°C option			90 kOhms 110 kOhms
Load Capacitance (CL)			12.5 pF, see options
Shunt Capacitance (C0)			0.9 ~ 1.2 pF Typ 2.0 pF
Drive Level			0.1 μW Typ 0.5 μW
Q value			9,000 Min
Aging@ 25°C ± 3°C First year			± 3ppm
Insulation Resistance@ 100Vdc ± 15V			500 MOhms
Seal Method			Seam
RoHS Compliant			Yes
Pb Free			Yes
MSL			NA

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL鐘表電子晶振,尺寸圖

進口晶振編碼	品牌	型號	頻率	負載電容	長度	寬度	高度
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL晶振	ELLS	10 MHz	20 pF	12.3mm	4.6mm	4.3mm
ELLS-12.000MHz-18-R60-A-4-F-T	AEL晶振	ELLS	12 MHz	18 pF	12.3mm	4.6mm	4.3mm
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL晶振	ELLS	13.56 MHz	10 pF	12.3mm	4.6mm	4.3mm
ELLS-30.000MHz-10-R50-B1U-F-T	AEL晶振	ELLS	30 MHz	10 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-A4-F-T	AEL晶振	ELLS	4 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-B1X-F-T	AEL晶振	ELLS	4 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-30-R120-D4-F-T	AEL晶振	ELLS	4 MHz	30 pF	12.3mm	4.6mm	4.3mm
ELLS-8.000MHz-16-R45-D4-F-T	AEL晶振	ELLS	8 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELM10-16.000MHz-8-R60-2-D20-T	AEL晶振	ELM10	16 MHz	8 pF	2.5mm	2mm	0.5mm
ELM10-24.000MHz-16-R100-X-N15-T	AEL晶振	ELM10	24 MHz	16 pF	2.5mm	2mm	0.5mm
ELM11-32.000MHz-10-R60-D1X-T	AEL晶振	ELM11	32 MHz	10 pF	2mm	1.6mm	0.5mm
ELM12W-24.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	24 MHz	6 pF	1.6mm	1.2mm	0.4mm
ELM3-12.000MHz-30-R80-D4Y-T	AEL晶振	ELM3	12 MHz	30 pF	5mm	3.2mm	1mm
ELM3-14.000MHz-30-R80-D4H-T	AEL晶振	ELM3	14 MHz	30 pF	5mm	3.2mm	1mm
ELM3-24.000MHz-18-R40-D4H-T	AEL晶振	ELM3	24 MHz	18 pF	5mm	3.2mm	1mm
ELM3-8.057MHz-18-R100-B4Y-T	AEL晶振	ELM3	8.057 MHz	18 pF	5mm	3.2mm	1mm
ELM8-12.000MHz-10-R50-D4Y-T	AEL晶振	ELM8	12 MHz	10 pF	3mm	2.5mm	0.6mm
ELM8-12.5829MHz-16-R60-1U-T	AEL晶振	ELM8	12.5829 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-14.000MHz-16-R150-B1U-T	AEL晶振	ELM8	14.8 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-18.432MHz-16-R80-DQ-T	石英晶振	ELM8	18.432 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-10-R60-D1W-T	AEL晶振	ELM8	24 MHz	10 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-18-R60-B1W-T	AEL晶振	ELM8	24 MHz	18 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-9-R40-N1U-T	AEL晶振	ELM8	24 MHz	9 pF	3mm	2.5mm	0.6mm
ELM8-26.000MHz-18-R60-B1U-T	AEL晶振	ELM8	26 MHz	18 pF	3mm	2.5mm	0.6mm
ELM8-32.000MHz-16-R40-B1U-T	AEL晶振	ELM8	32 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-32.000MHz-9-R40-D1G-T	AEL晶振	ELM8	32 MHz	9 pF	3mm	2.5mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	ELS05	32.768 kHz	9 pF	1.6mm	1mm	0.5mm
ELS06-32.768kHz-9-T	AEL晶振	ELS06	32.768 kHz	9 pF	2mm	1.2mm	0.6mm
ELS07-32.768kHz-6-T	AEL晶振	ELS07	32.768 kHz	6 pF	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	ELS07	32.768 kHz	12.5 pF	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	ELS13	32.768 kHz	7 pF	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	ELS13	32.768 kHz	9 pF	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	ELS13	32.768 kHz	12.5 pF	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	AEL晶振	ELS25	32.768 kHz	6 pF	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	ELS25	32.768 kHz	12.5 pF	8mm	3.8mm	2.4mm
