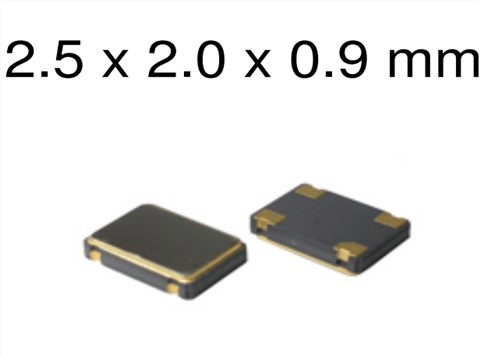

2520mm,FCD-Tech電信晶振,SX2C-33K20EH-36MHz,3.3V,CMOS,進口FCD-Tech Crystal,OSC振蕩器,石英有源晶振,2520mm振蕩器,CMOS輸出晶振,36MHZ有源振蕩器,有源晶體振蕩器,尺寸2.5x2.0mm,頻率36MHZ,電壓3.3V,輸出邏輯CMOS,工作溫度-40~+85°C,高沖擊晶振,高可靠晶振,高性能晶振,低相位晶振,低電壓晶振,便攜式設備晶振,電信應用晶振,智能家居晶振,無線模塊晶振.
2520mm,FCD-Tech電信晶振,SX2C-33K20EH-36MHz,3.3V,CMOS特點:
超小型封裝有源晶振
高沖擊和振動電阻率
應用：電信，便攜式電子.
2520mm,FCD-Tech電信晶振,SX2C-33K20EH-36MHz,3.3V,CMOS 參數表
| Item | Specification | |||||||||||||||
| Frequency Range | 36.0 MHz | |||||||||||||||
| Output Signal | CMOS | |||||||||||||||
| Overall Frequency Stability * | ± 20 ppm~± 100 ppm (see options) | |||||||||||||||
| Operating Temperature Range | 0 ~ +70°C commercial application (see options) | |||||||||||||||
| -40 ~ +85°C industrial application (see options) | ||||||||||||||||
|
Supply Voltage Vdd |
+3.0V±5% | +3.3V±5% | ||||||||||||||
| Supply Current Idd | 5 mA ~ 30 mA | 5 mA ~ 30 mA | ||||||||||||||
 VOL ≤ 0.1 Vdd
|
||||||||||||||||
| Output Load | ||||||||||||||||
| Symmetry | ||||||||||||||||
| Rise / Fall timeFr/Ff | ||||||||||||||||
|
Tri-state function |
open | pin #3=oscillation | ||||||||||||||
| pin #3=high impedance | ||||||||||||||||
| Start-up Time | ||||||||||||||||
 band )
|
||||||||||||||||
| Packing Unit | 3000pcs / reel | |||||||||||||||
| Soldering Condition | 260°C , 10 sec x2 max | |||||||||||||||

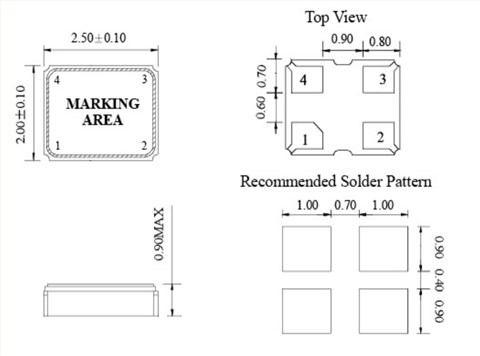

2520mm,FCD-Tech電信晶振,SX2C-33K20EH-36MHz,3.3V,CMOS尺寸圖
