SX3HK,SX3HK25K50E-52MHz,HCSL,荷蘭FCD-Tech差分晶振,3225mm特點:
微型封裝有源晶振
卓越的相位噪聲
極低的電流消耗
應用：SONET，xDSL，SDH，媒體盒.

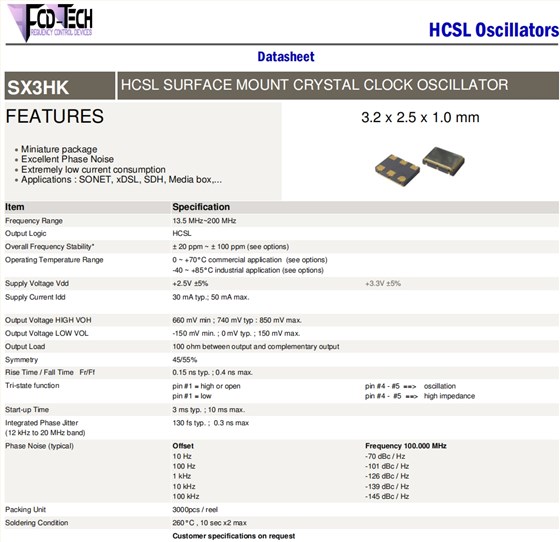

SX3HK,SX3HK25K50E-52MHz,HCSL,荷蘭FCD-Tech差分晶振,3225mm 參數表
|
Item Frequency Range |
Specification 52 MHz |
|||||||
| Output Logic | HCSL | |||||||
| Overall Frequency Stability* | ± 20 ppm ~ ± 100 ppm (see options) | |||||||
| Operating Temperature Range |
0 ~ +70°C commercial application(see options) -40 ~ +85°C industrial application (see options) |
|||||||
| Supply Voltage Vdd |
+2.5V ±5%+3.3V ±5% |
|||||||
| Supply Current Idd | 30 mA typ.; 50 mA max. | |||||||
| Output Voltage HIGH VOH |
660 mV min ; 740 mV typ : 850 mV max. |
|||||||
| Output Voltage LOW VOL | -150 mV min. ; 0 mV typ. ; 150 mV max. | |||||||
| Output Load |
100 ohm between output and complementary output |
|||||||
| Symmetry | 45/55% | |||||||
| Rise Time / Fall TimeFr/Ff | 0.15 ns typ. ; 0.4 ns max. | |||||||
| Tri-state function |
pin #1 = high or open pin #1 = low |
pin #4 - #5==>oscillation pin #4 -#5==>high impedance |
||||||
| Start-up Time | 3 ms typ. ; 10 ms max. | |||||||
|
Integrated Phase Jitter (12 kHz to 20 MHz band) |
130 fs typ. ;0.3 ns max | |||||||
| Phase Noise (typical) |
Offset 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz |
Frequency 100.000 MHz -70 dBc / Hz -101 dBc / Hz -126 dBc / Hz -139 dBc / Hz -145 dBc / Hz |
||||||
| Packing Unit | 3000pcs / reel | |||||||
| Soldering Condition | 260°C , 10 sec x2 max | |||||||

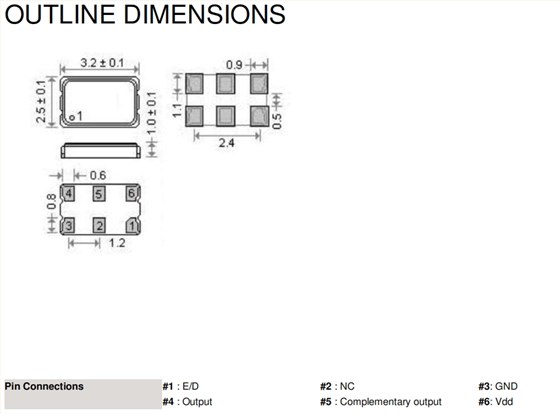

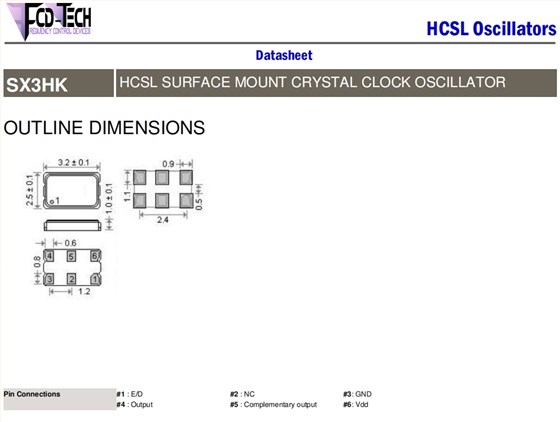

SX3HK,SX3HK25K50E-52MHz,HCSL,荷蘭FCD-Tech差分晶振,3225mm尺寸圖
