愛普生有源晶振X1G005591001200編碼參數詳細介紹

來源：康華爾查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-08-27 18:41:53【大中小】

分享到：

愛普生有源晶振X1G005591001200編碼參數詳細介紹

全球不同品牌生產的有源晶振作為時鐘元件,為電路提供標準的時鐘頻率.所以晶振工作的穩定與否直接決定了整個系統的穩定與否.電子設計人員普遍認同晶振為關鍵器件,但在選擇愛普生貼片晶振時,對各參數情況不了解.往往造成調試時出現大小的問題.下面對晶振注意的參數詳細介紹.

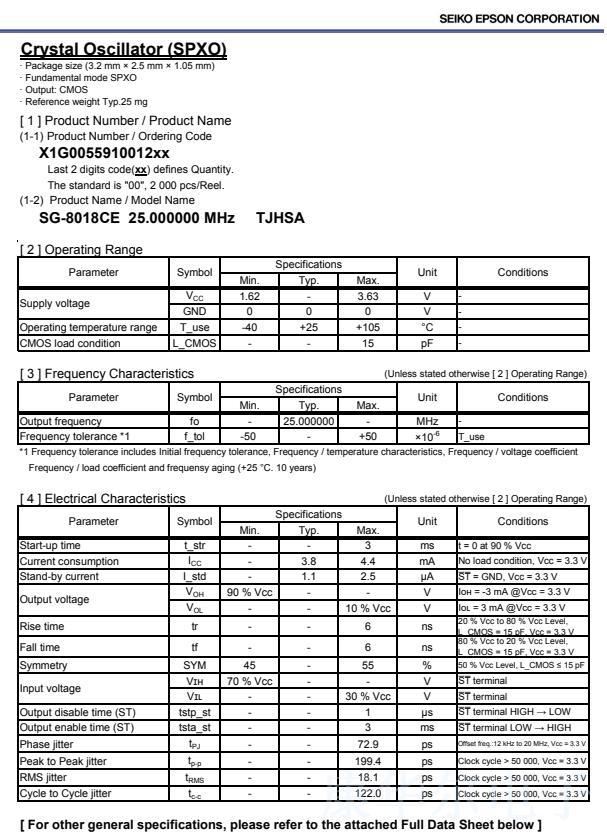

愛普生有源晶振,X1G005591001200晶振編碼

愛普生有源晶振編碼	型號	頻率	長X寬X高	輸出波	電源電壓	工作溫度	頻差
X1G005591001100	SG-8018CE	25.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591001200	SG-8018CE	25.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591001300	SG-8018CE	20.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591001400	SG-8018CE	20.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591001500	SG-8018CE	50.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591001600	SG-8018CE	50.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591001700	SG-8018CE	48.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591001800	SG-8018CE	48.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591001900	SG-8018CE	24.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591002000	SG-8018CE	24.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591002100	SG-8018CE	40.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591002200	SG-8018CE	40.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591002300	SG-8018CE	16.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591002400	SG-8018CE	16.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591002500	SG-8018CE	12.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591002600	SG-8018CE	12.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591002700	SG-8018CE	10.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591002800	SG-8018CE	10.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591002900	SG-8018CE	27.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591003000	SG-8018CE	27.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591003100	SG-8018CE	32.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591003200	SG-8018CE	32.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591003300	SG-8018CE	8.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005591003400	SG-8018CE	8.000000 MHz	3.20 x 2.50 x 1.20 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
