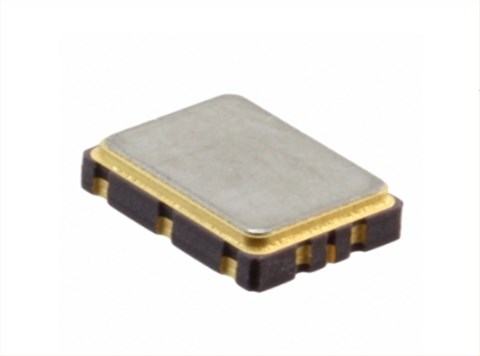

Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振，尺寸7.0×5.0mm，頻率24.576MHZ，歐美差分晶振，進口差分晶體振蕩器，LVDS輸出晶振，高性能差分晶振，六腳差分晶振，貼片差分晶振，7050mm差分晶振，OSC有源差分晶振，有源貼片差分晶振，XO時鐘振蕩器，24.5760MHZ差分晶振，LVDS差分晶振，SMD差分晶振，低電壓差分振蕩器，低電流差分晶振，交換機差分晶振，低功耗差分晶振，藍牙模塊差分晶振，智能家居差分晶振，網絡設備差分晶振，無線應用差分晶振，通訊差分晶振，光模塊差分晶振，測量設備差分振蕩器，便攜式設備差分晶振，具有高質量低功耗的特點。

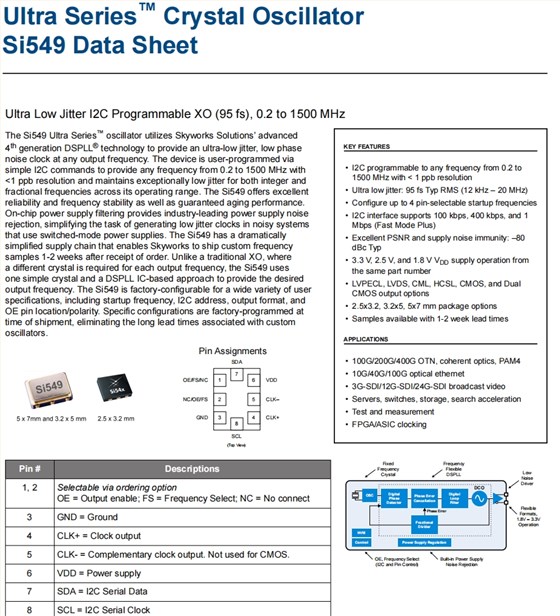

Si549 Ultra系列™ 振蕩器采用Skyworks Solutions的先進技術第四代DSPLL®技術，提供超低抖動、低相位任何輸出頻率的噪聲時鐘。該設備通過用戶編程簡單的I2C命令，提供從0.2到1500 MHz的任何頻率＜1ppb分辨率，并在整數和在其工作范圍內的分數頻率。Si549差分晶振LVDS提供了出色的可靠性和頻率穩定性以及有保證的老化性能。片上電源濾波提供業界領先的電源噪聲抑制，簡化了在噪聲系統中生成低抖動時鐘的任務使用開關模式電源。Si549具有顯著的簡化的供應鏈，使Skyworks能夠運送自定義頻率樣品在收到訂單后1-2周。Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振.

Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振 參數表

Parameter	Symbol	Test Condition/Comment	Min	Typ	Max	Unit
Temperature Range	TA		–40		85	ºC
Frequency Range	FCLK	LVPECL, LVDS, CML	0.2	—	1500	MHz
		HCSL	0.2	—	400	MHz
		CMOS, Dual CMOS	0.2		250	MHz
Supply Voltage	V DD	3.3 V	3.135	3.3	3.465	V
		2.5 V	2.375	2.5	2.625	V
		1.8 V	1.71	1.8	1.89	V
Supply Current	IDD	LVPECL (output enabled)		107	153	mA
		LVDS/CML (output enabled)	—	83	121	mA
		HCSL (output enabled)		86	126	mA
		HCSL-Fast (output enabled)	—	94	138	mA
		CMOS (output enabled)		87	127	mA
		Dual CMOS (output enabled)	—	92	141	mA
		Tristate Hi-Z (output disabled)		73	112	mA
Temperature Stability		Frequency stability Grade A	–20	—	20	ppm
		Frequency stability Grade B	–10		10	ppm
		Frequency stability Grade C	–7	—	7	ppm
Total Stability1	F STAB	Frequency stability Grade A	–50		50	ppm
		Frequency stability Grade B	–25	—	25	ppm
		Frequency stability Grade C	–20		20	ppm
Rise/Fall Time (20% to 80% VPP)	TR/TF	LVPECL/LVDS/CML	—	—	350	ps
		CMOS / Dual CMOS (CL= 5 pF)	—	0.5	1.5	ns
		HCSL, FCLK>50 MHz	—	—	550	ps
		HCSL-Fast, FCLK>50 MHz	—	—	275	ps
Duty Cycle	DC	All formats	45	—	55	%
Output Enable (OE), Frequency Select (FS0, FS1)2	VIH		0.7 × VDD			V
	VIL		—	—	0.3 × VDD	V
	TD	Output Disable Time, FCLK>10 MHz	—	—	3	µs
	TE	Output Enable Time, FCLK>10 MHz	—	—	20	µs
	T FS	Settling Time after FS Change			10	ms
Powerup Time	tOSC	Time from 0.9 × VDDuntil output fre- quency (FCLK) within spec	—	—	10	ms

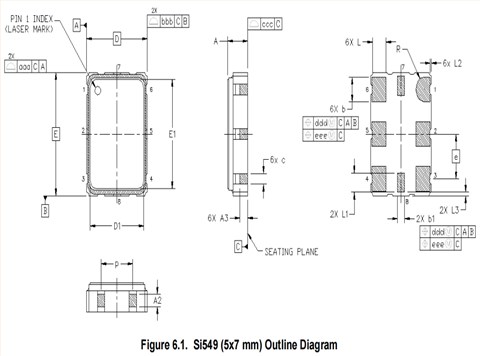

Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振 尺寸圖

OSC晶振產品特性:

I2C可編程至0.2至1500MHz，分辨率<1ppb

超低抖動：95 fs典型RMS（12kHz–20MHz）

最多配置4針可選啟動頻率

I2C接口支持100 kbps、400 kbps和1Mbps（快速模式+）

出色的PSNR和電源抗擾度：–80dBc類型

3.3 V、2.5 V和1.8 V VDD電源操作

相同的零件號

LVPECL、LVDS、CML、HCSL、CMOS和Dual CMOS輸出選項

2.5x3.2、3.2x5、5x7 mm封裝選項

樣品可用，交付周期為1-2周

更多相關Skyworks晶振型號

Mfr Part #	Mfr	歐美晶振描述	Series	Frequency	Output
549BAAB000212BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	LVDS
549BACB000148ACG	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ LVDS SMD	Ultra™ Si549	24.576 MHz	LVDS
549AAAC000118ACG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Ultra™ Si549	156.25 MHz	LVPECL
549BCCB002128ACG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS	Ultra™ Si549	200 MHz	LVDS
549CCCC000141ACG	Skyworks有源晶振	XTAL OSC XO 56.3200MHZ CMOS SMD	Ultra™ Si549	56.32 MHz	CMOS
549BABA000368ACG	Skyworks有源晶振	XTAL OSC XO 122.8800MHZ LVDS	Ultra™ Si549	122.88 MHz	LVDS
549AAAA000426ACG	Skyworks有源晶振	XTAL OSC XO 145.0000MHZ LVPECL	Ultra™ Si549	145 MHz	LVPECL
549BAAB001589ACG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS	Ultra™ Si549	125 MHz	LVDS
549BBAA001968ACG	Skyworks有源晶振	XTAL OSC XO 1.2000GHZ LVDS SMD	Ultra™ Si549	1.2 GHz	LVDS
549BAAC001741ACG	Skyworks有源晶振	XTAL OSC XO 70.6560MHZ LVDS SMD	Ultra™ Si549	70.656 MHz	LVDS
549BAAA000112ACG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Ultra™ Si549	10 MHz	LVDS
549AAAA000112ACG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Ultra™ Si549	10 MHz	LVPECL
549BAAB000118ACG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS	Ultra™ Si549	156.25 MHz	LVDS
549CCAC000141ACG	Skyworks有源晶振	XTAL OSC XO 56.3200MHZ CMOS SMD	Ultra™ Si549	56.32 MHz	CMOS
549CAAC000112ACG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Ultra™ Si549	10 MHz	CMOS
549BAAA001968ACG	Skyworks有源晶振	XTAL OSC XO 1.2000GHZ LVDS SMD	Ultra™ Si549	1.2 GHz	LVDS
549BACA001937ACG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS	Ultra™ Si549	125 MHz	LVDS
549BACA000112ACG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Ultra™ Si549	10 MHz	LVDS
549BCCB002127ACG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS	Ultra™ Si549	200 MHz	LVDS
549BCBA000122ACG	Skyworks有源晶振	XTAL OSC XO 1.0000GHZ LVDS SMD	Ultra™ Si549	1 GHz	LVDS
549CAAA000112ACG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Ultra™ Si549	10 MHz	CMOS
549BACB000112ACG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Ultra™ Si549	10 MHz	LVDS
549BCAB000112ACG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Ultra™ Si549	10 MHz	LVDS
549BCCB002129ACG	Skyworks有源晶振	XTAL OSC XO 199.0000MHZ LVDS	Ultra™ Si549	199 MHz	LVDS
549BCCB000126ACG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS	Ultra™ Si549	200 MHz	LVDS
549CBAC000508ACG	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ CMOS SMD	Ultra™ Si549	25 MHz	CMOS
549DACB001619ACG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CML SMD	Ultra™ Si549	156.25 MHz	CML
549ACAA000112ACG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Ultra™ Si549	10 MHz	LVPECL
549CCAC000118ACG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CMOS	Ultra™ Si549	156.25 MHz	CMOS
549GCDC002122ACG	Skyworks有源晶振	XTAL OSC XO 71.1350MHZ CMOS SMD	Ultra™ Si549	71.135 MHz	CMOS
549AAAA001372ACG	Skyworks有源晶振	XTAL OSC XO 7.0000MHZ LVPECL	Ultra™ Si549	7 MHz	LVPECL
549BCAA000133ACG	Skyworks有源晶振	XTAL OSC XO 500.0000MHZ LVDS	Ultra™ Si549	500 MHz	LVDS
549BCCB001125ACG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS	Ultra™ Si549	156.25 MHz	LVDS
549ACAA000111ACG	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ LVPECL	Ultra™ Si549	25 MHz	LVPECL
549DAAB001963BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	304.125 MHz	CML
549BCCB002127ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	200 MHz	LVDS
549CAAC000385BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	CMOS
549AAAA000426ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	145 MHz	LVPECL
549CAAC000385BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	CMOS
549CBAC000508ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	25 MHz	CMOS
549DAAA000485BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	625 MHz	CML
549BCCB002128ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	200 MHz	LVDS
549BAAA000798BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	1 MHz	LVDS
549BAAC000111BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	25 MHz	LVDS
549GAAA000956BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	6.78 MHz	CMOS
549BAAC000115BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	125 MHz	LVDS
549ABAB000115BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	125 MHz	LVPECL
549BCAA000131BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	120 MHz	LVDS
549CCAC002099BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	1 MHz	CMOS
549AAAA000112BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	LVPECL
549CAAC000306BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	22.5792 MHz	CMOS
549BBAA000368BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	122.88 MHz	LVDS
549BAAB000544BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVDS
549ABAA000131BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	120 MHz	LVPECL
549BCAC000177BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	297 MHz	LVDS
549BAAB000118ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVDS
549BAAB001623BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVDS
549BACA000420BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	644.53125 MHz	LVDS
549BACA001937ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	125 MHz	LVDS
549BCAC000118BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVDS
549CABC000121BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	100 MHz	CMOS
549CAAA000112ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	CMOS
549BABC002152BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	21.3333333 MHz	LVDS
549CAAC000306BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	22.5792 MHz	CMOS
549BAAC000115BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	125 MHz	LVDS
549BCCB002129ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	199 MHz	LVDS
549CAAA000112BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	CMOS
549GCDC002122ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	71.135 MHz	CMOS
549DACB001619ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	CML
549AAAA000112BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	LVPECL
549ABAA000112BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	LVPECL
549BACB000148ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	24.576 MHz	LVDS
549GCAC000111BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	25 MHz	CMOS
549CBAC000112BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	CMOS
549BACA000281BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	840 MHz	LVDS
549BAAC000111BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	25 MHz	LVDS
549GAAA000956BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	6.78 MHz	CMOS
549AAAA001372ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	7 MHz	LVPECL
549BCAA000133ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	500 MHz	LVDS
549BABC002152BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	21.3333333 MHz	LVDS
549CAAC001444BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	38.4 MHz	CMOS
549BBAA000313BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	300 MHz	LVDS
549AAAA000118BCG	Skyworks有源晶振	OSCILLATOR SMD晶振	Ultra™ Si549	156.25 MHz	LVPECL
549BAAB000212BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	LVDS
549CCAC000141ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	56.32 MHz	CMOS
549BCAA000131BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	120 MHz	LVDS
549BAAA000115BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	125 MHz	LVDS
549AAAA000118BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVPECL
549ACAA000112BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	LVPECL
549BAAB001269BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVDS
549BCAC000177BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	297 MHz	LVDS
549BAAA001968ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	1.2 GHz	LVDS
549CAAC000148BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	24.576 MHz	CMOS
549BAAC001741ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	70.656 MHz	LVDS
549ACAB000118BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVPECL
549ACAA000112ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	LVPECL
549BCAA000111BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	25 MHz	LVDS
549BCAA000121BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	100 MHz	LVDS
549BCCB001125ACGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVDS
549BACC000520BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVDS
549BAAC000544BCG	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVDS
549ACAA000118BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	156.25 MHz	LVPECL
549AADA000112BCGR	Skyworks有源晶振	OSCILLATOR SMD	Ultra™ Si549	10 MHz	LVPECL
