ELM3-12.000MHz-30-R80-D4Y-T,5032mm,AEL兩腳貼片晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELM3系列，產品編碼為：ELM3-12.000MHz-30-R80-D4Y-T，頻率為：12.000MHz，工作溫度范圍：-40℃至+85℃，頻率穩定性：±30ppm，頻率容差：±30ppm，負載電容：30pF，小體積晶振尺寸：5.0x3.2mm石英晶振，兩腳貼片晶振，石英晶體諧振器，無源晶振，石英晶振，SMD晶振，無鉛環保晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境等特點。被廣泛應用于：通訊設備晶振，汽車電子晶振，無線藍牙晶振，平板電腦晶振，智能家居晶振，安防設備等應用。
ELM3-12.000MHz-30-R80-D4Y-T,5032mm,AEL兩腳貼片晶振，產品特點：
●SMD石英晶體諧振器
●公差： ±15ppm可用貼片晶振
●工作溫度-10°C至+60°C至-40°C至+125°C

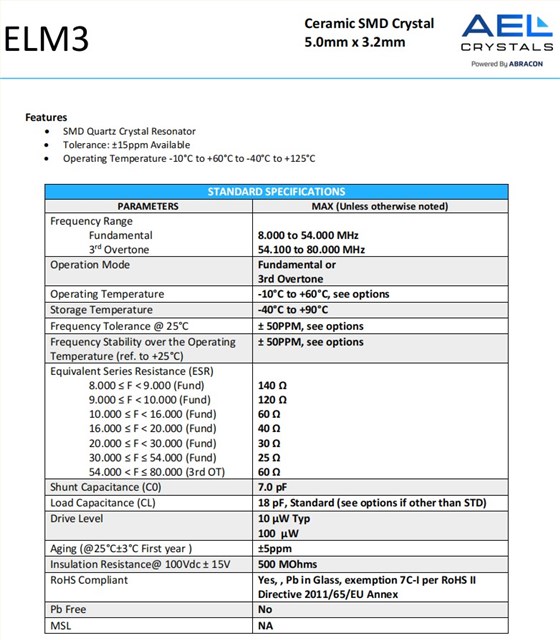

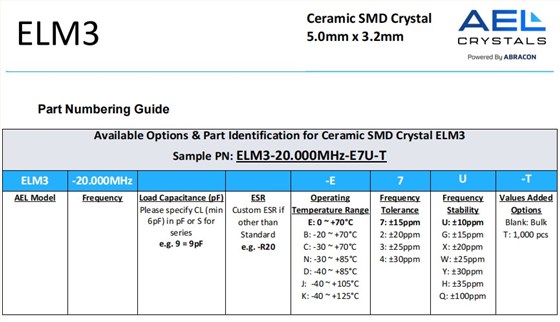

ELM3-12.000MHz-30-R80-D4Y-T,5032mm,AEL兩腳貼片晶振,參數表
| STANDARD SPECIFICATIONS | |||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||
|
Frequency Range Fundamental 3rdOvertone |
12.000MHz | ||||||||||||
| Operation Mode |
Fundamental or 3rd Overtone |
||||||||||||
| Operating Temperature | -10°C to +60°C, see options | ||||||||||||
| Storage Temperature | -40°C to +90°C | ||||||||||||
| Frequency Tolerance @ 25°C | ± 50PPM, see options | ||||||||||||
|
Frequency Stability over the Operating Temperature (ref. to +25°C) |
± 50PPM, see options | ||||||||||||
|
Equivalent Series Resistance (ESR) 8.000 ≤ F < 9.000 (Fund) 9.000 ≤ F < 10.000 (Fund) 10.000 ≤ F < 16.000 (Fund) 16.000 ≤ F < 20.000 (Fund) 20.000 ≤ F < 30.000 (Fund) 30.000 ≤ F ≤ 54.000 (Fund) 54.000 < F ≤ 80.000 (3rd OT) |
140 Ω 120 Ω 60 Ω 40 Ω 30 Ω 25 Ω 60 Ω |
||||||||||||
| Shunt Capacitance (C0) | 7.0 pF | ||||||||||||
| Load Capacitance (CL) | 18 pF, Standard (see options if other than STD) | ||||||||||||
| Drive Level |
10 μW Typ 100 μW |
||||||||||||
| Aging (@25°C±3°C First year ) | ±5ppm | ||||||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | ||||||||||||
| RoHS Compliant |
Yes, , Pb in Glass, exemption 7C-I per RoHS II Directive 2011/65/EU Annex |
||||||||||||
| Pb Free | No | ||||||||||||
| MSL |
NA |
||||||||||||

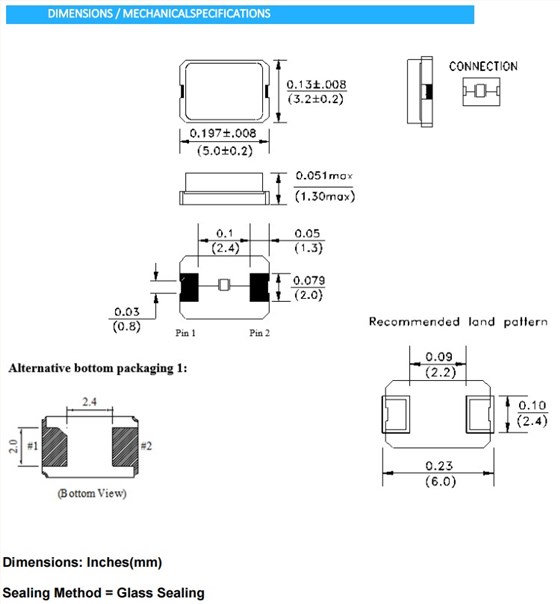

ELM3-12.000MHz-30-R80-D4Y-T,5032mm,AEL兩腳貼片晶振,尺寸圖
| 產品編碼 | 進口晶振 | 型號 | 頻率 | 負載電容 | 長度 | 寬度 | 高度 |
| ELLS-10.000MHz-20-R60-J-Q-F-T | AEL晶振 | ELLS | 10 MHz | 20 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-12.000MHz-18-R60-A-4-F-T | AEL晶振 | ELLS | 12 MHz | 18 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-13.560MHz-10-R35-A4Y-F-T | AEL晶振 | ELLS | 13.56 MHz | 10 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-30.000MHz-10-R50-B1U-F-T | AEL晶振 | ELLS | 30 MHz | 10 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-A4-F-T | AEL晶振 | ELLS | 4 MHz | 16 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-B1X-F-T | AEL晶振 | ELLS | 4 MHz | 16 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-30-R120-D4-F-T | AEL晶振 | ELLS | 4 MHz | 30 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-8.000MHz-16-R45-D4-F-T | AEL晶振 | ELLS | 8 MHz | 16 pF | 12.3mm | 4.6mm | 4.3mm |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | ELM10 | 16 MHz | 8 pF | 2.5mm | 2mm | 0.5mm |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | 24 MHz | 16 pF | 2.5mm | 2mm | 0.5mm |
| ELM11-32.000MHz-10-R60-D1X-T | AEL晶振 | ELM11 | 32 MHz | 10 pF | 2mm | 1.6mm | 0.5mm |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | 24 MHz | 6 pF | 1.6mm | 1.2mm | 0.4mm |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | ELM3 | 12 MHz | 30 pF | 5mm | 3.2mm | 1mm |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | ELM3 | 14 MHz | 30 pF | 5mm | 3.2mm | 1mm |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | 24 MHz | 18 pF | 5mm | 3.2mm | 1mm |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | ELM3 | 8.057 MHz | 18 pF | 5mm | 3.2mm | 1mm |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL晶振 | ELM8 | 12 MHz | 10 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-12.5829MHz-16-R60-1U-T | AEL晶振 | ELM8 | 12.5829 MHz | 16 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-14.000MHz-16-R150-B1U-T | AEL晶振 | ELM8 | 14.8 MHz | 16 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-18.432MHz-16-R80-DQ-T | 石英晶振 | ELM8 | 18.432 MHz | 16 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-10-R60-D1W-T | AEL晶振 | ELM8 | 24 MHz | 10 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-18-R60-B1W-T | AEL晶振 | ELM8 | 24 MHz | 18 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-9-R40-N1U-T | AEL晶振 | ELM8 | 24 MHz | 9 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-26.000MHz-18-R60-B1U-T | AEL晶振 | ELM8 | 26 MHz | 18 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-16-R40-B1U-T | AEL晶振 | ELM8 | 32 MHz | 16 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-9-R40-D1G-T | AEL晶振 | ELM8 | 32 MHz | 9 pF | 3mm | 2.5mm | 0.6mm |
| ELS05-32.768kHz-9-T | AEL晶振 | ELS05 | 32.768 kHz | 9 pF | 1.6mm | 1mm | 0.5mm |
| ELS06-32.768kHz-9-T | AEL晶振 | ELS06 | 32.768 kHz | 9 pF | 2mm | 1.2mm | 0.6mm |
| ELS07-32.768kHz-6-T | AEL晶振 | ELS07 | 32.768 kHz | 6 pF | 3.2mm | 1.5mm | 0.75mm |
| ELS07-32.768kHz-T | AEL晶振 | ELS07 | 32.768 kHz | 12.5 pF | 3.2mm | 1.5mm | 0.75mm |
| ELS13-32.768kHz-7-T | AEL晶振 | ELS13 | 32.768 kHz | 7 pF | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-9-T | AEL晶振 | ELS13 | 32.768 kHz | 9 pF | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | ELS13 | 32.768 kHz | 12.5 pF | 7mm | 1.5mm | 1.4mm |
| ELS25-32.768kHz-6-2-T | AEL晶振 | ELS25 | 32.768 kHz | 6 pF | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | ELS25 | 32.768 kHz | 12.5 pF | 8mm | 3.8mm | 2.4mm |
