C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振

頻率：36MHZ

尺寸：7.0×5.0mm

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振，尺寸7.0×5.0mm，頻率36MHZ，美國Aker晶振，歐美進口晶振，安基無源晶振，石英振動子，無源貼片晶振，石英晶振，石英貼片晶振，石英晶體諧振器，7050mm石英晶振，無源晶振，SMD晶振，四腳貼片晶振，無鉛環保晶振，輕薄型晶振，低功耗晶振，低耗能晶振，低損耗晶振，低成本晶振，高質量晶振，高性能晶振，高品質晶振，影音系統晶振，娛樂設備晶振，小型設備晶振，便攜式設備晶振，移動通信晶振，安防專用晶振，播放器晶振，可穿戴設備晶振，數字視頻晶振，具有輕薄型高品質的特點，SMD晶振產品適合用于影音系統，娛樂設備，小型設備，便攜式設備，移動通信，安防，播放器，可穿戴設備，數字視頻等領域。C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振.

訂購熱線：86-0755-27838351

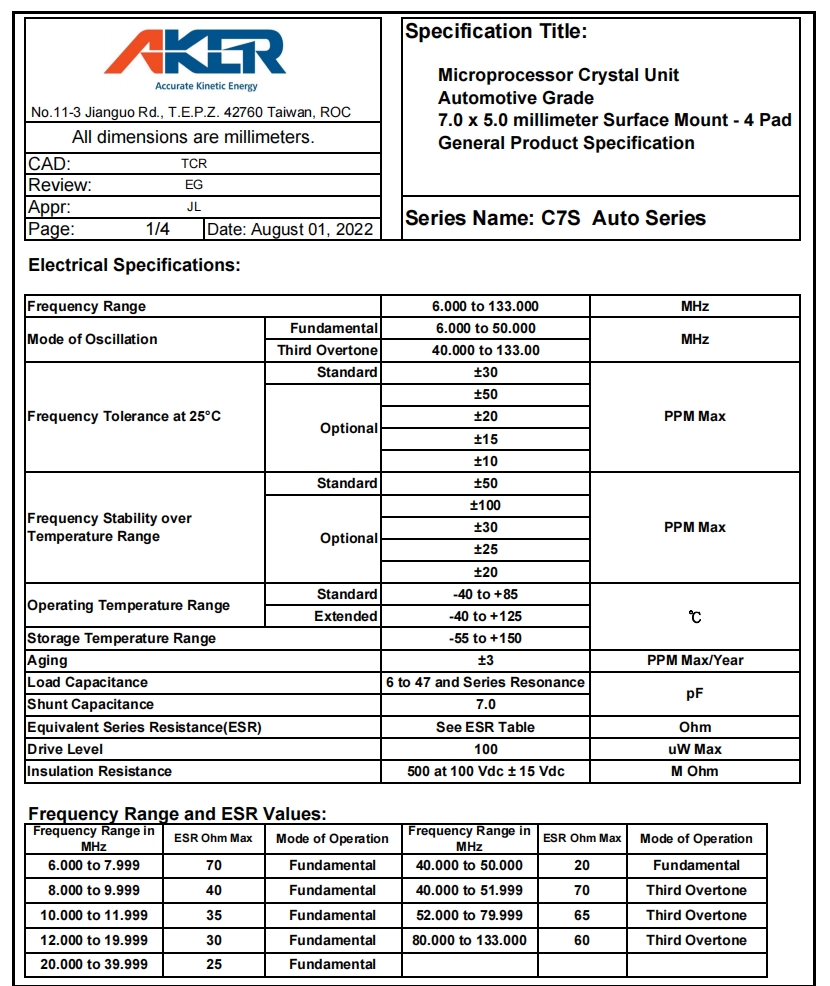

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振 參數表

Frequency Range

36.000

MHz

Mode of Oscillation

Fundamental

6.000 to 50.000

MHz

Third Overtone

40.000 to 133.00

Frequency Tolerance at 25°C

Standard

±30

PPM Max

Optional

±50

±20

±15

±10

Frequency Stability over
Temperature Range

Standard

±50

PPM Max

Optional

±100

±30

±25

±20

Operating Temperature Range

Standard

-40 to +85

℃

Extended

-40 to +125

Storage Temperature Range

-55 to +150

Aging

±3

PPM Max/Year

Load Capacitance

6 to 47 and Series Resonance

Shunt Capacitance

7.0

Equivalent Series Resistance(ESR)

See ESR Table

Ohm

Drive Level

100

uW Max

Insulation Resistance

500 at 100 Vdc ± 15 Vdc

M Ohm

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振 尺寸圖

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振

石英晶體產品特點：

尺寸7.0x5.0mm

低老化特性

符合RoHS標準且無鉛

Mfr Part #	晶振廠家	Description	Series	Frequency	Frequency Stability
C3E-24.000-12-1530-X-R	Aker Technology Corp	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz	±30ppm
C3E-24.000-12-3030-X-R	Aker Technology Corp	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz	±30ppm
C3E-24.000-18-1010-R	Aker Technology Corp	CRYSTAL 24.0000MHZ 18PF SMD	C3E	24 MHz	±10ppm
C3E-20.000-10-1530-X-R	Aker Technology Corp	CRYSTAL 20.0000MHZ 10PF SMD	C3E	20 MHz	±30ppm
C3E-25.000-8-1530-X-R	Aker Technology Corp	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz	±30ppm
C3E-24.000-12-1015-X-R	Aker Technology Corp	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz	±15ppm
C3E-24.000-10-1015-X-R	Aker Technology Corp	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz	±15ppm
C3E-16.000-12-1015-X-R	Aker Technology Corp	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz	±15ppm
C3E-40.000-10-1015-X-R	Aker Technology Corp	CRYSTAL 40.0000MHZ 10PF SMD	C3E	40 MHz	±15ppm
C3E-32.000-8-1015-X-R	Aker Technology Corp	CRYSTAL 32.0000MHZ 8PF SMD	C3E	32 MHz	±15ppm
C3E-32.000-10-1015-X-R	Aker Technology Corp	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz	±15ppm
C3E-32.000-12-1015-X-R	Aker Technology Corp	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz	±15ppm
C2E-24.000-10-1010-R	Aker Technology Corp	CRYSTAL 24.0000MHZ 10PF SMD	C2E	24 MHz	±10ppm
C2E-16.000-12-3030-X-R	Aker Technology Corp	CRYSTAL 16.0000MHZ 12PF SMD	C2E	16 MHz	±30ppm
C2E-25.000-10-3030-X-R	Aker Technology Corp	CRYSTAL 25.0000MHZ 10PF SMD	C2E	25 MHz	±30ppm
C2E-16.000-8-1530-X-R	Aker Technology Corp	CRYSTAL 16.0000MHZ 8PF SMD	C2E	16 MHz	±30ppm
C3E-8.000-10-3030-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 10PF SMD	C3E	8 MHz	±30ppm
C3E-8.000-10-3030-X-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 10PF SMD	C3E	8 MHz	±30ppm
C3E-8.000-18-3030-X-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz	±30ppm
C3E-8.000-18-3030-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz	±30ppm
C1E-32.000-10-1015-X-R	Aker Technology Corp	CRYSTAL 32.0000MHZ 10PF SMD	C1E	32 MHz	±15ppm
C1E-25.000-20-2030-R	Aker Technology Corp	CRYSTAL 25.0000MHZ 20PF SMD	C1E	25 MHz	±30ppm
C1E-24.000-10-1015-R	Aker Technology Corp	CRYSTAL 24.0000MHZ 10PF SMD	C1E	24 MHz	±15ppm
C1E-24.000-10-1010-R	Aker Technology Corp	CRYSTAL 24.0000MHZ 10PF SMD	C1E	24 MHz	±10ppm
C1E-32.000-8-1515-R	Aker Technology Corp	CRYSTAL 32.0000MHZ 8PF SMD	C1E	32 MHz	±15ppm
C3E-16.000-12-1015-X-M	Aker Technology Corp	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz	±15ppm
C16-32.000-8-3030-X-R	Aker Technology Corp	CRYSTAL 32.0000MHZ 8PF SMD	C16	32 MHz	±30ppm
C16-26.000-8-1520-R	Aker Technology Corp	CRYSTAL 26.0000MHZ 8PF SMD	C16	26 MHz	±20ppm
C5S-26.000-16-1010-R	Aker Technology USA	CRYSTAL 26.0000MHZ 16PF SMD	C5S	26 MHz	±10ppm
C5S-8.000-18-3030-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 18PF SMD	C5S	8 MHz	±30ppm
CAA-4.000-18-3050-X-R	Aker Technology Corp	CRYSTAL 4MHZ 18PF SMD	CAA	4 MHz	±50ppm
CAA-11.0592-18-3050-R	Aker Technology Corp	CRYSTAL 11.0592MHZ 18PF SMD	CAA	11.0592 MHz	±50ppm
CAA-8.000-18-3050-X-R	Aker Technology Corp	CRYSTAL 8MHZ 18PF SMD	CAA	8 MHz	±50ppm
CAA-40.000-18-3050-R	Aker Technology Corp	CRYSTAL 40MHZ 18PF SMD	CAA	40 MHz	±50ppm
C3E-24.000-9-1010-R	Aker Technology Corp	CRYSTAL 24MHZ 9PF SMD	C3E	24 MHz	±10ppm
C3E-12.000-12-1020-X-R	Aker Technology Corp	CRYSTAL 12MHZ 12PF SMD	C3E	12 MHz	±10ppm
C3E-12.000-18-1020-X-R	Aker Technology Corp	CRYSTAL 12MHZ 18PF SMD	C3E	12 MHz	±10ppm
C3E-25.000-20-1015-X-R	Aker Technology Corp	CRYSTAL 25MHZ 20PF SMD	C3E	25 MHz	±15ppm
C3E-24.000-9-1015-X-R	Aker Technology Corp	CRYSTAL 24MHZ 9PF SMD	C3E	24 MHz	±15ppm
C3E-16.000-9-1015-X-R	Aker Technology Corp	CRYSTAL 16MHZ 9PF SMD	C3E	16 MHz	±15ppm
C2E-12.000-18-1020-R	Aker Technology Corp	CRYSTAL12MHZ 18PF SMD	C2E	12 MHz	±20ppm
C3E-8.000-20-1020-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 12PF SMD	C3E	8 MHz	±20ppm
C3E-8.000-18-1020-X-R	Aker Technology Corp	CRYSTAL 8MHZ 18PF SMD	C3E	8 MHz	±20ppm
C3E-8.000-8-1015-R	Aker Technology Corp	CRYSTAL 8MHZ 8PF SMD	C3E	8 MHz	±10ppm
C3E-12.000-8-2050-X1-R	Aker Technology Corp	CRYSTAL 12MHZ 8PF SMD AEC-Q200	C3E X1	12 MHz	±50ppm
C3E-16.000-10-3050-X1-R	Aker Technology Corp	CRYSTAL 16MHZ 10PF SMD AEC-Q200	C3E X1	16 MHz	±50ppm
C16-32.000-8-1515-X-R	Aker Technology Corp	CRYSTAL 32MHZ 8PF SMD	C16	32 MHz	±15ppm
C3E-20.000-8-3050-X1-R	Aker Technology Corp	CRYSTAL 20MHZ 8PF SMD AEC-Q200	C3E X1	20 MHz	±50ppm
C2E-12.000-18-1020-X-R	Aker Technology Corp	CRYSTAL12MHZ 18PF SMD	C2E	12 MHz	±20ppm
C5S-12.000-18-1020-R	Aker Technology Corp	CRYSTAL 12.0000MHZ 18PF SMD	C5S	12 MHz	±20ppm
C3E-8.000-18-1020-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz	±20ppm
C3E-8.000-12-1020-M	Aker Technology Corp	CRYSTAL 8MHZ 12PF SMD	C3E	8 MHz	±10ppm
C2E-12.000-8-2050-X1-R	Aker Technology Corp	CRYSTAL 12MHZ 8PF SMD AEC-Q200	C2E X1	12 MHz	±50ppm
C3E-16.000-10-2050-X1-R	Aker Technology Corp	CRYSTAL 10MHZ 10PF SMD AEC-Q200	C3E X1	10 MHz	±50ppm
C3E-30.000-8-2050-X1-R	Aker Technology Corp	CRYSTAL 30MHZ 8PF SMD AEC-Q200	C3E X1	30 MHz	±50ppm
C7S-12.000-12-3030-X-R	Aker Technology Corp	CRYSTAL 12MHZ 12PF SMD	C7S	12 MHz	±30ppm
C7S-8.000-18-1020-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 18PF SMD	C7S	8 MHz	±20ppm
C7S-8.000-18-1030-X-R	Aker Technology Corp	CRYSTAL 8MHZ 18PF SMD	C7S	8 MHz	±30ppm
CA4-16.000-18-3050-R	Aker Technology Corp	CRYSTAL 16MHZ 18PF SMD	CA4	16 MHz	±50ppm
CA4-8.000-16-3050-R	Aker Technology Corp	CRYSTAL 8.000MHZ 16PF SMD	CA4	8 MHz	±50ppm
C3E-8.000-10-1020-M	Aker Technology Corp	CRYSTAL 8MHZ 10PF SMD	C3E	8 MHz	±20ppm
C16-96.000-8-1520-X2-R	Aker Technology Corp	CRYSTAL 96MHZ 8PF SMD	-	96 MHz	±15ppm
C1E-76.800-10-1012-X-M	Aker Technology Corp	CRYSTAL 76.8MHZ 10PF SMD	C1E	76.8 MHz	±10ppm
