康華爾電子成立至今已有20多年,是國內數一數二的晶振廠家0755-27838351,專業研發生產銷售石英晶振,32.768K晶振,石英晶體諧振器,貼片晶振,SAW濾波器等.采用無鉛環保材料生產,具有精度穩定,小體積,重量輕等特點.國產晶振就選康華爾電子,質量好,精度高,價格優勢.
康華爾電子多年來在競爭激烈的市場中,以技術占領市場,以質量贏得客戶,是國內口碑極高的晶振供應商.并且憑借自身的努力代理臺灣進口晶振多個品牌,TXC晶振,鴻星晶振,加高晶振,亞陶晶振等.康華爾電子所提供的臺產晶振,均符合德國ROHS環保指令,具有高質量,高可靠使用特性,咨詢選購熱線0755-27838351.
日本進口晶振在國內口碑一流,高端智能產品使用晶振大都會選擇日產晶振作為首選.康華爾電子憑借自身的努力同時代理KDS晶振,愛普生晶振,精工晶體,京瓷晶振等品牌.所代理石英晶振,石英晶體振蕩器,貼片晶體均符合歐盟ROHS環保要求,具有高精度,高品質,低插損,耐高溫等特點.
康華爾電子是國內優秀的歐美進口晶振供貨商0755-27838351,多年來憑借自身的努力,獲得CTS晶振,FOX晶振,Sitime晶振,瑞康晶振等代理權限.所代理進口晶振,歐美晶振均符合歐盟ROHS環保指令,并且獲得ISO國際質量管理體系認證.市場常用進口晶振封裝型號康華爾電子均有備貨,可免費提供現貨樣品以及晶振技術解決方案.
32.768K是晶振頻率中最容易讓人記住的數字,32.768K晶振素來有時鐘晶振的稱謂,只要跟數字顯示以及時間相關的產品都少不了一款32.768K晶振.根據不同的產品需求主要分為圓柱晶振和32.768K貼片晶振.常見封裝有2x6,3x8,7.0x1.5,3.2x1.5,2.0x1.2等體積.康華爾電子提供各種32.768K晶振,音叉表晶,價格優質,咨詢熱線0755-27838351.
有源晶振是一款自身帶有電源電壓功能的石英晶體振蕩器,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍：1.8V~5 V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本W(wǎng)LAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
康華爾電子擁有先進的設備,一流的生產技術,致力于為用戶提供小型,薄型,高精密石英晶振,貼片晶體,石英晶體振蕩器.多年來康華爾電子通過自身努力,獲得多個進口貼片晶振品牌代理權限,比如,KDS晶振,NDK晶振,京瓷晶振,TXC晶振,鴻星晶振,CTS晶振,IDT晶振等.康華爾進口晶振代理商,所提供產品均符合國際ROHS環保指令,并且獲得ISO9001國際認證,產品價格優勢,交期快,咨詢熱線0755-27838351.
中國電信與谷歌和華為Mate50蘋果iPhone14衛星通信通話SG5032VAN愛普生晶振X1G004261007100

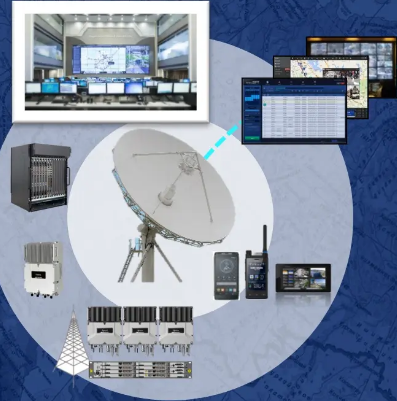

谷歌或通過Android14大版本更新引入對衛星連接功能的支持,或許也是嘗試性的.畢竟谷歌只做平臺,具體的硬件和通信運營需要業界支持.
從華為在Mate50上搶先發布衛星通信功能這一動作來看,愛普生晶振似乎他們也判斷蘋果不會馬上推出衛星通信功能.
在衛星通信功能方面華為已經搶先一步推出了短報文功能,雖然不能打電話,也不能上網.但對于野外探險以及特殊需求的市場來說是非常有用的,對于衛星通信的發展也是一大進步.
如果蘋果在歐美推出衛星通信功能,而不在中國市場提供,那可能會影響其在中國市場的形象和地位.因此推測iPhone14仍然推出完善的衛星通話功能.

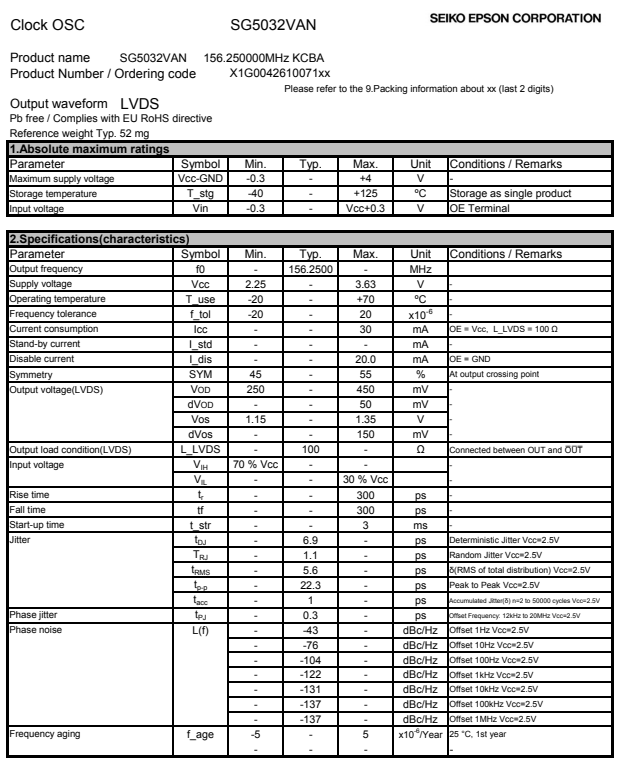

SG5032VAN愛普生晶振X1G004261007100,華為Mate50蘋果iPhone14衛星通信差分晶振
| 愛普生有源晶振編碼 | 型號 | 頻率 | 長X寬X高 | 輸出波 | 電源電壓 | 工作溫度 | 頻差 |
| X1G004261006900 | SG5032VAN | 150.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C | +/-20 ppm |
| X1G004261007100 | SG5032VAN | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C | +/-20 ppm |
| X1G004261010200 | SG5032VAN | 250.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004261010700 | SG5032VAN | 153.600000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004261011400 | SG5032VAN | 78.125000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004261011900 | SG5032VAN | 120.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004261012100 | SG5032VAN | 644.531250 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004261012500 | SG5032VAN | 148.351600 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004261012600 | SG5032VAN | 133.333300 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004261012800 | SG5032VAN | 250.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004261012900 | SG5032VAN | 135.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004261013100 | SG5032VAN | 322.265625 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004261013300 | SG5032VAN | 230.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004261013500 | SG5032VAN | 148.351600 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004261013600 | SG5032VAN | 644.531250 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004261013800 | SG5032VAN | 148.351600 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C | +/-20 ppm |
| X1G004261014100 | SG5032VAN | 161.132812 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004261014300 | SG5032VAN | 625.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004271000100 | SG5032EAN | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004271000400 | SG5032EAN | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004271001200 | SG5032EAN | 150.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004271001300 | SG5032EAN | 155.520000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004271001400 | SG5032EAN | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C | +/-50 ppm |
| X1G004271002000 | SG5032EAN | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
| X1G004271003300 | SG5032EAN | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C | +/-30 ppm |
對于蘋果公司來說,推出一項新的功能勢必是全球性的,或者說能在全球大部分范圍內都能使用的功能.因此具有上網功能的衛星通信服務或許離我們還有一段距離.
SG5032VAN愛普生晶振X1G004261007100,華為Mate50蘋果iPhone14衛星通信差分晶振
