EC2625TS-66.000M,EC26系列7050mm晶振,Ecliptek導航晶振

頻率：66MHz

尺寸：7.0x5.0mm

EC2625TS-66.000M,EC26系列7050mm晶振,Ecliptek導航晶振，美國進口晶振，Ecliptek晶振，日蝕晶振，型號：EC26系列晶振，編碼為：EC2625TS-66.000M，頻率：66MHz，電壓：3.3V，頻率穩定性：±25ppm，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：7.0x5.0mm，四腳貼片晶振，石英晶振，CMOS輸出晶振，石英晶體振蕩器，7050晶振，有源晶振。具有超小型，輕薄型，高品質，高性能等特點。應用于：通訊設備晶振，無線藍牙晶振，安防設備晶振，物聯網等應用。

訂購熱線：86-0755-27838351

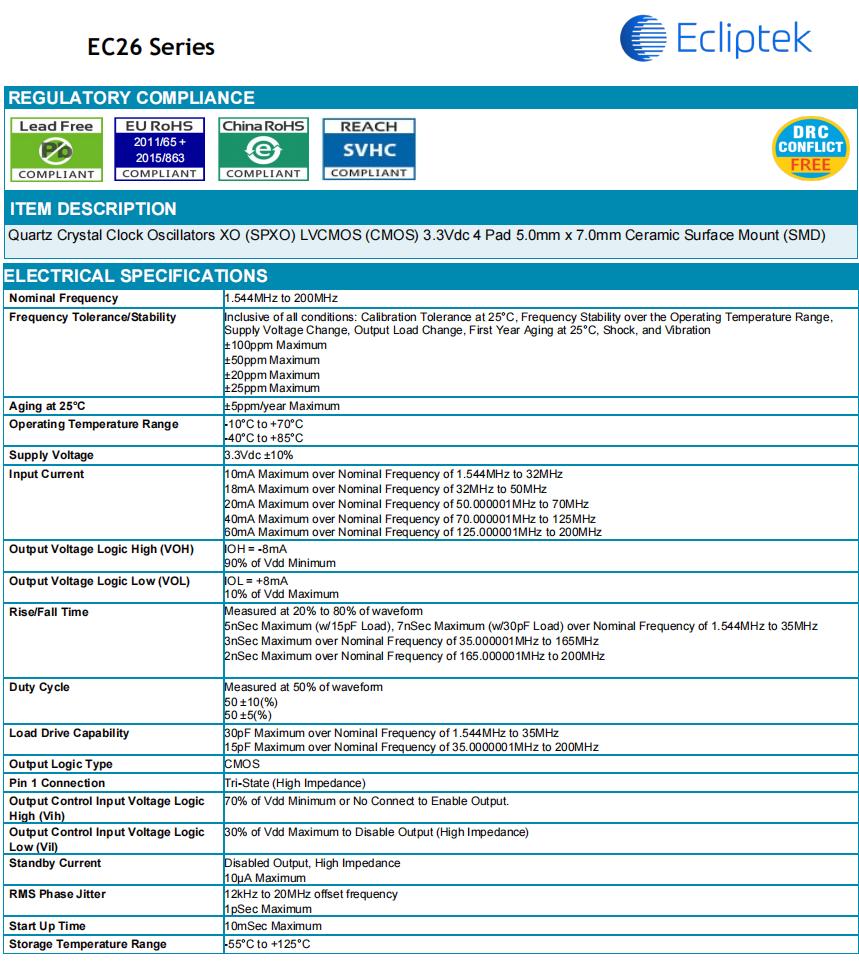

EC2625TS-66.000M,EC26系列7050mm晶振,Ecliptek導航晶振,參數表

Nominal Frequency			66.000 MHz
Frequency Tolerance/Stability			Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration ±100ppm Maximum ±50ppm Maximum ±20ppm Maximum ±25ppm Maximum
Aging at 25°C			±5ppm/year Maximum
Operating Temperature Range			- 10°C to +70°C -40°C to +85°C
Supply Voltage			3.3Vdc ±10%
Input Current			10mA Maximum over Nominal Frequency of 1.544MHz to 32MHz 18mA Maximum over Nominal Frequency of 32MHz to 50MHz 20mA Maximum over Nominal Frequency of 50.000001MHz to 70MHz 40mA Maximum over Nominal Frequency of 70.000001MHz to 125MHz 60mA Maximum over Nominal Frequency of 125.000001MHz to 200MHz
Output Voltage Logic High (VOH)			IOH = -8mA 90% of Vdd Minimum
Output Voltage Logic Low (VOL)			IOL = +8mA 10% of Vdd Maximum
Rise/Fall Time			Measured at 20% to 80% of waveform 5nSec Maximum (w/15pF Load), 7nSec Maximum (w/30pF Load) over Nominal Frequency of 1.544MHz to 35MHz 3nSec Maximum over Nominal Frequency of 35.000001MHz to 165MHz 2nSec Maximum over Nominal Frequency of 165.000001MHz to 200MHz
Duty Cycle			Measured at 50% of waveform 50 ±10(%) 50 ±5(%)
Load Drive Capability			30pF Maximum over Nominal Frequency of 1.544MHz to 35MHz 15pF Maximum over Nominal Frequency of 35.0000001MHz to 200MHz
Output Logic Type			CMOS
Pin 1 Connection			Tri-State (High Impedance)
Output Control Input Voltage Logic High (Vih)			70% of Vdd Minimum or No Connect to Enable Output.
Output Control Input Voltage Logic Low (Vil)			30% of Vdd Maximum to Disable Output (High Impedance)
Standby Current			Disabled Output, High Impedance 10µA Maximum
RMS Phase Jitter			12kHz to 20MHz offset frequency 1pSec Maximum
Start Up Time			10mSec Maximum
Storage Temperature Range			-55°C to +125°C

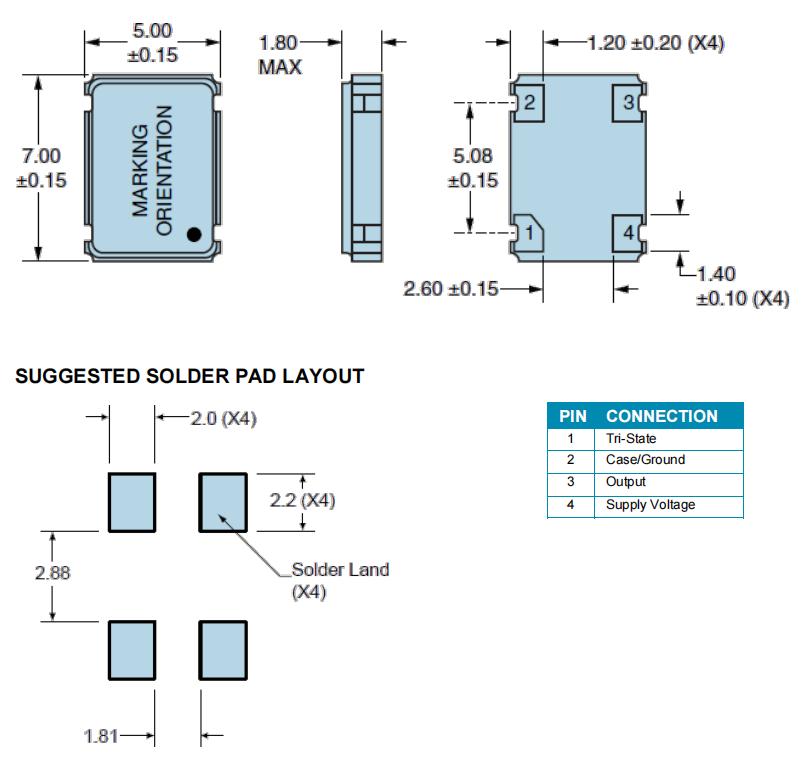

EC2625TS-66.000M,EC26系列7050mm晶振,Ecliptek導航晶振,尺寸圖

產品編碼	品牌	7050晶振	頻率	長	寬	高
EC2600ETTS-14.318M	Ecliptek晶振	EC26	14.318 MHz	7mm	5mm	1.6mm
EC2625ETTTS-14.7456M	Ecliptek晶振	EC26	14.7456 MHz	7mm	5mm	1.6mm
EC2625ETTTS-148.500M	Ecliptek晶振	EC26	148.5 MHz	7mm	5mm	1.6mm
EC2625ETTTS-22.1184M	Ecliptek晶振	EC26	22.1184 MHz	7mm	5mm	1.6mm
EC2625ETTTS-25.000M TR	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2625ETTTS-30.000M	Ecliptek晶振	EC26	30 MHz	7mm	5mm	1.6mm
EC2625ETTTS-50.000M TR	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2625ETTTS-54.000M	Ecliptek晶振	EC26	54 MHz	7mm	5mm	1.6mm
EC2625TS-10.000M TR	Ecliptek晶振	EC26	10 MHz	7mm	5mm	1.6mm
EC2625TS-125.000M TR	Ecliptek晶振	EC26	125 MHz	7mm	5mm	1.6mm
EC2625TS-24.000M TR	Ecliptek晶振	EC26	24 MHz	7mm	5mm	1.6mm
EC2625TS-25.000M TR	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2625TS-40.000M	Ecliptek晶振	EC26	40 MHz	7mm	5mm	1.6mm
EC2625TS-66.000M	Ecliptek晶振	EC26	66 MHz	7mm	5mm	1.6mm
EC2625TTS-64.000M TR	Ecliptek晶振	EC26	64 MHz	7mm	5mm	1.6mm
EC2645ETTS-16.000M TR	Ecliptek晶振	EC26	16 MHz	7mm	5mm	1.6mm
EC2645ETTS-25.000M TR	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2645ETTS-33.000M	Ecliptek晶振	EC26	33 MHz	7mm	5mm	1.6mm
EC2645ETTS-33.333M TR	Ecliptek晶振	EC26	33.333 MHz	7mm	5mm	1.6mm
EC2645ETTS-40.000M	Ecliptek晶振	EC26	40 MHz	7mm	5mm	1.6mm
EC2645ETTS-50.000M TR	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2645ETTS-6.144M	Ecliptek晶振	EC26	6.144 MHz	7mm	5mm	1.6mm
EC2645ETTTS-12.000M TR	Ecliptek晶振	EC26	12 MHz	7mm	5mm	1.6mm
EC2645ETTTS-125.000M	Ecliptek晶振	EC26	125 MHz	7mm	5mm	1.6mm
EC2645ETTTS-18.432M	Ecliptek晶振	EC26	18.432 MHz	7mm	5mm	1.6mm
EC2645ETTTS-18.432M TR	Ecliptek晶振	EC26	18.432 MHz	7mm	5mm	1.6mm
EC2645ETTTS-20.000M TR	Ecliptek晶振	EC26	20 MHz	7mm	5mm	1.6mm
EC2645ETTTS-25.000M	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2645ETTTS-25.000M TR	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2645ETTTS-32.000M TR	Ecliptek晶振	EC26	32 MHz	7mm	5mm	1.6mm
EC2645ETTTS-4.000M TR	Ecliptek晶振	EC26	4 MHz	7mm	5mm	1.6mm
EC2645ETTTS-40.000M	Ecliptek晶振	EC26	40 MHz	7mm	5mm	1.6mm
EC2645ETTTS-40.000M TR	Ecliptek晶振	EC26	40 MHz	7mm	5mm	1.6mm
EC2645ETTTS-50.000M TR	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2645TS-20.000M	Ecliptek晶振	EC26	20 MHz	7mm	5mm	1.6mm
EC2645TS-24.576M TR	Ecliptek晶振	EC26	24.576 MHz	7mm	5mm	1.6mm
EC2645TS-25.000M	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2645TS-25.000M TR	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2645TS-33.333M TR	Ecliptek晶振	EC26	33.333 MHz	7mm	5mm	1.6mm
EC2645TS-40.000M TR	Ecliptek晶振	EC26	40 MHz	7mm	5mm	1.6mm
EC2645TTS-100.000M TR	Ecliptek晶振	EC26	100 MHz	7mm	5mm	1.6mm
EC2645TTS-106.250M TR	Ecliptek晶振	EC26	106.25 MHz	7mm	5mm	1.6mm
EC2645TTS-125.000M TR	Ecliptek晶振	EC26	125 MHz	7mm	5mm	1.6mm
EC2645TTS-16.000M	Ecliptek晶振	EC26	16 MHz	7mm	5mm	1.6mm
EC2645TTS-20.000M TR	Ecliptek晶振	EC26	20 MHz	7mm	5mm	1.6mm
EC2645TTS-25.000M TR	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2645TTS-32.000M	Ecliptek晶振	EC26	32 MHz	7mm	5mm	1.6mm
EC2645TTS-33.000M	Ecliptek晶振	EC26	33 MHz	7mm	5mm	1.6mm
EC2645TTS-33.000M TR	Ecliptek晶振	EC26	33 MHz	7mm	5mm	1.6mm
EC2645TTS-38.000M	Ecliptek晶振	EC26	38 MHz	7mm	5mm	1.6mm
EC2645TTS-50.000M TR	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2645TTS-66.000M TR	Ecliptek晶振	EC26	66 MHz	7mm	5mm	1.6mm
