KX-8T,4025mm,石英貼片晶振,Geyer格耶晶振,水晶振動子

頻率：12.0MHz~60.0MHz

尺寸：4.0x2.5x0.8mm

KX-8T,4025mm,石英貼片晶振,Geyer格耶晶振,水晶振動子，丹麥進口晶振，Geyer格耶電子晶振，型號：KX-8T晶振，頻率范圍為：12.0MHz~60.0MHz，小體積貼片晶振，尺寸：4.0x2.5x0.8mm封裝，四腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振，工作溫度范圍：-40℃至+85℃。具有超小型，輕薄型，高可靠性，高性能，高品質，耐熱及耐環境等特點。耐高溫晶振，被廣泛應用于：移動通訊設備，無線網絡，藍牙模塊，汽車影音，車載控制器，平板電腦，數碼電子晶振，游戲機設備，安防設備，汽車電子，智能家居等應用。

訂購熱線：86-0755-27838351

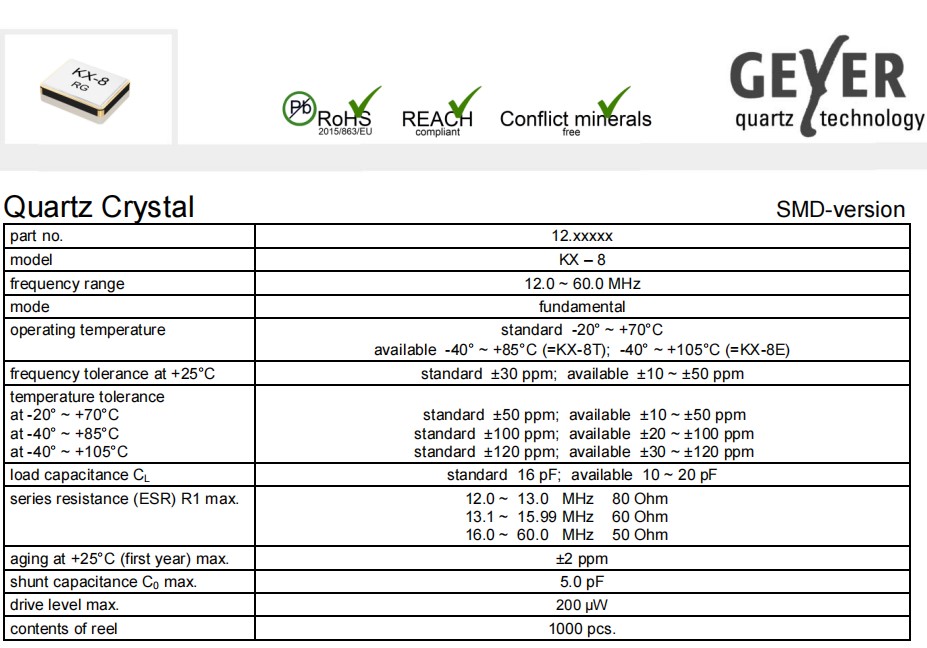

KX-8T,4025mm,石英貼片晶振,Geyer格耶晶振,水晶振動子,參數表

part no.	12.xxxxx
model	KX - 8
frequency range	12.0 ~ 60.0 MHz
mode	fundamental
operating temperature	standard -20° ~ +70°C available -40° ~ +85°C (=KX-8T) -40° ~ +105°C (=KX-8E)
frequency tolerance at +25°C	standard ±30 ppm; available ±10 ~ ±50 ppm
temperature tolerance at -20° ~ +70°C at -40° ~ +85°C at -40° ~ +105°C	standard ±50 ppm; available ±10 ~ ±50 ppm standard ±100 ppm; available ±20 ~ ±100 ppm standard ±120 ppm; available ±30 ~ ±120 ppm
load capacitance CL	standard 16 pF; available 10 ~ 20 pF
series resistance (ESR) R1 max.	12.0 ~ 13.0 MHz 80 Ohm 13.1 ~ 15.99 MHz 60 Ohm 16.0 ~ 60.0 MHz 50 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0 max.	5.0 pF
drive level max.	200 µW
contents of reel	1000 pcs.

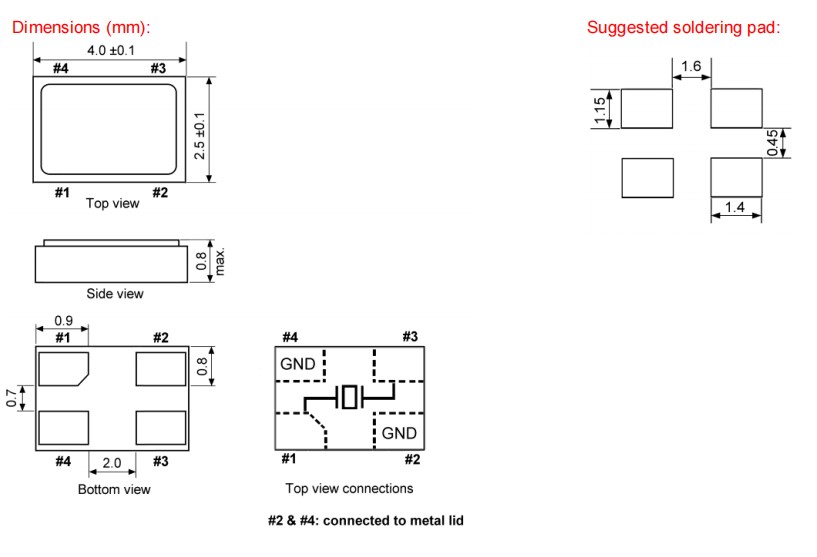

KX-8T,4025mm,石英貼片晶振,Geyer格耶晶振,水晶振動子,尺寸圖

編碼	品牌	描述	型號	頻率	頻率溫度性
12.88722	Geyer格耶	Crystal 16.0Mhz SMD KX-7T 12pF,	KX-7T	16 MHz	±25ppm
12.8902	Geyer格耶	Crystal 32.0Mhz SMD KX-9A 16pF,	KX-9A	32 MHz	±10ppm
12.60233	Geyer格耶	CRYSTAL 25.0MHZ 12PF SMD	KX-7T	25 MHz	±20ppm
12.8919	Geyer格耶	Crystal 8.0Mhz SMD KX-9AT 16pF,	KX-9AT	8 MHz	±30ppm
12.60208	Geyer晶振	CRYSTAL 26.0MHZ 8PF SMD	KX-7T	26 MHz	±10ppm
12.88664	Geyer格耶	Crystal 14.3181800Mhz 12pF SMD	KX-7	14.31818 MHz	±50ppm
12.89495	Geyer格耶	Crystal 8.0Mhz SMD KX-9BH 8pF, 4	KX-9BH	8 MHz	±50ppm
12.89103	Geyer格耶	Crystal 10.0Mhz SMD KX-9AE 16pF,	KX-9AE	10 MHz	±50ppm
12.887	Geyer格耶	Crystal 30.0Mhz 12pF SMD	KX-7	30 MHz	±50ppm
12.89131	Geyer格耶	Crystal 48.0Mhz SMD KX-9AT 16pF,	KX-9AT	48 MHz	±50ppm
12.89126	Geyer格耶	Crystal 13.560Mhz SMD KX-9AE 16p	KX-9A	13.56 MHz	±120ppm
12.6009	Geyer格耶	CRYSTAL 24.0MHZ 12PF SMD	KX-7T	24 MHz	±20ppm
12.88701	Geyer格耶	Crystal 40.0Mhz 12pF SMD	KX-7T	40 MHz	±100ppm
12.88493	Geyer格耶	Crystal 33.33Mhz SMD KX-7T 12pF,	KX-7T	33.33333 MHz	±100ppm
12.89078	Geyer格耶	Crystal 27.0Mhz SMD KX-9AT 16pF,	KX-9AT	27 MHz	±150ppm
12.88508	Geyer格耶	Crystal 24.0Mhz 12pF SMD	KX-7T	24 MHz	±50ppm
12.88711	Geyer格耶	Crystal 25.0Mhz SMD KX-7T 12pF,	KX-7T	25 MHz	±30ppm
12.89027	Geyer格耶	Crystal 25.0Mhz SMD KX-9A 16pF,	KX-9A	25 MHz	±30ppm
12.88721	Geyer格耶	Crystal 16.0Mhz 12pF SMD	KX-7T	16 MHz	±30ppm
12.88667	Geyer格耶	Crystal 25.0Mhz SMD KX-7 12pF, 4	KX-7	25 MHz	±50ppm
12.89017	Geyer格耶	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm
12.89082	Geyer格耶	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm
12.60075	Geyer格耶	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm
12.89155	Geyer格耶	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm
12.88522	Geyer格耶	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm
12.88752	Geyer格耶	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm
12.88565	Geyer格耶	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm
12.89209	Geyer格耶	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm
12.60024	Geyer格耶	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm
12.8873	Geyer格耶	Crystal 26.0Mhz 12pF SMD	KX-7T	26 MHz	±50ppm
12.88643	Geyer格耶	Crystal 14.3181800Mhz 12pF SMD	KX-7T	14.31818 MHz	±50ppm
12.88523	Geyer格耶	Crystal 40.0Mhz 12pF SMD	KX-7F	40 MHz	±50ppm
12.89288	Geyer格耶	Crystal 24.5760Mhz SMD KX-9AT 20	KX-9AT	24.576 MHz	±30ppm
12.89029	Geyer格耶	Crystal 27.0Mhz SMD KX-9A 16pF,	KX-9A	27 MHz	±50ppm
12.88799	Geyer格耶	Crystal 12.0Mhz 10pF SMD	KX-7	12 MHz	±30ppm
12.88756	Geyer格耶	Crystal 10.0Mhz 12pF SMD	KX-7E	26 MHz	±50ppm
12.8877	Geyer格耶	Crystal 30.0Mhz 12pF SMD	KX-7T	30 MHz	±10ppm
12.87159	進口貼片晶振	CRYSTAL 32.7680kHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87151	Geyer格耶	CRYSTAL 32.7680kHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87148	Geyer格耶	CRYSTAL 32.7680KHZ 7PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87106	Geyer格耶	CRYSTAL 32.768KHZ 7PF SMD	KX-327XST	32.768 kHz	±20ppm
12.87143	Geyer格耶	CRYSTAL 32.768KHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.8718	Geyer格耶	Crystal 32.7680kHz 9pF SMD	KX-327NHF	32.768 kHz	-0.03ppm
12.87147	Geyer格耶	CRYSTAL 32.768KHz 7pF SMD	KX-327NHT	32.768 kHz	-
12.87081	Geyer格耶	CRYSTAL 32.768KHZ 6PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87149	Geyer格耶	CRYSTAL 32.7680KHZ 9PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87156	Geyer格耶	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87154	Geyer格耶	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.8715	Geyer格耶	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHT	32.768 kHz	-0.035ppm
12.87181	Geyer格耶	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHF	32.768 kHz	-0.03ppm
12.60023	Geyer格耶	Cystal 48.0Mhz 12pF SMD	KX-7E	48 MHz	±50ppm
