515FCA200M000BAGR,思佳訊LVDS輸出振蕩器,Si515物聯網晶振

頻率：200MHZ

尺寸：5.0x3.2mm

515FCA200M000BAGR,思佳訊LVDS輸出振蕩器,Si515物聯網晶振，尺寸5.0x3.2mm，頻率200MHZ，輸出邏輯LVDS，電壓2.5V，頻率穩定性20ppm，歐美差分晶振，壓控差分晶振，VCXO壓控晶振，壓控晶體振蕩器，差分貼片晶振，石英差分晶振，差分有源晶振，差分晶體振蕩器，貼片壓控振蕩器，有源壓控晶振，高品質差分晶振，高性能差分晶振，低功耗差分晶振，低損耗差分晶振，低電壓差分晶振，低相位差分晶振，低相噪差分晶振，低抖動差分晶振，娛樂設備差分晶振，物聯網專用差分晶振，電信差分晶振，交換機差分晶振，路由器差分晶振，智能家電差分晶振，具有超高的穩定性能。

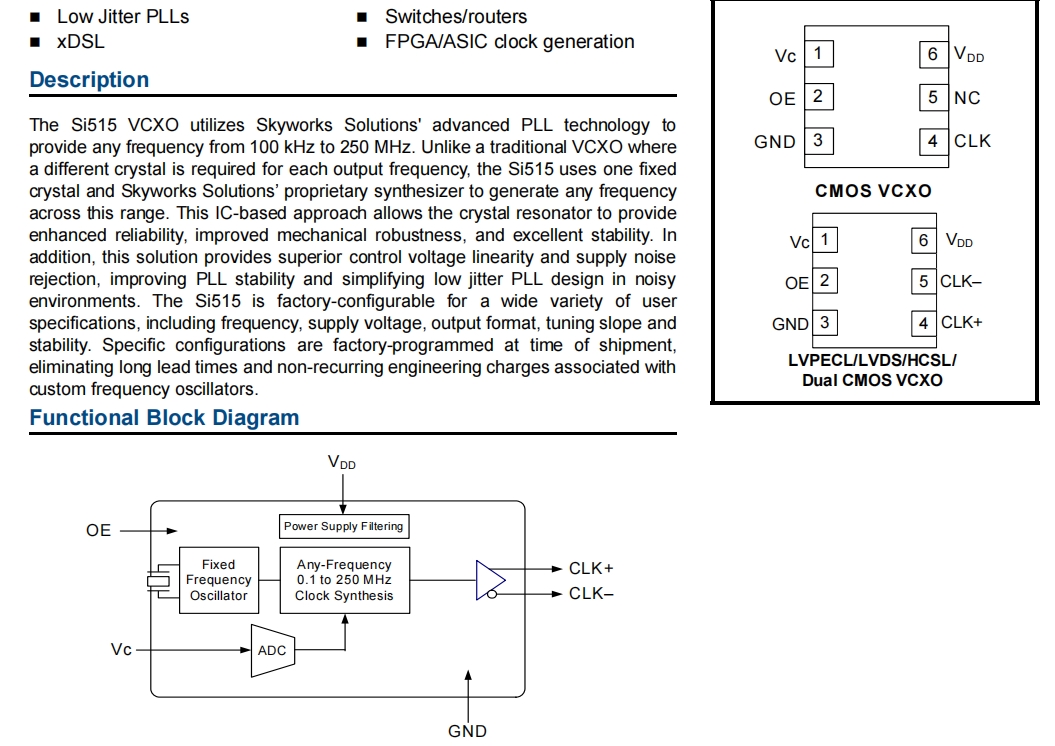

Si515 VCXO壓控差分晶振利用Skyworks Solutions的先進PLL技術提供從100kHz到250MHz的任何頻率。不同于傳統的VCXO每個輸出頻率都需要不同的晶體，Si515使用一個固定的晶體crystal和Skyworks Solutions的專有合成器，可生成任何頻率在這個范圍內。這種基于IC的方法允許晶體諧振器提供增強的可靠性、改進的機械魯棒性和優異的穩定性。515FCA200M000BAGR,思佳訊LVDS輸出振蕩器,Si515物聯網晶振.

訂購熱線：86-0755-27838351

515FCA200M000BAGR,思佳訊LVDS輸出振蕩器,Si515物聯網晶振 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Supply Voltage	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	24	29	mA
		LVDS (output enabled)	—	22	26	mA
		LVPECL (output enabled)	—	42	46	mA
		HCSL (output enabled)	—	44	47	mA
		Tristate (output disabled)	—	—	22	mA
OE “1” Setting	VIH	See Note	0.80 x V DD	—	—	V
OE “0” Setting	VIL	See Note	—	—	0.20 x V DD	V
OE Internal Pull-Up/ Pull-Down Resistor*	RI		—	45	—	kΩ
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Control Voltage Range

0.1 x V DD

V DD/2

0.9 x V DD

Control Voltage Tuning Slope
(10 to 90% V DD)

Positive slope,
ordering option

60, 90, 120, 150

ppm/V

Kv Variation

Kv_var

—

±10

Control Voltage Linearity

LVC

BSL

–5

±1

Modulation Bandwidth

—

kHz

Vc Input Impedance

Z VC

—

100

—

kΩ

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

200

MHz

Temperature Stability

TA = –40 to +85 oC

–20

—

+20

ppm

Aging

Frequency drift over 10 year life

—

±8.5

ppm

Minimum Absolute Pull Range

APR

Ordering option

±30, ±50,±80, ±100

ppm

Startup Time

TSU

Minimum V DD to output fre-
quency (FO) within specification

—

Disable Time

FO > 10 MHz

—

µs

FO< 10 MHz

µs

Enable Time

FO > 10 MHz

—

µs

FO< 10 MHz

µs

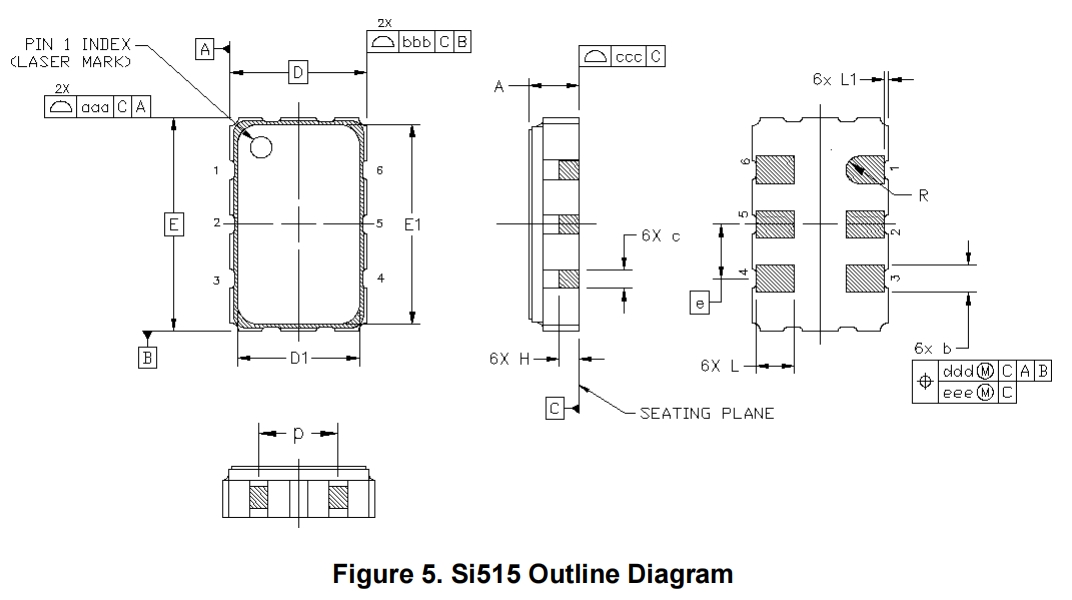

515FCA200M000BAGR,思佳訊LVDS輸出振蕩器,Si515物聯網晶振 尺寸圖

515FCA200M000BAGR,思佳訊LVDS輸出振蕩器,Si515物聯網晶振

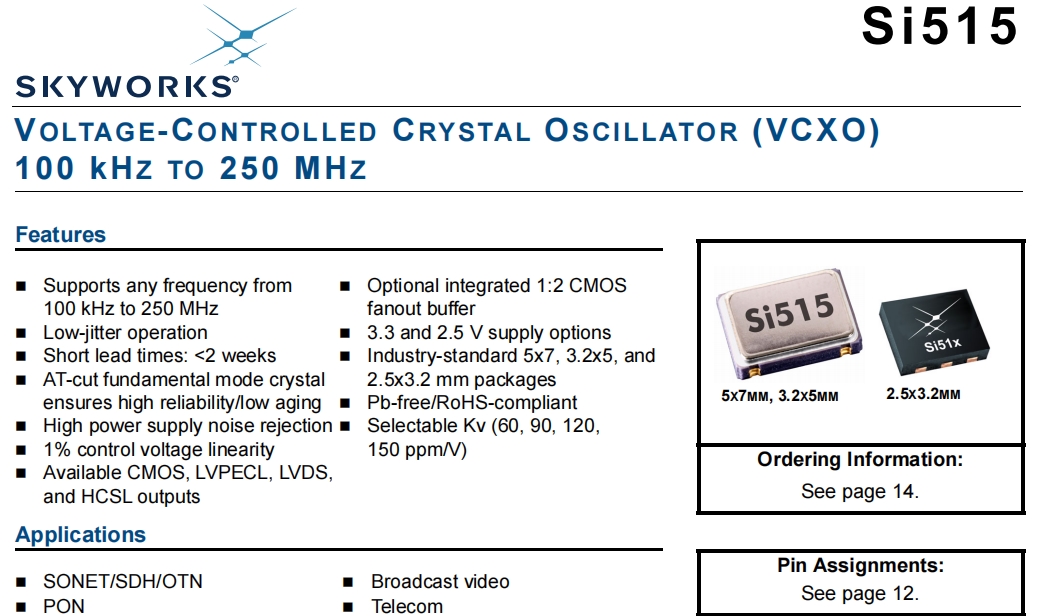

OSC晶振產品特點：

支持來自的任何頻率100kHz至250MHz

低抖動操作

交付周期短：<2周

AT切基模晶體確保高可靠性/低老化

高電源噪聲抑制

1%控制電壓線性

可用CMOS、LVPECL、LVDS，和HCSL輸出

可選集成1:2 CMOS扇出緩存

3.3和2.5 V電源選項

行業標準5x7、3.2x5和2.5x3.2 mm包裝

無鉛/符合RoHS

可選擇的Kv（60、90、120，150 ppm/V）

Mfr Part #	Mfr	Description	Series	Frequency	Output
515ACA156M250CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVPECL
515BCA156M250CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVDS
515BDA156M250CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVDS
515BCA148M500CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	148.5 MHz	LVDS
515BCA148M350CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	148.35 MHz	LVDS
515BAA004636BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	167.33165 MHz	LVDS
515BAA155M520CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	155.52 MHz	LVDS
515AAA174M687BAGR	Skyworks有源晶振	XTAL OSC VCXO 174.6870MHZ LVPECL	Si515	174.687 MHz	LVPECL
515AAA174M703BAGR	Skyworks有源晶振	XTAL OSC VCXO 174.7030MHZ LVPECL	Si515	174.703 MHz	LVPECL
515ABB212M500BAGR	Skyworks有源晶振	XTAL OSC VCXO 212.5000MHZ LVPECL	Si515	212.5 MHz	LVPECL
515ABB250M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 250.0000MHZ LVPECL	Si515	250 MHz	LVPECL
515ACA250M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 250.0000MHZ LVPECL	Si515	250 MHz	LVPECL
515BAA000123BAGR	Skyworks有源晶振	XTAL OSC VCXO 123.0000KHZ LVDS	Si515	123 kHz	LVDS
515BCA180M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 180.0000MHZ LVDS	Si515	180 MHz	LVDS
515FBA180M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 180.0000MHZ LVDS	Si515	180 MHz	LVDS
515FCA200M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 200.0000MHZ LVDS	Si515	200 MHz	LVDS
515FCA212M500BAGR	Skyworks有源晶振	XTAL OSC VCXO 212.5000MHZ LVDS	Si515	212.5 MHz	LVDS
515ACA200M000BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	200 MHz	LVPECL
515ACA200M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	200 MHz	LVPECL
515ACA204M800CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	204.8 MHz	LVPECL
515BCA240M000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	240 MHz	LVDS
515AAA200M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	200 MHz	LVPECL
515AAA161M132BAG	Skyworks有源晶振	XTAL OSC VCXO 161.1320MHZ LVPECL	Si515	161.132 MHz	LVPECL
515AAB156M250BAG	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVPECL	Si515	156.25 MHz	LVPECL
515ABB155M520BAG	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVPECL	Si515	155.52 MHz	LVPECL
515ACA000292BAG	Skyworks有源晶振	XTAL OSC VCXO 292.0000KHZ LVPECL	Si515	292 kHz	LVPECL
515ACB155M520BAG	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVPECL	Si515	155.52 MHz	LVPECL
515BAA000108BAG	Skyworks有源晶振	XTAL OSC VCXO 108.0000KHZ LVDS	Si515	108 kHz	LVDS
515BAA155M520BAG	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVDS	Si515	155.52 MHz	LVDS
515BAA156M250BAG	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVDS	Si515	156.25 MHz	LVDS
515BBA155M520BAG	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVDS	Si515	155.52 MHz	LVDS
515BBA156M250BAG	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVDS	Si515	156.25 MHz	LVDS
515BBB153M600BAG	Skyworks有源晶振	XTAL OSC VCXO 153.6000MHZ LVDS	Si515	153.6 MHz	LVDS
515BCA135M000BAG	Skyworks有源晶振	XTAL OSC VCXO 135.0000MHZ LVDS	Si515	135 MHz	LVDS
515BDA153M600BAG	Skyworks有源晶振	XTAL OSC VCXO 153.6000MHZ LVDS	Si515	153.6 MHz	LVDS
515BDA156M250BAG	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVDS	Si515	156.25 MHz	LVDS
515FBA148M352BAG	Skyworks有源晶振	XTAL OSC VCXO 148.3520MHZ LVDS	Si515	148.352 MHz	LVDS
515FBA148M500BAG	Skyworks有源晶振	XTAL OSC VCXO 148.5000MHZ LVDS	Si515	148.5 MHz	LVDS
515FCB135M000BAG	Skyworks有源晶振	XTAL OSC VCXO 135.0000MHZ LVDS	Si515	135 MHz	LVDS
515FBA135M000BAG	Skyworks有源晶振	XTAL OSCILLATOR	Si515	135 MHz	LVDS
515FBA135M000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	135 MHz	LVDS
515ADA131M072AAG	Skyworks有源晶振	XTAL OSC VCXO 131.0720MHZ LVPECL	Si515	131.072 MHz	LVPECL
515ACB78M0000BAG	Skyworks有源晶振	XTAL OSC VCXO 78.0000MHZ LVPECL	Si515	78 MHz	LVPECL
515BAA125M000BAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
515BAB125M000BAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
515BBA125M000BAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
515BBB125M000BAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
515BCA122M880BAG	Skyworks有源晶振	XTAL OSC VCXO 122.8800MHZ LVDS	Si515	122.88 MHz	LVDS
515BCA125M000BAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
515BCA27M0000BAG	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ LVDS	Si515	27 MHz	LVDS
515BDA26M0000BAG	Skyworks有源晶振	XTAL OSC VCXO 26.0000MHZ LVDS	Si515	26 MHz	LVDS
515BDA27M0000BAG	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ LVDS	Si515	27 MHz	LVDS
515FBB125M000BAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
515FCA125M000BAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
515BBA122M880BAG	Skyworks有源晶振	XTAL OSCILLATOR	Si515	122.88 MHz	LVDS
515BCA24M0000BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	24 MHz	LVDS
515FCB125M000BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	125 MHz	LVDS
515BCB27M0000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	27 MHz	LVDS
515ACA27M0000BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	27 MHz	LVPECL
515ACA004723CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	24.545454 MHz	LVPECL
515BCB100M000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	100 MHz	LVDS
515BAA100M000CAG	Skyworks晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	100 MHz	LVDS
515BCB25M0000BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	25 MHz	LVDS
515ACA100M000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	100 MHz	LVPECL
515ACA125M000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	125 MHz	LVPECL
515BCA100M000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	100 MHz	LVDS
515ACAM457000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	457 kHz	LVPECL
515ACA122M880CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	122.88 MHz	LVPECL
515BCA10M0000BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	10 MHz	LVDS
515ACA10M0000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	10 MHz	LVPECL
515BCA122M880CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	122.88 MHz	LVDS
515ACA100M000BAG	Skyworks有源晶振	XTAL OSC VCXO 100.0000MHZ LVPECL	Si515	100 MHz	LVPECL
515ACA61M4400BAG	Skyworks有源晶振	XTAL OSC VCXO 61.4400MHZ LVPECL	Si515	61.44 MHz	LVPECL
515AAA161M132BAGR	Skyworks有源晶振	XTAL OSC VCXO 161.1320MHZ LVPECL	Si515	161.132 MHz	LVPECL
515AAB156M250BAGR	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVPECL	Si515	156.25 MHz	LVPECL
515ABB155M520BAGR	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVPECL	Si515	155.52 MHz	LVPECL
515ACA000292BAGR	Skyworks有源晶振	XTAL OSC VCXO 292.0000KHZ LVPECL	Si515	292 kHz	LVPECL
515ACB155M520BAGR	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVPECL	Si515	155.52 MHz	LVPECL
515BAA000108BAGR	Skyworks有源晶振	XTAL OSC VCXO 108.0000KHZ LVDS	Si515	108 kHz	LVDS
515BAA155M520BAGR	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVDS	Si515	155.52 MHz	LVDS
515BAA156M250BAGR	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVDS	Si515	156.25 MHz	LVDS
515BBA155M520BAGR	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVDS	Si515	155.52 MHz	LVDS
515BBA156M250BAGR	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVDS	Si515	156.25 MHz	LVDS
515BBB153M600BAGR	Skyworks有源晶振	XTAL OSC VCXO 153.6000MHZ LVDS	Si515	153.6 MHz	LVDS
515BCA135M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 135.0000MHZ LVDS	Si515	135 MHz	LVDS
515BDA153M600BAGR	Skyworks有源晶振	XTAL OSC VCXO 153.6000MHZ LVDS	Si515	153.6 MHz	LVDS
515BDA156M250BAGR	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVDS	Si515	156.25 MHz	LVDS
515FBA148M352BAGR	Skyworks有源晶振	XTAL OSC VCXO 148.3520MHZ LVDS	Si515	148.352 MHz	LVDS
515FBA148M500BAGR	Skyworks有源晶振	XTAL OSC VCXO 148.5000MHZ LVDS	Si515	148.5 MHz	LVDS
515FCB135M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 135.0000MHZ LVDS	Si515	135 MHz	LVDS
515FBA135M000BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	135 MHz	LVDS
515FBA135M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	135 MHz	LVDS
515BAA004636BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	167.33165 MHz	LVDS
515ACA156M250CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVPECL
515BCA156M250CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVDS
515BAA155M520CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	155.52 MHz	LVDS
515BCA148M500CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	148.5 MHz	LVDS
515BDA156M250CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVDS
515BCA148M350CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	148.35 MHz	LVDS
515ACA77M7600AAG	Skyworks有源晶振	XTAL OSC VCXO 77.7600MHZ LVPECL	Si515	77.76 MHz	LVPECL
515ACAM614400AAG	Skyworks有源晶振	XTAL OSC VCXO 6.1440MHZ LVPECL	Si515	6.144 MHz	LVPECL
515BCA10M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVDS	Si515	10 MHz	LVDS
515BCB70M6560AAG	Skyworks有源晶振	XTAL OSC VCXO 70.6560MHZ LVDS	Si515	70.656 MHz	LVDS
515BDA27M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ LVDS	Si515	27 MHz	LVDS
515AAA125M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVPECL	Si515	125 MHz	LVPECL
515AAA25M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ LVPECL	Si515	25 MHz	LVPECL
515AAA7M10000AAGR	Skyworks有源晶振	XTAL OSC VCXO 7.1000MHZ LVPECL	Si515	7.1 MHz	LVPECL
515ABA25M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ LVPECL	Si515	25 MHz	LVPECL
515ABA80M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 80.0000MHZ LVPECL	Si515	80 MHz	LVPECL
515ACA106M250AAGR	Skyworks有源晶振	XTAL OSC VCXO 106.2500MHZ LVPECL	Si515	106.25 MHz	LVPECL
515ACA10M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVPECL	Si515	10 MHz	LVPECL
515ACA10M7000AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.7000MHZ LVPECL	Si515	10.7 MHz	LVPECL
515ACA54M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 54.0000MHZ LVPECL	Si515	54 MHz	LVPECL
515ACAM100000AAGR	Skyworks有源晶振	XTAL OSC VCXO 100.0000KHZ LVPECL	Si515	100 kHz	LVPECL
515ACB10M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVPECL	Si515	10 MHz	LVPECL
515ACB44M1000AAGR	Skyworks有源晶振	XTAL OSC VCXO 44.1000MHZ LVPECL	Si515	44.1 MHz	LVPECL
515ADA50M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 50.0000MHZ LVPECL	Si515	50 MHz	LVPECL
515BAA125M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
515BAA25M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ LVDS	Si515	25 MHz	LVDS
