康華爾電子成立至今已有20多年,是國內數一數二的晶振廠家0755-27838351,專業研發生產銷售石英晶振,32.768K晶振,石英晶體諧振器,貼片晶振,SAW濾波器等.采用無鉛環保材料生產,具有精度穩定,小體積,重量輕等特點.國產晶振就選康華爾電子,質量好,精度高,價格優勢.
康華爾電子多年來在競爭激烈的市場中,以技術占領市場,以質量贏得客戶,是國內口碑極高的晶振供應商.并且憑借自身的努力代理臺灣進口晶振多個品牌,TXC晶振,鴻星晶振,加高晶振,亞陶晶振等.康華爾電子所提供的臺產晶振,均符合德國ROHS環保指令,具有高質量,高可靠使用特性,咨詢選購熱線0755-27838351.
日本進口晶振在國內口碑一流,高端智能產品使用晶振大都會選擇日產晶振作為首選.康華爾電子憑借自身的努力同時代理KDS晶振,愛普生晶振,精工晶體,京瓷晶振等品牌.所代理石英晶振,石英晶體振蕩器,貼片晶體均符合歐盟ROHS環保要求,具有高精度,高品質,低插損,耐高溫等特點.
康華爾電子是國內優秀的歐美進口晶振供貨商0755-27838351,多年來憑借自身的努力,獲得CTS晶振,FOX晶振,Sitime晶振,瑞康晶振等代理權限.所代理進口晶振,歐美晶振均符合歐盟ROHS環保指令,并且獲得ISO國際質量管理體系認證.市場常用進口晶振封裝型號康華爾電子均有備貨,可免費提供現貨樣品以及晶振技術解決方案.
32.768K是晶振頻率中最容易讓人記住的數字,32.768K晶振素來有時鐘晶振的稱謂,只要跟數字顯示以及時間相關的產品都少不了一款32.768K晶振.根據不同的產品需求主要分為圓柱晶振和32.768K貼片晶振.常見封裝有2x6,3x8,7.0x1.5,3.2x1.5,2.0x1.2等體積.康華爾電子提供各種32.768K晶振,音叉表晶,價格優質,咨詢熱線0755-27838351.
有源晶振是一款自身帶有電源電壓功能的石英晶體振蕩器,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍：1.8V~5 V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本W(wǎng)LAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
貼片諧振器CSM1Z-A5B2C5-60-8.0D18是微控制器和回流實踐的理想選擇，在這個以創新為主的行業里，創新型的石英貼片晶振產品，意味著更多的可能性，以及能夠被廣大用戶識別，這也是一種品牌的力量，Cardinal作為一家杰出的晶振品牌供應商，一直以來都積極培養自身的創新能力，經過幾十年的積累，現今有了爆發式的增長，開發系列具備創新的產品，憑借著出色的性能，精湛的工藝，得到業界公認為最佳創意之王。
| 歐美晶振原廠編碼 | 廠家 | 參數 | 型號 | 頻率 | 頻率穩定度 | 工作溫度 |
| CSM1Z-A0B2C3-50-28.63636D18 | Cardinal晶振 | CRYSTAL 28.63636MHZ 18PF SMD | CSM1 | 28.63636MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-60-9.216D18 | Cardinal晶振 | CRYSTAL 9.2160MHZ 18PF SMD | CSM1 | 9.216MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-120-6.0D18 | Cardinal晶振 | CRYSTAL 6.0000MHZ 18PF SMD | CSM1 | 6MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-26.0D18-F | Cardinal晶振 | CRYSTAL 26.0000MHZ 18PF SMD | CSM4 | 26MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A5B2C5-120-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM1 | 7.3728MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-18.0D18 | Cardinal晶振 | CRYSTAL 18.0000MHZ 18PF SMD | CSM1 | 18MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CSM1 | 24MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CSM1 | 10MHz | ±50ppm | -10°C ~ 60°C |
| CSM4Z-A2B3C3-180-4.0D18 | Cardinal晶振 | CRYSTAL 4.0000MHZ 18PF SMD | CSM4 | 4MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A5B2C5-150-4.9152D18 | Cardinal晶振 | CRYSTAL 4.9152MHZ 18PF SMD | CSM1 | 4.9152MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-60-9.8304D18 | Cardinal晶振 | CRYSTAL 9.8304MHZ 18PF SMD | CSM4 | 9.8304MHz | ±30ppm | -40°C ~ 85°C |
| CSM1-A1B2C3-70-14.7456D20 | Cardinal晶振 | CRYSTAL 14.7456MHZ 20PF SMD | CSM1 | 14.7456MHz | ±50ppm | -10°C ~ 70°C |
| CSM1-A5B2C5-180-3.579545D18 | Cardinal晶振 | CRYSTAL 3.579545MHZ 18PF SMD | CSM1 | 3.579545MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CSM1 | 12MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-150-5.0D18 | Cardinal晶振 | CRYSTAL 5.0000MHZ 18PF SMD | CSM1 | 5MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-11.0592D18 | Cardinal晶振 | CRYSTAL 11.0592MHZ 18PF SMD | CSM4 | 11.0592MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A0B2C3-80-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CSM1 | 12MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-11.0592D18 | Cardinal晶振 | CRYSTAL 11.0592MHZ 18PF SMD | CSM1 | 11.0592MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C5-60-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CSM1 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-30-25.0D20 | Cardinal晶振 | CRYSTAL 25.0000MHZ 20PF SMD | CSM1 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A3B1C3-200-3.6864D18 | Cardinal晶振 | CRYSTAL 3.6864MHZ 18PF SMD | CSM1 | 3.6864MHz | ±100ppm | -55°C ~ 125°C |
| CSM1Z-A5B2C3-60-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CSM1 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CSM4 | 16MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM4 | 7.3728MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A5B2C3-40-13.0D18 | Cardinal晶振 | CRYSTAL 13.0000MHZ 18PF SMD | CSM1 | 13MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX5 | 27MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CRYSTAL 24.5760MHZ 18PF SMD | CX5 | 24.576MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -10°C ~ 70°C |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -10°C ~ 60°C |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CX5 | 10MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-1966080D18 | Cardinal晶振 | CRYSTAL 19.6608MHZ 18PF SMD | CX532 | 19.6608MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-33.0D18 | Cardinal晶振 | CRYSTAL 33.0000MHZ 18PF SMD | CX532 | 33MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-14.7456D18 | Cardinal晶振 | CRYSTAL 17.7456MHZ 18PF SMD | CX532 | 14.7456MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX532 | 12MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-50.0D18 | Cardinal晶振 | CRYSTAL 50.0000MHZ 18PF SMD | CX532 | 50MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-30.0D18 | Cardinal晶振 | CRYSTAL 30.0000MHZ 18PF SMD | CX532 | 30MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -20°C ~ 70°C |
| CX532AZ-A5B2C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CX532Z-A5B3C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX5 | 25MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX532 | 8MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A0B2C3-70-14.7456D18 | Cardinal晶振 | CRYSTAL 14.7456MHZ 18PF SMD | CSM1 | 14.7456MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-17.734475D18 | Cardinal晶振 | CRYSTAL 17.734475MHZ 18PF SMD | CSM1 | 17.734475MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A1B2C3-200-3.6864D20 | Cardinal晶振 | CRYSTAL 3.6864MHZ 20PF SMD | CSM1 | 3.6864MHz | ±50ppm | -10°C ~ 70°C |
| CSM1Z-A0B2C3-50-18.432D18 | Cardinal晶振 | CRYSTAL 18.4320MHZ 18PF SMD | CSM1 | 18.432MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-40-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CSM1 | 16MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-200-3.579545D18 | Cardinal晶振 | CRYSTAL 3.579545MHZ 18PF SMD | CSM1 | 3.579545MHz | ±50ppm | -10°C ~ 70°C |
| CSM1Z-A0B2C3-50-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CSM1 | 20MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C5-150-4.0D18 | Cardinal晶振 | CRYSTAL 4.0000MHZ 18PF SMD | CSM1 | 4MHz | ±50ppm | -20°C ~ 70°C |

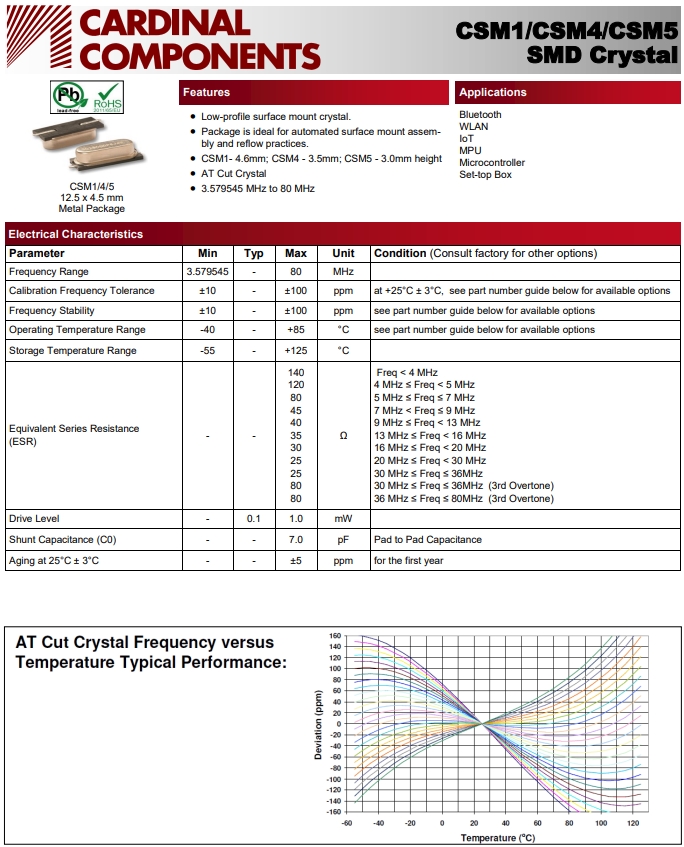

貼片諧振器CSM1Z-A5B2C5-60-8.0D18是微控制器和回流實踐的理想選擇，產品特點：低輪廓表面安裝石英晶體。包裝是自動化表面貼裝組裝和回流實踐的理想選擇。CSM1- 4.6mm;CSM4 - 3.5mm;CSM5 - 3.0mm高度，AT切割水晶，3.579545 MHz~80MHz.產品主要應用范圍：藍牙，無線局域網，物聯網，微控制器，單片機，機頂盒.
