MG7050HAN差分振蕩器,X1M0004310004,EPSON晶振,6G無線通信晶振

頻率：100MHZ

尺寸：7.0*5.0mm

MG7050HAN差分振蕩器,X1M0004310004,EPSON晶振,6G無線通信晶振，尺寸為7.0*5.0mm,頻率為100MHZ，支持輸出HCSL，差分石英晶振，OSC晶振，有源晶體振蕩器，日本愛普生晶振，SPXO晶體振蕩器，低抖動差分振蕩器，低耗能差分振蕩器，高頻差分晶振，本產品是利用鋸波諧振器的基本振蕩的HCSL輸出的高頻振蕩器。這實現了頻率為100~200MHz的低抖動和低噪聲。

差分貼片晶振產品非常適用于服務器、存儲等參考時鐘，以及6G無線通信，智能家居，儀器設備，藍牙模塊，光通信，交換機等領域。MG7050HAN差分振蕩器,X1M0004310004,EPSON晶振,6G無線通信晶振.

訂購熱線：86-0755-27838351

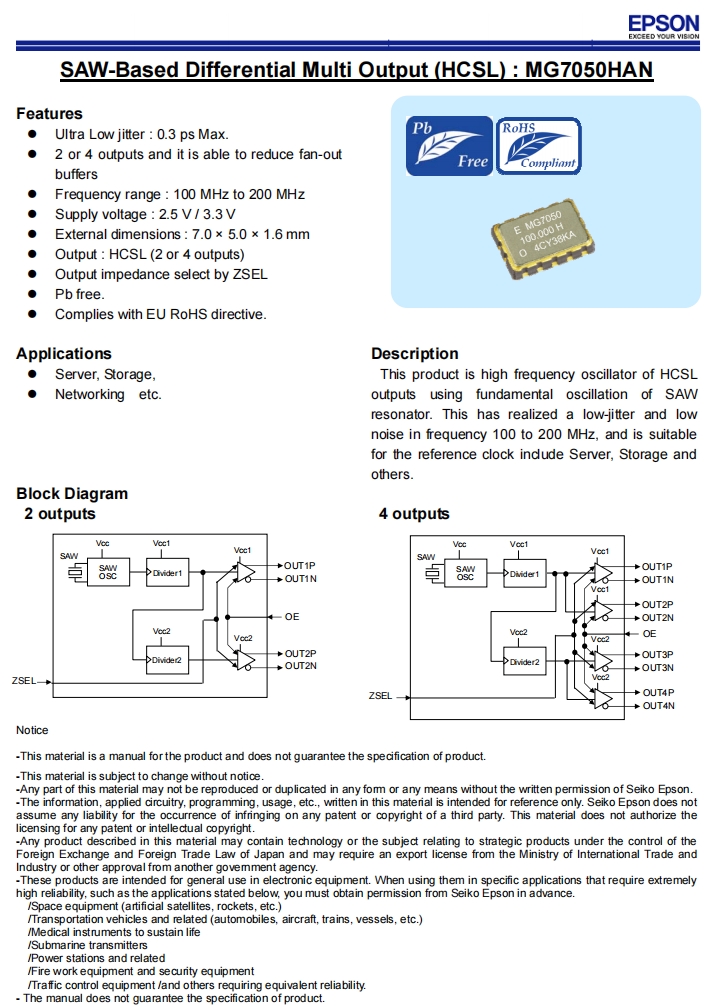

MG7050HAN差分振蕩器,X1M0004310004,EPSON晶振,6G無線通信晶振 參數表

1) Absolute maximum ratings

Parameter

Symbol

Unit

Min.

Typ.

Max

Notes

Supply voltage

VCC

-0.5

+4.0

Storage temperature

TSTG

。C

-55

+125

Store as bare product after packing

Input voltage

VIN

-0.5

VCC+0.5

2) Operating conditions

Parameter

Symbol

Unit

Min.

Typ.

Max

Notes

Supply voltage

VCC

2.97

3.3

3.63

Part C

Vcc, Vcc1, Vcc2
need same voltage

2.375

2.5

2.625

Part D

Output frequency

MHz

100

Operating temperature
range

Tuse

°C

+70

Part A

-20

+70

Part B

-5

+85

Part D

Output load condition

ZSEL=HIGH

ZSEL=LOW

L_HCSL

ZSEL=HIGH

42.2

ZSEL=LOW

3) Frequency characteristics

Parameter

Symbol

Unit

Min.

Typ.

Max

Notes

Frequency tolerance

f_tol

× 10-6

-50

+50

Part J

-100

+100

Part L

Frequency aging

f_age

× 10-6

-10

+10

Part N First year、25°C

Include on frequency tolerance

Part A *1 10 years、25°C

Parameter	Symbol	Unit	Min.	Typ.	Max	Notes
Oscillation start up time	T_str	ms	-	5	10
Current consumption	ICC	mA	-	60	90	VCC=3.3V、2-outputs		OE= VCC、 with output load
			-	100	136	VCC=3.3V、4-outputs
			-	55	84	VCC=2.5V、2-outputs
			-	95	128	VCC=2.5V、4-outputs
Disable current	I_dis	mA	-	12	25	VCC=3.3V、2-outputs		OE=GND
				16	30	VCC=3.3V、4-outputs
				11	23	VCC=2.5V、2-outputs
			-	15	28	VCC=2.5V、4-outputs
Rise skew rate	Rr	V/ns	1	-	4	at outputs crossing point
Fall skew rate	Rf	V/ns	1	-	4	at outputs crossing point
Symmetry	SYM	%	45	50	55
High output voltage	VOH	V	0.66	-	0.85	DC characteristics
Low output voltage	VOL	V	-0.15	0	+0.15	DC characteristics
High input voltage	VIH	V	70 %Vcc	-	Vcc+0.3	OE, ZSEL terminal
Low Input voltage	VIL	V	-0.3	-	30 %Vcc	OE, ZSEL terminal
Input current	IIH	μA	-	-	2	VIN=Vcc, OE, ZSEL terminal
	IIL		-60	-	-20	VCC=3.3V	VIN=GND
			-45	-	-15	VCC=2.5V
Disable delay time	tpxz	ns	-	-	100	OE terminal “H” → “L”
Enable delay time	tpzx	ns	-	-	100	OE terminal “L” → “H”
Skew	tskew	ps	-	20	50	ZSEL=HIGH
Phase Jitter *2	tPJ	ps	-	0.16(0.19)	0.3	f0=100MHz, Vcc=3.3V(2.5V)
			-	0.15(0.18)		f0=125MHz, Vcc=3.3V(2.5V)
			-	0.13(0.16)		f0=156.25MHz, Vcc=3.3V(2.5V)
			-	0.12(0.14)		f0=200MHz, Vcc=3.3V(2.5V)
*2 Offset frequency: 12 kHz to 20 MHz

MG7050HAN差分振蕩器,X1M0004310004,EPSON晶振,6G無線通信晶振 尺寸圖

有源晶振產品特性：
