當前位置：首頁 » 歐美晶振 » renesas瑞薩晶振 » XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器

prevnext

XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器

頻率：200MHZ

尺寸：3.2x2.5mm

XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器，尺寸3.2x2.5mm，頻率200MHZ，電壓2.5V，輸出邏輯LVDS，LVDS輸出晶振，六腳差分晶振，差分晶體振蕩器，3225mm差分晶振，SMD差分晶振，OSC差分晶振，有源差分晶體振蕩器，低耗能差分晶振，低抖動差分晶振，低相噪差分晶振，低電壓壓控晶振，低相位差分晶振，低功耗差分晶振，低耗能差分晶振，高質量差分壓晶振，具有低相位低相噪的特點。

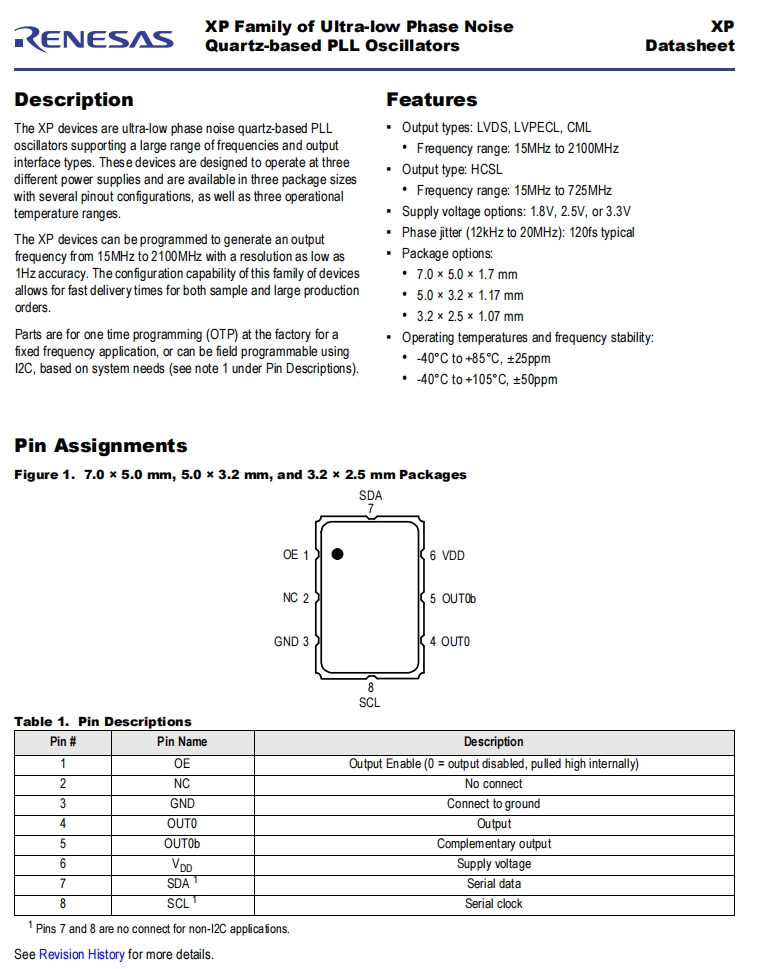

XP設備是基于超低相位噪聲石英的PLL支持大范圍頻率和輸出的有源晶體振蕩器接口類型。這些設備設計為在三不同的電源，有三種封裝尺寸具有幾種引腳輸出配置，以及三種可操作溫度范圍。XP設備可以編程以生成輸出頻率從15MHz到2100MHz，分辨率低至1Hz精度。XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器.

訂購熱線：86-0755-27838351

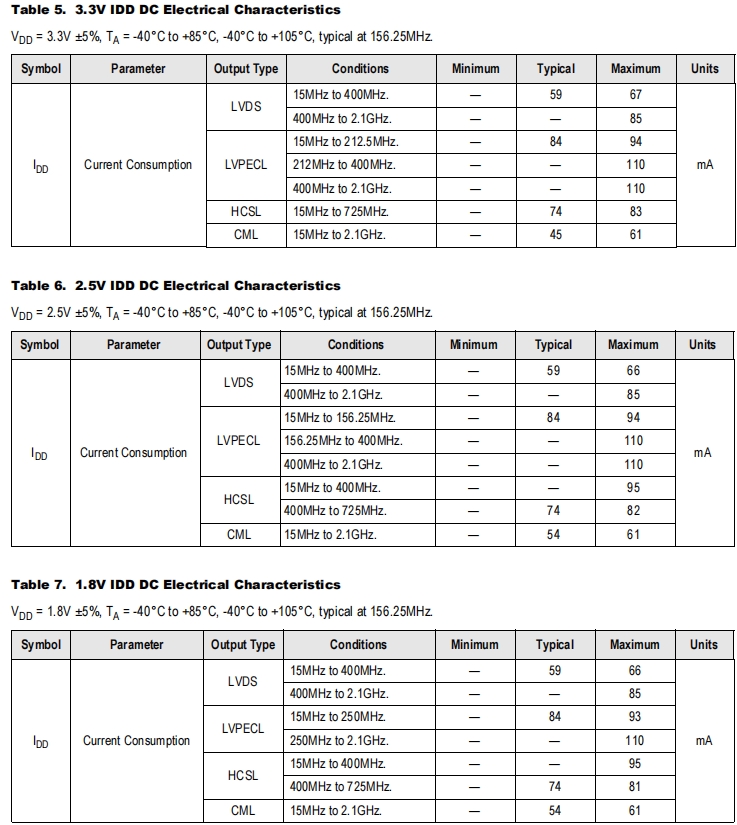

XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器 參數表

XP cans

XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器 尺寸圖

產品特性：

輸出類型：差分晶振LVDS、LVPECL、CML

頻率范圍：15MHz至2100MHz

輸出類型：HCSL

頻率范圍：15MHz至725MHz

電源電壓選項：1.8V、2.5V或3.3V

相位抖動（12kHz至20MHz）：典型值為120fs

程序包選項：

7.0×5.0×1.7毫米

5.0×3.2×1.17毫米

3.2×2.5×1.07毫米

工作溫度和頻率穩定性：

-40°C至+85°C，±25ppm

-40°C至+105°C，±50ppm

更多相關Renesas晶振型號

Mfr Part #	Mfr	Description	Series	Frequency	Output	Voltage - Supply	Frequency Stability
XPP336100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	100 MHz	LVPECL	3.3V	±25ppm
XPL536800.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	800 MHz	LVDS	3.3V	±25ppm
XPP736161.132812I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	161.132812 MHz	LVPECL	3.3V	±25ppm
XPL526200.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	200 MHz	LVDS貼片差分晶振	2.5V	±25ppm
XPP736125.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	125 MHz	LVPECL	3.3V	±25ppm
XPC736174.703000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	174.703 MHz	CML	3.3V	±25ppm
XPL316133.333333I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	133.333333 MHz	LVDS	1.8V	±25ppm
XPC316800.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	800 MHz	CML	1.8V	±25ppm
XPC336212.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	212.5 MHz	CML	3.3V	±25ppm
XPL336016.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	16 MHz	LVDS	3.3V	±25ppm
XPP316156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	LVPECL	1.8V	±25ppm
XPL536C10.937500I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	1.2109375 GHz	LVDS	3.3V	±25ppm
XPP736212.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	212.5 MHz	LVPECL	3.3V	±25ppm
XPL736156.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	156.25 MHz	LVDS	3.3V	±25ppm
XPL536148.500000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	148.5 MHz	LVDS	3.3V	±25ppm
XPP736156.253906I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	156.253906 MHz	LVPECL	3.3V	±25ppm
XPC536020.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	20 MHz	CML	3.3V	±25ppm
XPC736174.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	174 MHz	CML	3.3V	±25ppm
XPP736175.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	175 MHz	LVPECL	3.3V	±25ppm
XPL736148.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	148.5 MHz	LVDS	3.3V	±25ppm
XPL336148.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	148.5 MHz	LVDS	3.3V	±25ppm
XPL336156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	LVDS	3.3V	±25ppm
XPL336125.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	125 MHz	LVDS	3.3V	±25ppm
XPL316050.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	50 MHz	LVDS	1.8V	±25ppm
XPP736100.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	100 MHz	LVPECL	3.3V	±25ppm
XPC736625.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	625 MHz	CML	3.3V	±25ppm
XPP736106.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	106.25 MHz	LVPECL	3.3V	±25ppm
XPL316032.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	32 MHz	LVDS	1.8V	±25ppm
XPL516156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	156.25 MHz	LVDS	1.8V	±25ppm
XPP735156.250005I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	156.250005 MHz	LVPECL	3.3V	±50ppm
XPP736122.880000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	122.88 MHz	LVPECL	3.3V	±25ppm
XPN336078.125000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	78.125 MHz	HCSL	3.3V	±25ppm
XPP736124.992000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	124.992 MHz	LVPECL	3.3V	±25ppm
XPL336100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	100 MHz	LVDS	3.3V	±25ppm
XPL736125.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	125 MHz	LVDS	3.3V	±25ppm
XPC316156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	CML	1.8V	±25ppm
XPL536148.163548I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	148.163548 MHz	LVDS	3.3V	±25ppm
XPL736300.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	300 MHz	LVDS	3.3V	±25ppm
XPL316156.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156 MHz	LVDS	1.8V	±25ppm
XPL326200.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	200 MHz	LVDS	2.5V	±25ppm
XPP736200.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	200 MHz	LVPECL	3.3V	±25ppm
XPL526312.500000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	312.5 MHz	LVDS	2.5V	±25ppm
XPL336040.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	40 MHz	LVDS	3.3V	±25ppm
XPP526156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	156.25 MHz	LVPECL	2.5V	±25ppm
XPN326312.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	312.5 MHz	HCSL	2.5V	±25ppm
XPC736100.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	100 MHz	CML	3.3V	±25ppm
XPN336025.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	25 MHz	HCSL	3.3V	±25ppm
XPM736625.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	625 MHz	-	3.3V	±25ppm
XPN336100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	100 MHz	HCSL	3.3V	±25ppm
XPL736800.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	800 MHz	LVDS	3.3V	±25ppm
XPP726212.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	212.5 MHz	LVPECL	2.5V	±25ppm
XPL536070.656000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	70.656 MHz	LVDS	3.3V	±25ppm
XPP736250.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	250 MHz	LVPECL	3.3V	±25ppm
XPP726312.510900I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	312.5109 MHz	LVPECL	2.5V	±25ppm
XPP736915.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	915 MHz	LVPECL	3.3V	±25ppm
XPP336830.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	830 MHz	LVPECL	3.3V	±25ppm
XPN336156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	HCSL	3.3V	±25ppm
XPN316161.132812I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	161.132812 MHz	HCSL	1.8V	±25ppm
XPP336156.253906I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.253906 MHz	LVPECL	3.3V	±25ppm
XPL316033.333333I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	33.333333 MHz	LVDS	1.8V	±25ppm
XPN536156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	156.25 MHz	HCSL	3.3V	±25ppm
XPP336250.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	250 MHz	LVPECL	3.3V	±25ppm
XPN316100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	100 MHz	HCSL	1.8V	±25ppm
XPL316080.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	80 MHz	LVDS	1.8V	±25ppm
XPL336200.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	200 MHz	LVDS	3.3V	±25ppm
XPL336644.531250I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	644.53125 MHz	LVDS	3.3V	±25ppm
XPL326156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	LVDS	2.5V	±25ppm
XPP736161.132580I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	161.13258 MHz	LVPECL	3.3V	±25ppm
XPP726445.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	445.5 MHz	LVPECL	2.5V	±25ppm
XPL326500.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	500 MHz	LVDS	2.5V	±25ppm
XPL336830.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	830 MHz	LVDS	3.3V	±25ppm
XPP726160.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	160 MHz	LVPECL	2.5V	±25ppm
XPL516625.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	625 MHz	LVDS	1.8V	±25ppm
XPL316322.265625I	renesas瑞薩晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	322.265625 MHz	LVDS	1.8V	±25ppm
XPP336312.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	312.5 MHz	LVPECL	3.3V	±25ppm
XPC336156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	CML	3.3V	±25ppm
XPN716156.253906I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	156.253906 MHz	HCSL	1.8V	±25ppm
XPL526156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	156.25 MHz	LVDS	2.5V	±25ppm
XPP516625.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	625 MHz	LVPECL	1.8V	±25ppm
XPL726B00.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	1.1 GHz	LVDS	2.5V	±25ppm
XPL336049.152000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	49.152 MHz	LVDS	3.3V	±25ppm
XPP336050.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	50 MHz	LVPECL	3.3V	±25ppm
XPL316026.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	26 MHz	LVDS	1.8V	±25ppm

XPL326200.000000I XP低耗能晶振 6GWIFI晶振瑞薩LVDS振蕩器
