頻率：25MHZ
尺寸：2.0x1.6mm
HELE無源諧振器,X2C025000DZ1H-U,HSX211S環保晶振,6G基站晶振，尺寸2.0x1.6mm，頻率25MHZ，臺灣加高晶振，SMD晶振，四腳貼片晶振，2016mm石英晶振，水晶振動子，石英晶體諧振器，石英貼片晶振，SMD晶體諧振器，無源晶振，石英晶振，手持式設備晶振，無線設備晶振，藍牙音響晶振，6G基站專用晶振，小型設備晶振，智能家居晶振，網絡設備晶振，平板電腦晶振，低功耗晶振，輕薄型晶振，低成本晶振，高質量晶振，具有輕薄小低成本的特點。
HELE無源諧振器,X2C025000DZ1H-U,HSX211S環保晶振,6G基站晶振，尺寸2.0x1.6mm，頻率25MHZ，臺灣加高晶振，SMD晶振，四腳貼片晶振，2016mm石英晶振，水晶振動子，石英晶體諧振器，石英貼片晶振，SMD晶體諧振器，無源晶振，石英晶振，手持式設備晶振，無線設備晶振，藍牙音響晶振，6G基站專用晶振，小型設備晶振，智能家居晶振，網絡設備晶振，平板電腦晶振，低功耗晶振，輕薄型晶振，低成本晶振，高質量晶振，具有輕薄小低成本的特點。

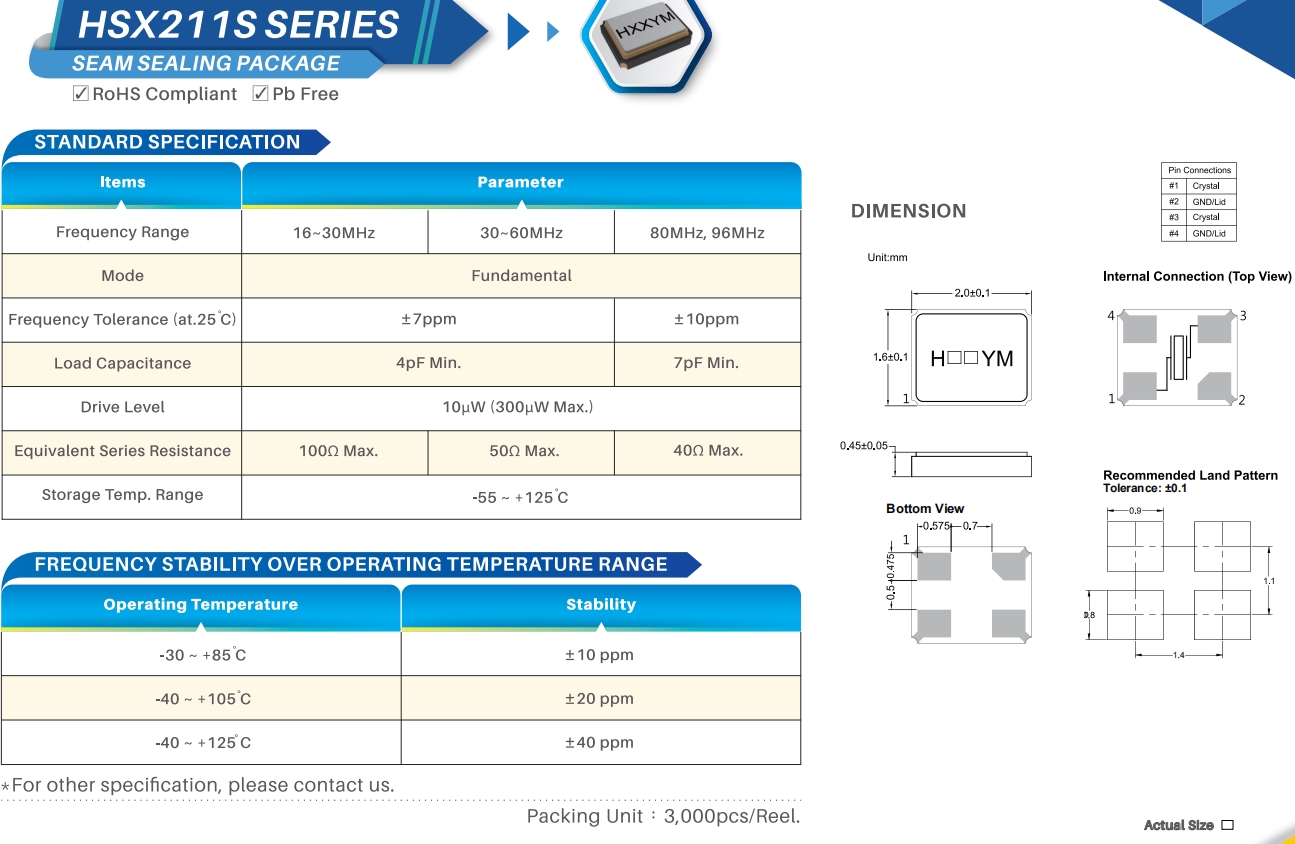

HELE無源諧振器,X2C025000DZ1H-U,HSX211S環保晶振,6G基站晶振 參數表
| TYPE | ||
| ITEM | ||
| Frequency Range | 25MHz | 30~66MHz |
| Mode | ||
| Fundamental | ||
| Frequency Tolerance | ±7ppm ~ ±50ppm (at. 25℃) , or Specify | |
| Frequency Stability over Operating Temperature | ±10ppm, or Specify | |
| Operating Temperature | ||
| -10 ~ +60 ℃, or Specify | ||
| Load Capacitance | ||
| Series, 8pF, 10pF, 12pF, or Specify | ||
| Drive Level | ||
| Equivalent Series Resistance | 100ΩMax. | 80ΩMax. |
| Storage Temp. Range | ||
| -40 ~ +125℃ | ||

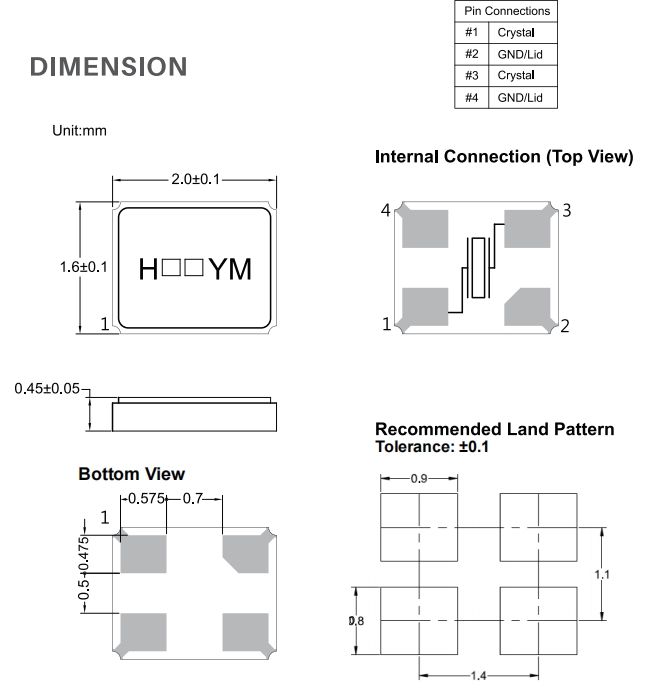

HELE無源諧振器,X2C025000DZ1H-U,HSX211S環保晶振,6G基站晶振 尺寸圖
產品特性：
超小型4焊盤SMD晶振封裝
優異的老化特性
符合RoHS標準且無鉛
| 編碼 | Series | 晶振廠家 | 描述 | 頻率 | 頻率穩定性 |
| X2B026000M81H-HS | HSX221SA | HELE加高晶振 | HSX221SA/26MHZ/8PF/7PPM/15PPM/-4 | 26.000MHZ | ±15ppm |
| X2B016000BA1H-U | HSX221SA | HELE加高晶振 | HSX221SA/16MHZ/10PF/10PPM/10PPM/ | 16.000MHZ | ±10ppm |
| X2B012000BC1H-U | HSX221SA | HELE加高晶振 | HSX221SA/12MHZ/12PF/10PPM/20PPM/ | 12.000MHZ | ±20ppm |
| X2B040000BC1H-DHZ | HSX221SA | HELE加高晶振 | HSX221SA/40MHZ/12PF/10PPM/10PPM/ | 40.000MHZ | ±10ppm |
| X2C025000DZ1H-U | HSX211S | HELE加高晶振 | HSX211S/25MHZ/6PF/20PPM/20PPM@-3 | 25.000MHZ | ±20ppm |
| X2C032000BA1H-HZ | HSX211S | HELE加高晶振 | HSX211S/32MHZ/10PF/10PPM/15PPM@- | 32.000MHZ | ±15ppm |
| X2C024000DZ1H-HU | HSX211S | HELE加高晶振 | HSX211S/24MHZ/6PF/20PPM/20PPM@-3 | 24.000MHZ | ±20ppm |
| X2C016000B81H-R | HSX211S | HELE加高晶振 | HSX211S/16MHZ/8PF/10PPM/10PPM@-2 | 16.000MHZ | ±10ppm |
| X2C026000BC1H-Z | HSX211S | HELE加高晶振 | HSX211S/26MHZ/12PF/10PPM/10PPM@- | 26.000MHZ | ±10ppm |
| X2C048000L71HH-CEHZ | HSX211S | HELE加高晶振 | HSX211S/48MHZ/11.1PF/8PPM/14PPM/ | 48.000MHZ | ±14ppm |
| X2B012000DC1H-X | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS | 12.000MHZ | ±20ppm |
| X2B016000B91H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS | 16.000MHZ | ±10ppm |
| X2B027000BC1H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS | 27.000MHZ | ±10ppm |
| X2B032000BC1H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520_4P RoHS | 32.000MHZ | - |
| X2C048000L71HA-CEHZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators 48MHz ±8ppm SMD-2016_4P RoHS | 48.000MHZ | ±8ppm |
| X2B024000BC1HA-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD_2520-4P RoHS | 24.000MHZ | - |
| X2B026000B91H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS | 26.000MHZ | ±10ppm |
| X2B026000B71HZ-HPR | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS | 26.000MHZ | ±10ppm |
| X2C026000B91H-V | HSX211S | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS | 26.000MHZ | ±10ppm |
| X2B026000B71HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±7ppm SMD-2520_4P RoHS | 26.000MHZ | ±7ppm |
| X2B040000BF1H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 40MHz ±10ppm SMD-2520_4P RoHS | 40.000MHZ | ±10ppm |
| X2B024000BCIH-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 24MHz ±10ppm SMD-2520_4P RoHS | 24.000MHZ | ±10ppm |
| X2C024000BA1H | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 24.000MHZ | ±10ppm |
| X2C024000B71H-V | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | ±10ppm |
| X2B050000BC1H-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 50.000MHZ | 10PPM |
| X2C024000FA1H-X | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | 30PPM |
| X2C016000B81H-HPU | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 16.000MHZ | 10PPM |
| X2C024000B91H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | 10PPM |
| X2C037400BG1H-U | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 37.400MHZ | 10PPM |
| X2B040000BF1H-HT | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 40.000MHZ | ±15ppm |
| X2B030000BA1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 30.000MHZ | 10PPM |
| X2B026000B91H-HR | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B038400BA1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 38.400MHZ | 10PPM |
| X2B040000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 40.000MHZ | 10PPM |
| X2B032000C81H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 32.000MHZ | ±15ppm |
| X2B012000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 12.000MHZ | 10PPM |
| X2C027120FA1H-HV | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 27.120MHZ | ±30ppm |
| X2B030000BA1H-HW | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 30.000MHZ | 10PPM |
| X2B026000B91H-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 26.000MHZ | 10PPM |
| X2C040000B91HA-Z | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 40.000MHZ | 10PPM |
| X2B026000BC1H-Z | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B016000BC1H-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 16.000MHZ | 10PPM |
| X2C016000B91H-R | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 16.000MHZ | 10PPM |
| X2B019200BZ1H-CHZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 19.200MHZ | 10PPM |
| X2C032000BA1HA-U | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | 10PPM |
| X2B026000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B026000L91H-S | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | ±8ppm |
| X2C048000L71H-CEHZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 48.000MHZ | ±8ppm |
| X2B030000FA1H-X | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 30.000MHZ | ±30ppm |
| X2C032000BC1H-R | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | 10PPM |
| X2B024000FK1H-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 24.000MHZ | ±30ppm |
| X2B026000B81H-CHZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2C038400BA1H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 38.400MHZ | 10PPM |
| X2B02863ADC1H-W | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 28.63636MHZ | ±20ppm |
| X2B032000D81H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 32.000MHZ | ±20ppm |
| X2B025000BI1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 25.000MHZ | 10PPM |
| X2C032000B81H-HS | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | ±10ppm |
| X2C026000B71H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS | 26.000MHZ | ±10ppm |
| X2C048000BA1H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 48.000MHZ | ±10ppm |
| X2BO48000BZ1H-HZ | HSX221SA-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO48000B71H-CEHZ | HSX211S-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO48000R71HA-CEHZ | HSX211S-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO40000BD1H-HZ | HSX211S-AU | HELE加高晶振 | 40.000MHZ | ||
| X2BO38400R71H-HPZ | HSX221SA-AU | HELE加高晶振 | 38.400MHZ | ||
| X2BO37400BC1H-S | HSX221SA-AU | HELE加高晶振 | 37.400MHZ | ||
| X2BO32000BC1H-HZ | HSX221SA | HELE晶振 | 32.000MHZ | ||
| X2BO30000C81H-HU | HSX221SA-AU | HELE加高晶振 | 30.000MHZ | ||
| X2CO27120FC1H-HX | HSX211S-AU | HELE加高晶振 | 27.120MHZ | ||
| X2BO27000FC1H-HX | HSX221SA | HELE加高晶振 | 27.000MHZ | ||
| X2BO19200FC1H-HX | HSX221SA | HELE加高晶振 | 19.200MHZ | ||
| X2C016000BC1H-Z | HSX211S | HELE加高晶振 | 16.000MHZ | ±10PPM | |
| X2C025000BC1H-U | HSX211S | HELE加高晶振 | 25.000MHZ | ±10ppm | |
| X2C037400BG1HA-U | HSX211S | HELE加高晶振 | 37.4.000MHZ | ±10ppm |
