當前位置：首頁 » 歐美晶振 » renesas瑞薩晶振 » 6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振

$6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振$

prevnext

6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振

頻率：156.25MHZ

尺寸：5.0x3.2mm

6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振，尺寸5.0x3.2mm，頻率156.25MHZ，電壓3.3V，輸出邏輯LVPECL，LVPECL差分貼片晶振，LVPECL差分輸出晶振，LVPECL差分晶體振蕩器，有源貼片晶振，OSC差分晶振，低耗能差分晶振，低電壓差分振蕩器，低功耗差分晶振，低抖動差分晶振，低相位差分振蕩器，低相噪差分晶振，156.25MHZ差分振蕩器，儀器設備差分晶振，6G以太網差分晶振，無線設備差分振蕩器，6G路由器專用差分晶振，小型設備專用差分晶振.

XF設備是基于石英的超低相位噪聲PLL支持大范圍頻率和輸出的振蕩器接口類型。這些設備設計為在三具有多種引腳輸出配置的不同電源作為兩個操作溫度范圍。XF設備可以編程以生成輸出頻率從15MHz到2100MHz，分辨率低至1Hz精度。該系列設備的配置功能允許快速交付樣品和大批量生產訂單。

訂購熱線：86-0755-27838351

6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振，尺寸5.0x3.2mm，頻率156.25MHZ，電壓3.3V，輸出邏輯LVPECL，LVPECL差分貼片晶振，LVPECL差分輸出晶振，LV-PECL差分晶振，LVPECL差分晶體振蕩器，有源貼片晶振，OSC差分晶振，低耗能差分晶振，低電壓差分振蕩器，低功耗差分晶振，低抖動差分晶振，低相位差分振蕩器，低相噪差分晶振，156.25MHZ差分振蕩器，儀器設備差分晶振，6G以太網差分晶振，無線設備差分振蕩器，6G路由器專用差分晶振，小型設備專用差分晶振.

XF差分貼片晶振是基于石英的超低相位噪聲PLL支持大范圍頻率和輸出的振蕩器接口類型。這些設備設計為在三具有多種引腳輸出配置的不同電源作為兩個操作溫度范圍。XF設備可以編程以生成輸出頻率從15MHz到2100MHz，分辨率低至1Hz精度。該系列設備的配置功能允許快速交付樣品和大批量生產訂單。6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振.

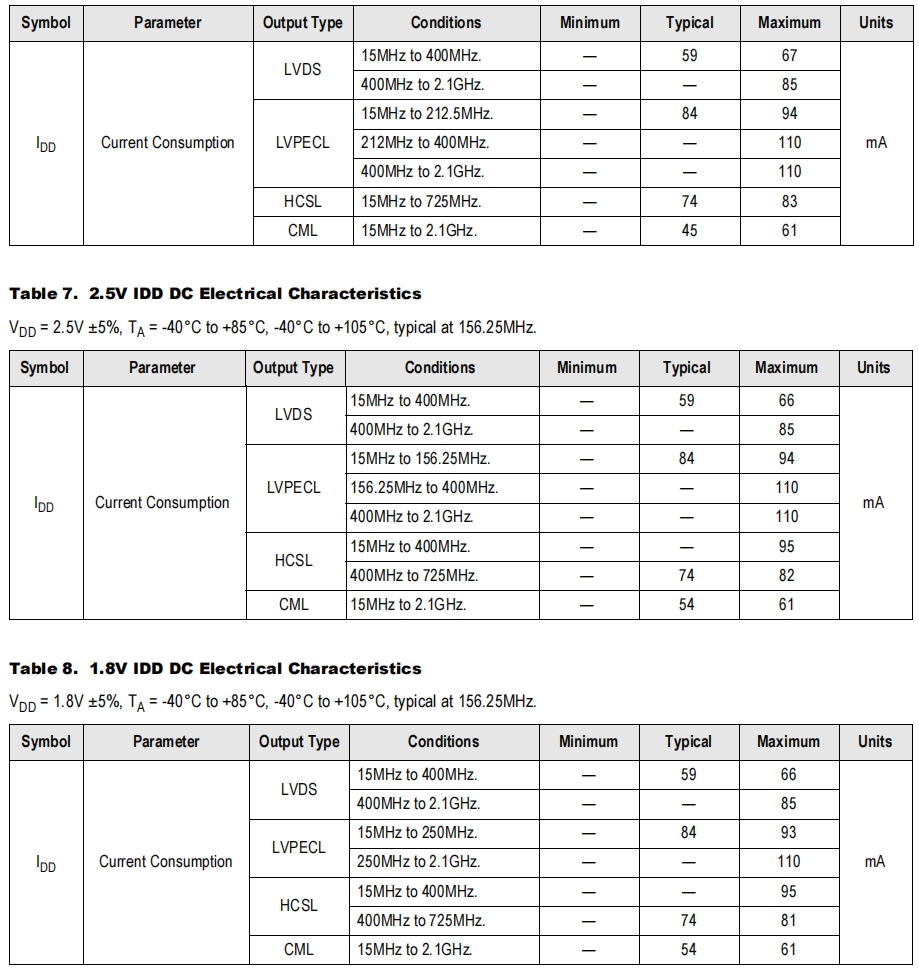

6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振 參數表

XF 參數

6G以太網晶振\XFP536156.250000I\瑞薩LVPECL晶振 尺寸圖

5032晶振產品特性：

輸出類型：LVDS、LVPECL、CML

頻率范圍：15MHz至2100MHz

輸出類型：HCSL

頻率范圍：15MHz至725MHz

電源電壓選項：1.8V、2.5V或3.3V

相位抖動（12kHz至20MHz）：典型值為120fs

程序包選項：

5.0×3.2毫米

3.2×2.5毫米

2.5×2.0毫米

工作溫度和頻率穩定性：

-40°C至+85°C，±25ppm

-40°C至+105°C，±50ppm

更多相關Renesas晶振型號

Mfr Part #	Mfr	Description	Series	Frequency	Output	Voltage - Supply
XFC236156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ CML SMD	XFC	156.25 MHz	CML	3.3V
XFP236625.000000I	Renesas晶振	XTAL OSC XO 625.0000MHZ LVPECL	XFP	625 MHz	LVPECL	3.3V
XFP236312.500000I	Renesas晶振	XTAL OSC XO 312.5000MHZ LVPECL	XFP	312.5 MHz	LVPECL	3.3V
XFP536625.000000I	Renesas晶振	625.000000 MHZ 3.3VDC LVPECL 503	XF	625 MHz	LVPECL	3.3V
XFN516100.000000I	Renesas晶振	100.000000 MHZ 1.8VDC HCSL 5032	XF	100 MHz	HCSL	1.8V
XFL526125.000000I	Renesas晶振	125.000000 MHZ 2.5VDC LVDS 5032	XF	125 MHz	LVDS	2.5V
XFP236156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XFP	156.25 MHz	LVPECL	3.3V
XFL235837.500000K	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	837.5 MHz	LVDS	3.3V
XFP235156.250000K	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	LVPECL	3.3V
XFN336100.000000I	Renesas晶振	100.000000 MHZ 3.3VDC HCSL 3225	XF	100 MHz	HCSL	3.3V
XFP336312.500000I	renesas瑞薩晶振	312.500000 MHZ 3.3VDC LVPECL 322	XF	312.5 MHz	LVPECL	3.3V
XFL336156.250000I	Renesas晶振	156.250000 MHZ 3.3VDC LVDS 3225	XF	156.25 MHz	LVDS	3.3V
XFP236148.500000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	148.5 MHz	LVPECL	3.3V
XFN236100.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	100 MHz	HCSL	3.3V
XFL516100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XF	100 MHz	LVDS	1.8V
XFL536125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XF	125 MHz	LVDS	3.3V
XFL336032.768000I	Renesas晶振	XTAL OSC XO 32.7680MHZ LVDS SMD	XF	32.768 MHz	LVDS	3.3V
XFL316125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XF	125 MHz	LVDS	1.8V
XFP526156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XF	156.25 MHz	LVPECL	2.5V
XFP536025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ LVPECL	XF	25 MHz	LVPECL	3.3V
XFL336333.330000I	Renesas晶振	XTAL OSC XO 333.3300MHZ LVDS SMD	XF	333.33 MHz	LVDS	3.3V
XFL336032.000000I	Renesas晶振	XTAL OSC XO 32.0000MHZ LVDS SMD	XF	32 MHz	LVDS	3.3V
XFL526032.000000I	Renesas晶振	XTAL OSC XO 32.0000MHZ LVDS SMD	XF	32 MHz	LVDS	2.5V
XFL336333.333333I	Renesas晶振	XTAL OSC XO 333.333333MHZ LVDS	XF	333.333333 MHz	LVDS	3.3V
XFL336125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XF	125 MHz	LVDS	3.3V
XFL516500.000000I	Renesas晶振	XTAL OSC XO 500.0000MHZ LVDS SMD	XF	500 MHz	LVDS	1.8V
XFL316300.000000I	Renesas晶振	XTAL OSC XO 300.0000MHZ LVDS SMD	XF	300 MHz	LVDS	1.8V
XFL336148.425824I	Renesas晶振	XTAL OSC XO 148.425824MHZ LVDS	XF	148.425824 MHz	LVDS	3.3V
XFL336161.132812I	Renesas晶振	XTAL OSC XO 161.132812MHZ LVDS	XF	161.132812 MHz	LVDS	3.3V
XFP336161.132812I	Renesas晶振	XTAL OS XO 161.132812MHZ LVPECL	XF	161.132812 MHz	LVPECL	3.3V
XFL536026.000000I	Renesas晶振	XTAL OSC XO 26.0000MHZ LVDS SMD	XF	26 MHz	LVDS	3.3V
XFL536100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XF	100 MHz	LVDS	3.3V
XFL336096.000000I	Renesas晶振	XTAL OSC XO 96.0000MHZ LVDS SMD	XF	96 MHz	LVDS	3.3V
XFL336048.000000I	Renesas晶振	XTAL OSC XO 48.0000MHZ LVDS SMD	XF	48 MHz	LVDS	3.3V
XFL336333.333000I	Renesas晶振	XTAL OSC XO 333.3330MHZ LVDS SMD	XF	333.333 MHz	LVDS	3.3V
XFP536156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XF	156.25 MHz	LVPECL	3.3V
XFL336450.000000I	Renesas晶振	XTAL OSC XO 450.0000MHZ LVDS SMD	XF	450 MHz	LVDS	3.3V
XFC516025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ CML SMD	XF	25 MHz	CML	1.8V
XFL316270.000000I	Renesas晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	XF	270 MHz	LVDS	1.8V
XFL336025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	XF	25 MHz	LVDS	3.3V
XFL236644.531250I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	644.53125 MHz	LVDS	3.3V
XFP216025.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	25 MHz	LVPECL	1.8V
XFL236830.078125I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	830.078125 MHz	LVDS	3.3V
XFL226156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	LVDS	2.5V
XFL236156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	LVDS	3.3V
XFN236156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	HCSL	3.3V
XFN216100.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	100 MHz	HCSL	1.8V
XFL236108.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	108 MHz	LVDS	3.3V
XFL216156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	LVDS	1.8V
XFP236161.132812I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	161.132812 MHz	LVPECL	3.3V
XFP226156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	LVPECL	2.5V
XFP216625.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	625 MHz	LVPECL	1.8V
XFL236148.500000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	148.5 MHz	LVDS	3.3V
XFN216161.132812I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	161.132812 MHz	HCSL	1.8V
XFP216156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XF	156.25 MHz	LVPECL	1.8V
XFN236025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ HCSL SMD	XF	25 MHz	HCSL	3.3V
XFC226156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ CML SMD	XF	156.25 MHz	CML	2.5V
XFL226026.000000I	Renesas晶振	XTAL OSC XO 26.0000MHZ LVDS SMD	XF	26 MHz	LVDS	2.5V
XFL216625.000000I	Renesas晶振	XTAL OSC XO 625.0000MHZ LVDS SMD	XF	625 MHz	LVDS	1.8V
XFL216397.770000I	Renesas晶振	XTAL OSC XO 397.7700MHZ LVDS SMD	XF	397.77 MHz	LVDS	1.8V
XFL216078.125000I	Renesas晶振	XTAL OSC XO 78.1250MHZ LVDS SMD	XF	78.125 MHz	LVDS	1.8V
XFC216837.500000I	Renesas晶振	XTAL OSC XO 837.5000MHZ CML SMD	XF	837.5 MHz	CML	1.8V
XFL536040.000000I	Renesas晶振	XTAL OSC XO 40.0000MHZ LVDS SMD	XF	40 MHz	LVDS	3.3V
XFP336048.000000I	Renesas晶振	XTAL OSC XO 48.0000MHZ LVPECL	XF	48 MHz	LVPECL	3.3V
XFL516156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XF	156.25 MHz	LVDS	1.8V
